Little Essentials: EMAS Multifunction Beacons
IF Series EMAS Multifunction Beacons provide bright, reliable, and flexible signalling for industrial environments. With the ability to display multiple colours from a single unit, these lamps save space while ensuring clear and consistent communication wherever you stick them.
What Makes the IF Series Special

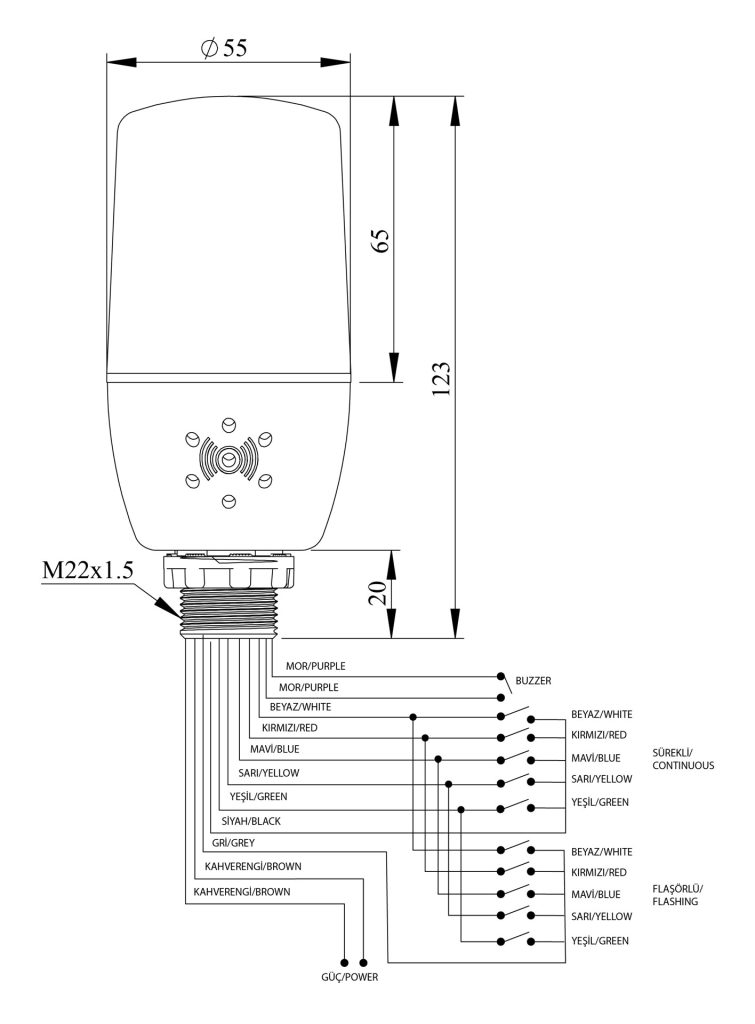

The EMAS IF Series Multicolour Constant-Key-Control LED Beacon (to use its full name) is designed to combine multiple signal functions in a single beacon. Each unit fits a 22 mm M22 panel cutout, meaning easy installation and compatibility with standard control panels. These beacons use “key control” technology, which means each colour is triggered by its own input, giving you intuitive, reliable control over which signal is displayed.

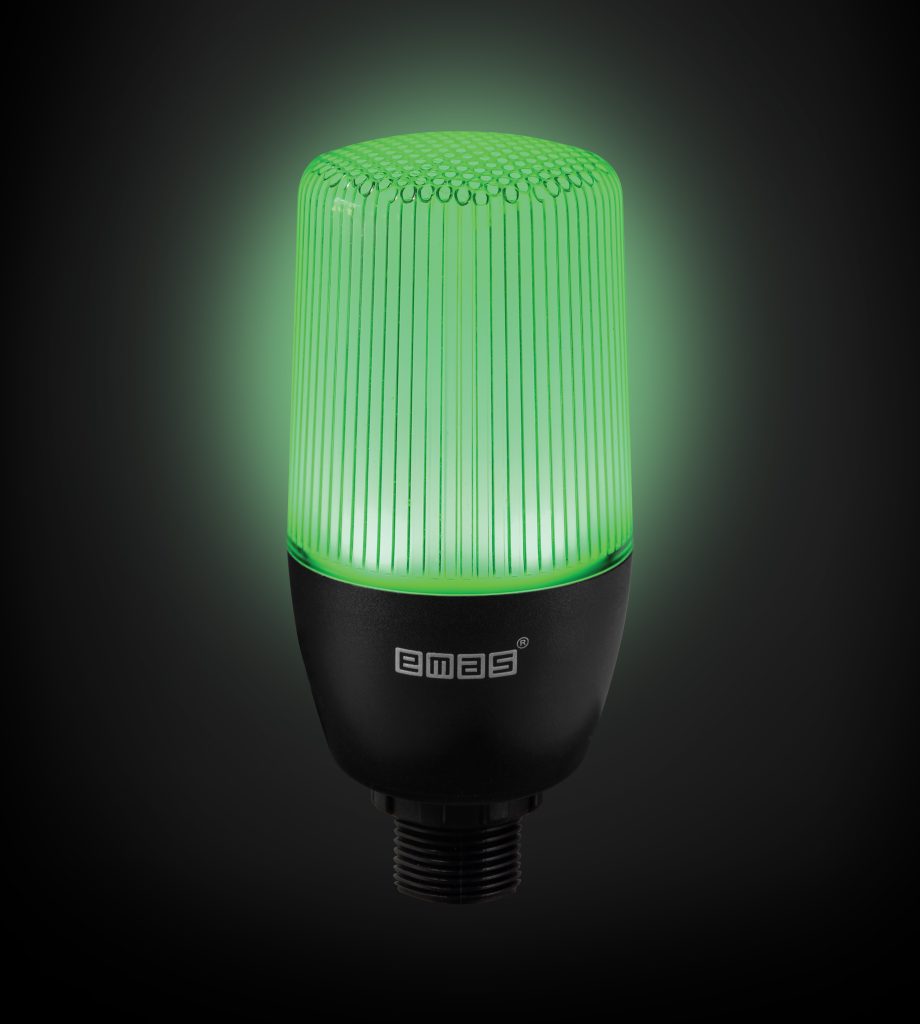

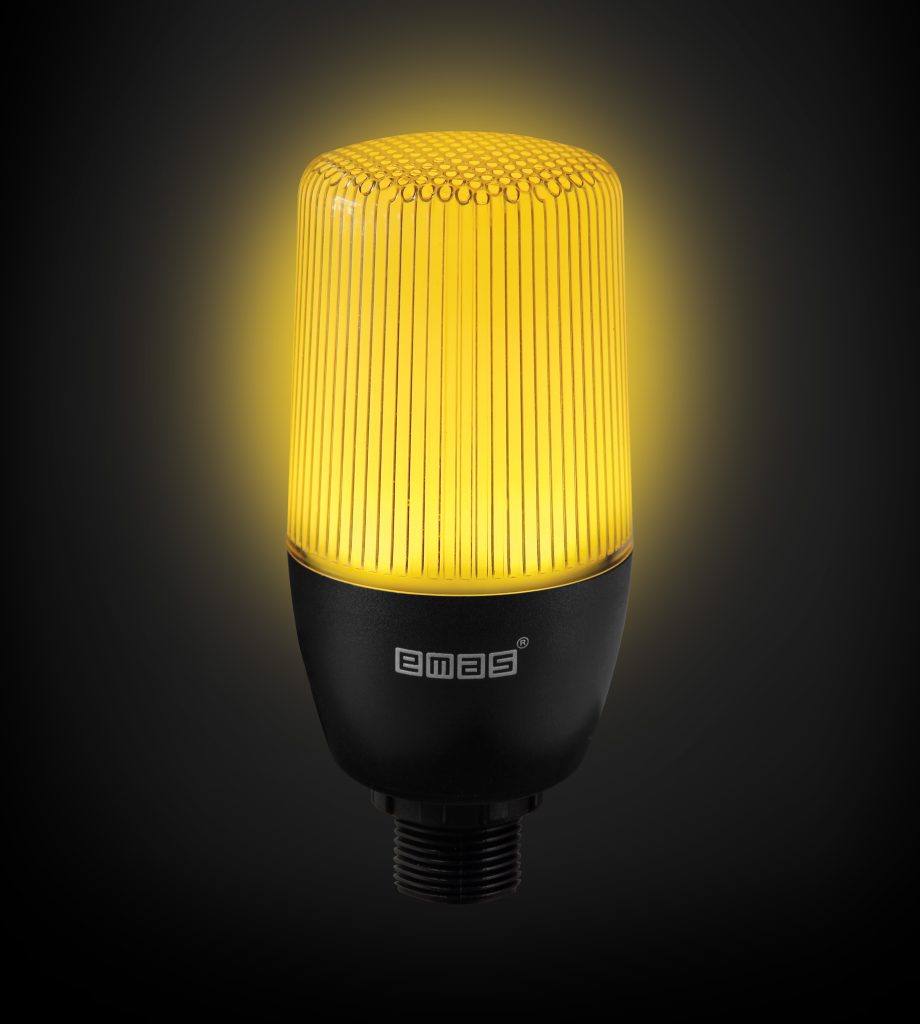

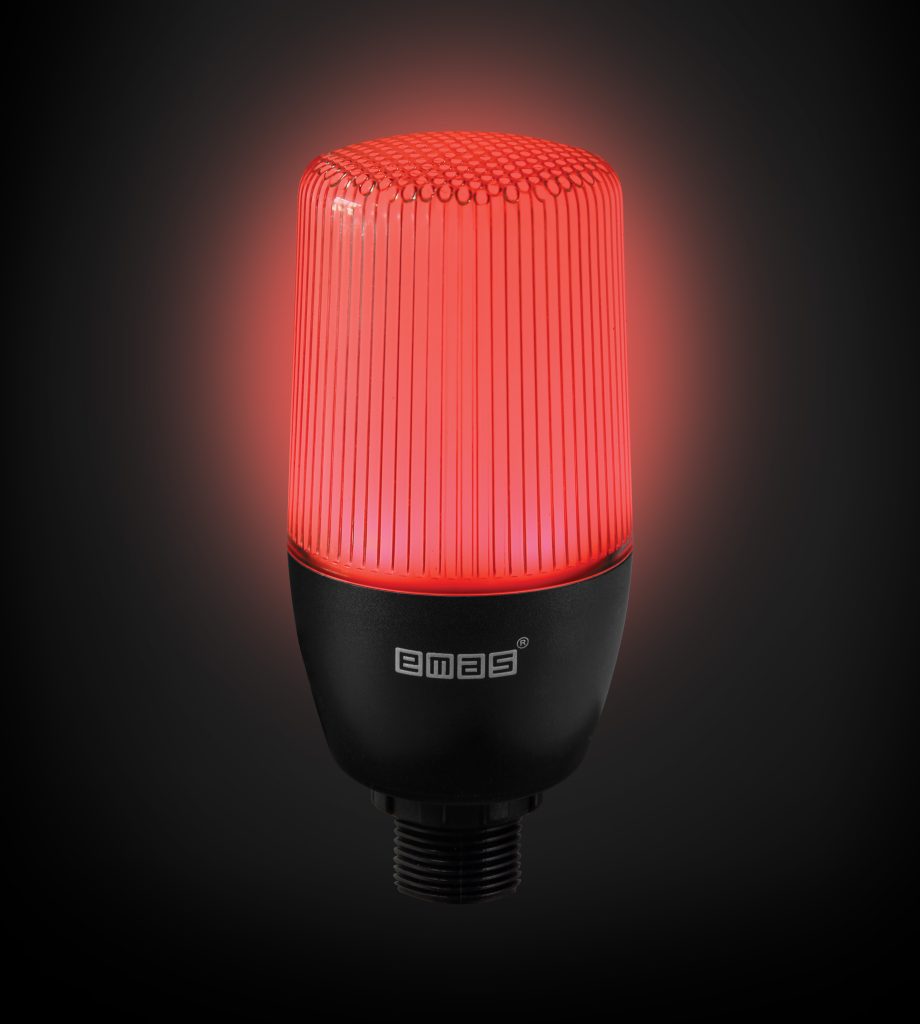

Multicolour Flexibility
EMAS IF's multicolour capability means you don't need to splash out on a collection of lamps for each system state. Just set your IF Beacon to GREEN for OPERATIONAL, RED for STOPPED, BLUE for MELANCHOLY etc.
Available colours include:
- Red
- Green
- Blue
- Yellow (Amber)
- White
Variants and Options
The EMAS IF Series offers a wide range of models to suit different installations. Options include:
- IF5M024XM05 – 24 V AC/DC multicolour beacon without buzzer
- IF5M024ZM05 – 24 V AC/DC multicolour beacon with integrated 90 dB buzzer
- IF5M110ZM05 – 110 V AC multicolour beacon with buzzer
- IF6P024WM05 – 24 V DC, larger 65 mm dome version with buzzer
This ensures you get the exact combo of voltage, size, and sound options for your application.
Built for Industrial Environments
Durability is key for the IF Series. The beacon dome heat-resistant polycarbonate, which will protect your bulb from drops, knocks and vibrations without dimming it. With an IP65 rating, these units are dust-tight and protected against splashing water, which means they're equally functional at a log flume or a dust bowl.
Operating temperatures range from –25 °C to +70 °C, and the LEDs are rated for at least 10,000 hours of operation. This means you can depend on the IF Series for long-lasting, low-maintenance performance. Fit and forget. Turn on and move on. Install and exit. Fire up and fu-- well, you get the idea.
Why Choose EMAS IF Series Beacons
- Compact and modular design for modern control panels
- Multicolour flexibility reduces the need for multiple units
- Optional audible alarm adds an extra layer of safety
- Voltage choice across 24 V AC/DC, 110 V AC, and 220 V AC models
- Rugged construction for industrial reliability
Get Your EMAS Multifunction Beacons from LED Controls
If you're after a versatile signalling solution, the EMAS IF Series Multicolour Constant-Key-Control LED Beacon is a top choice. They combine flexibility, durability, and compact design to meet the needs of your industrial applications, whatever they may be!
You can get yours online or get in touch with our team for expert advice on selecting the right beacon for your setup:
01706 242050
[email protected]k
www.ledcontrols.co.uk
In the meantime, check out our other blogs on EMAS Little Essentials: Digital Potentiometer and the legendery BARP Din Rail Adapter!
