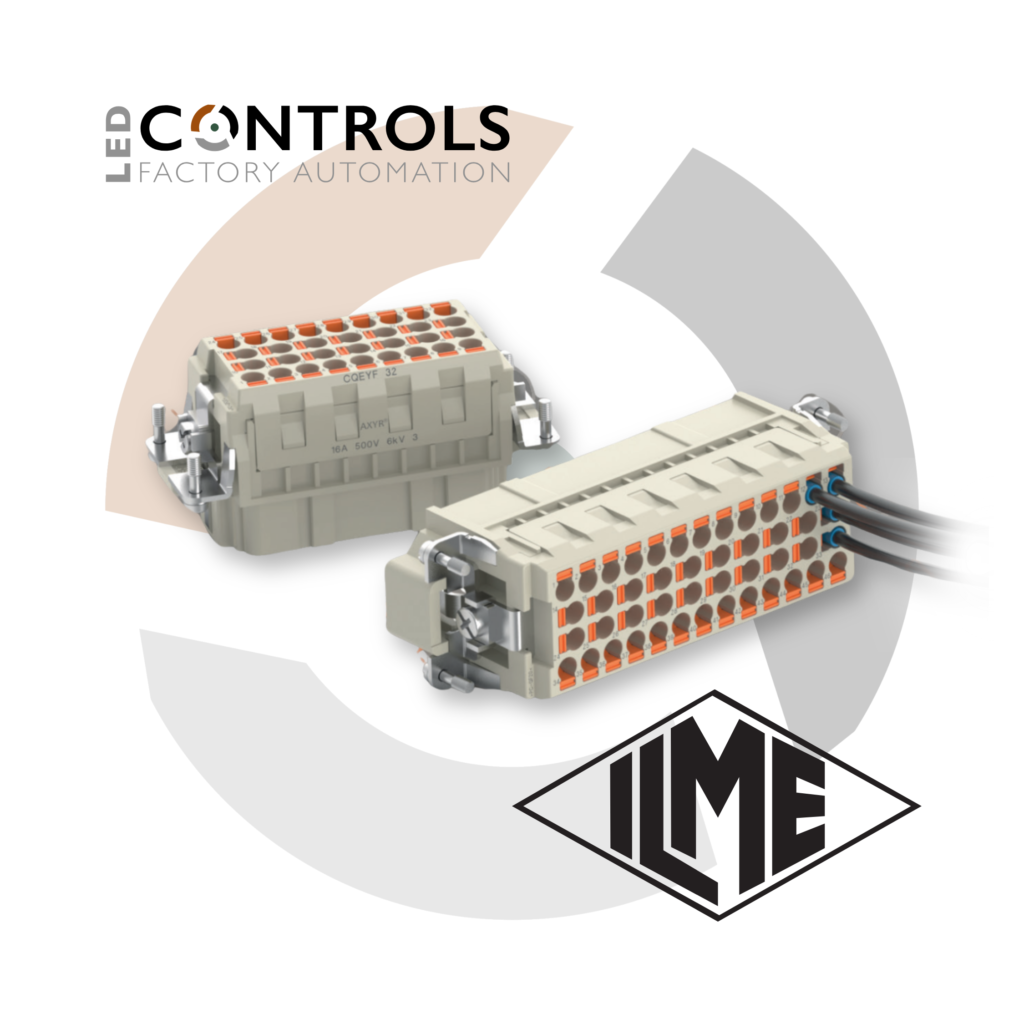

Ilme AXYR: Fast, Tool-Free Industrial Connections from LED Controls

The Ilme AXYR system is an exciting alternative to cable crimping for your industrial connections. AXYR uses push-in connection technology that delivers peak electrical performance without the need for tools. Simplify your wiring with this compact, reliable and reusable system from Ilme and LED Controls.

How does Ilme AXYR work?

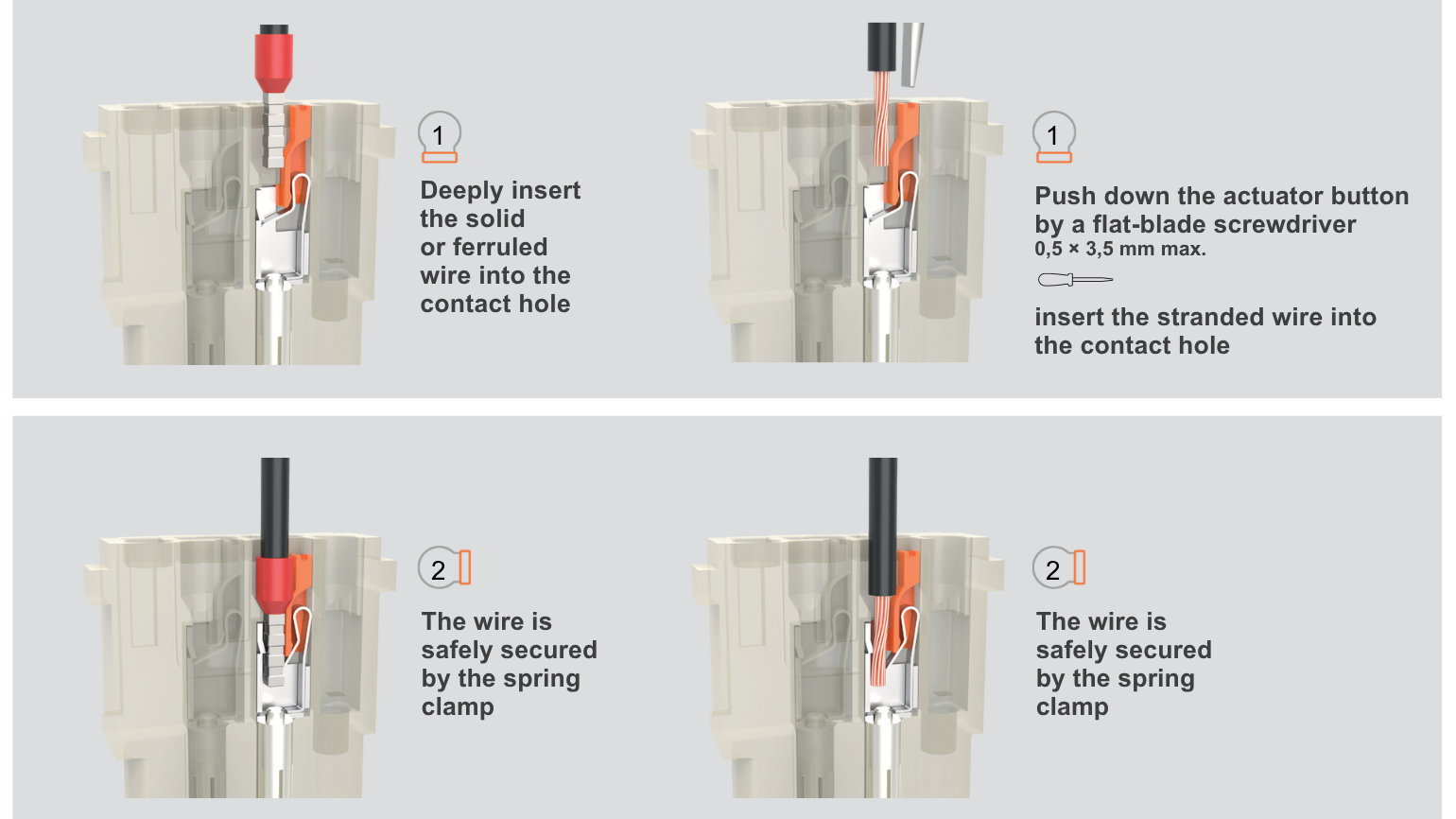

Ilme AXYR is a spring-based electrical connection system. Instead of crimping a wire, you insert your conductor directly into the contact. A built-in spring clamps the wire securely in place, applying constant pressure to create a stable electrical connection that can withstand vibration, movement, and temperature changes. The result is a connection that is faster, simpler, easier to maintain and perfect for all your industrial electrification needs.

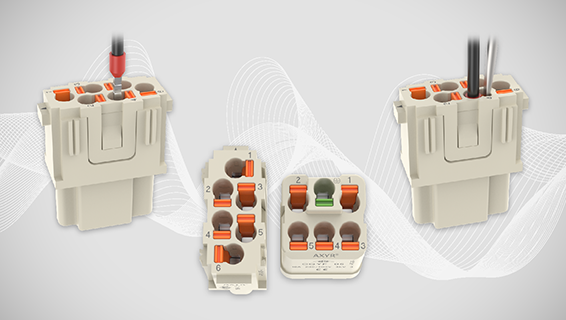

• Solid or ferruled wires can be pushed directly into the terminal.
• Stranded wires can be inserted by opening the spring with a small screwdriver.

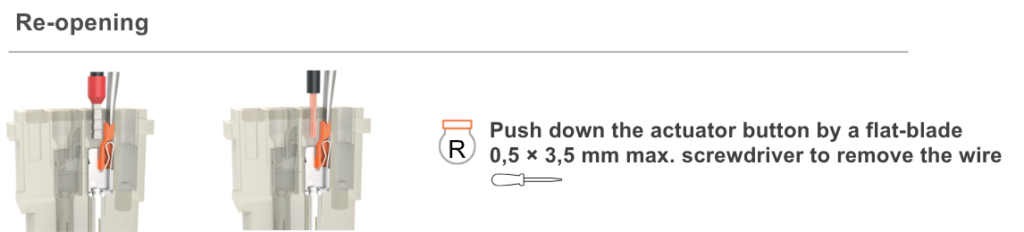

• Simply press the actuator to release the spring and remove your wire.

Key Benefits of Ilme AXYR

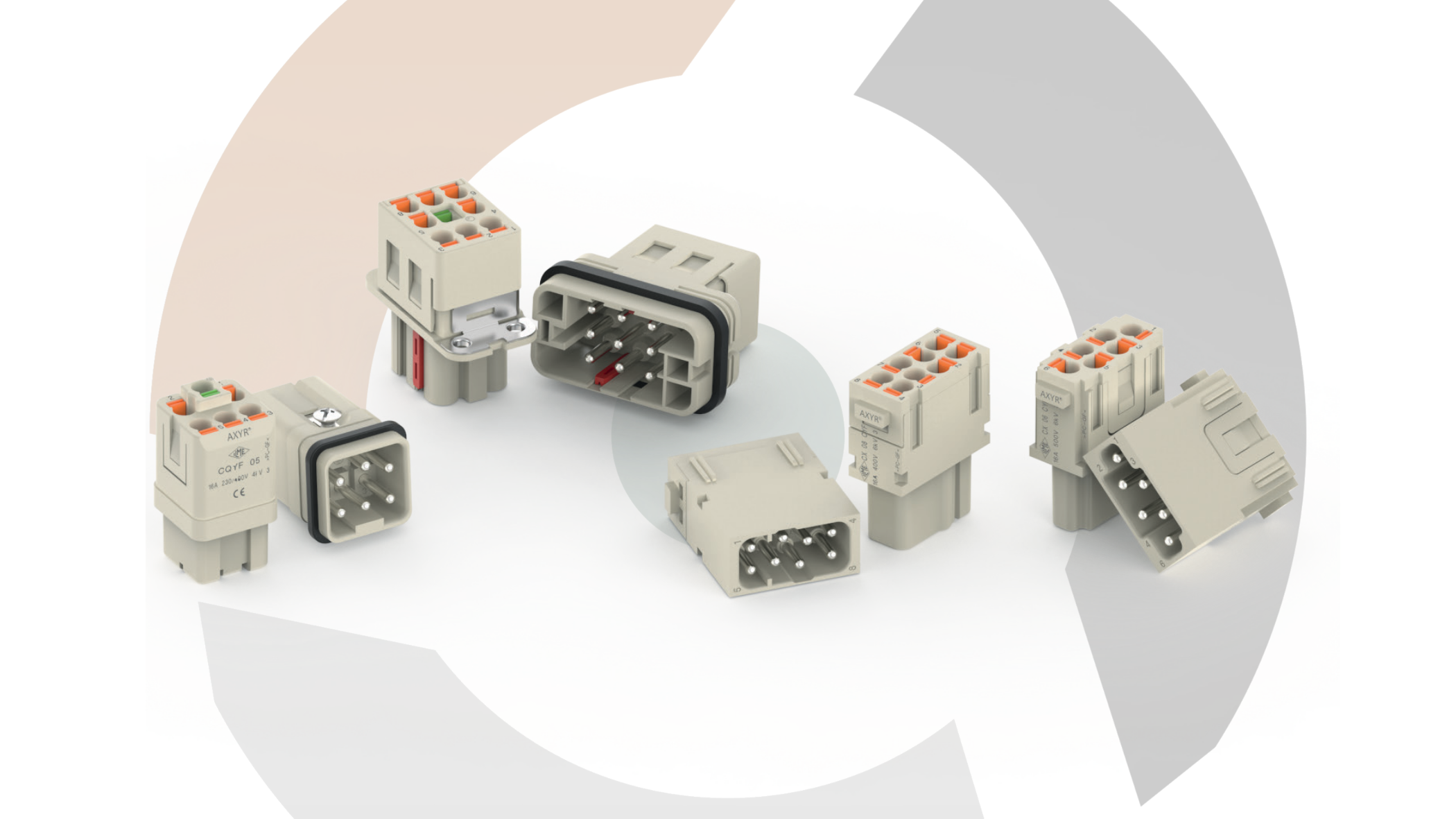

Ilme AXYR Range at LED Controls

Range	Current Rating	Pole Configurations	Format	Typical Applications	Key Features
CQY	16 A	5 + PE, 8 + PE	Compact inserts	Compact machinery, automation systems, machine interfaces	Compact size, integrated PE options, push-in wiring, suitable for general industrial use

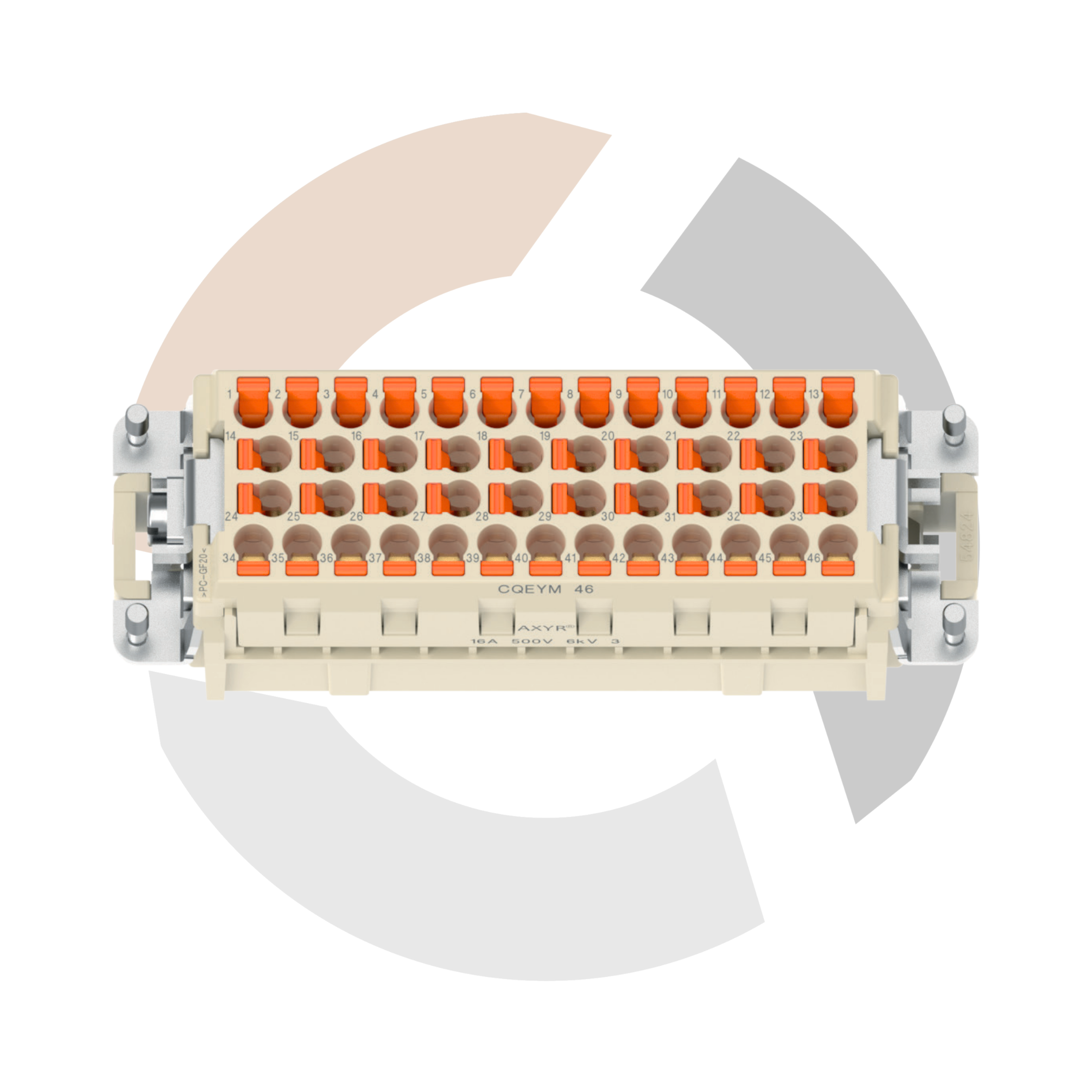

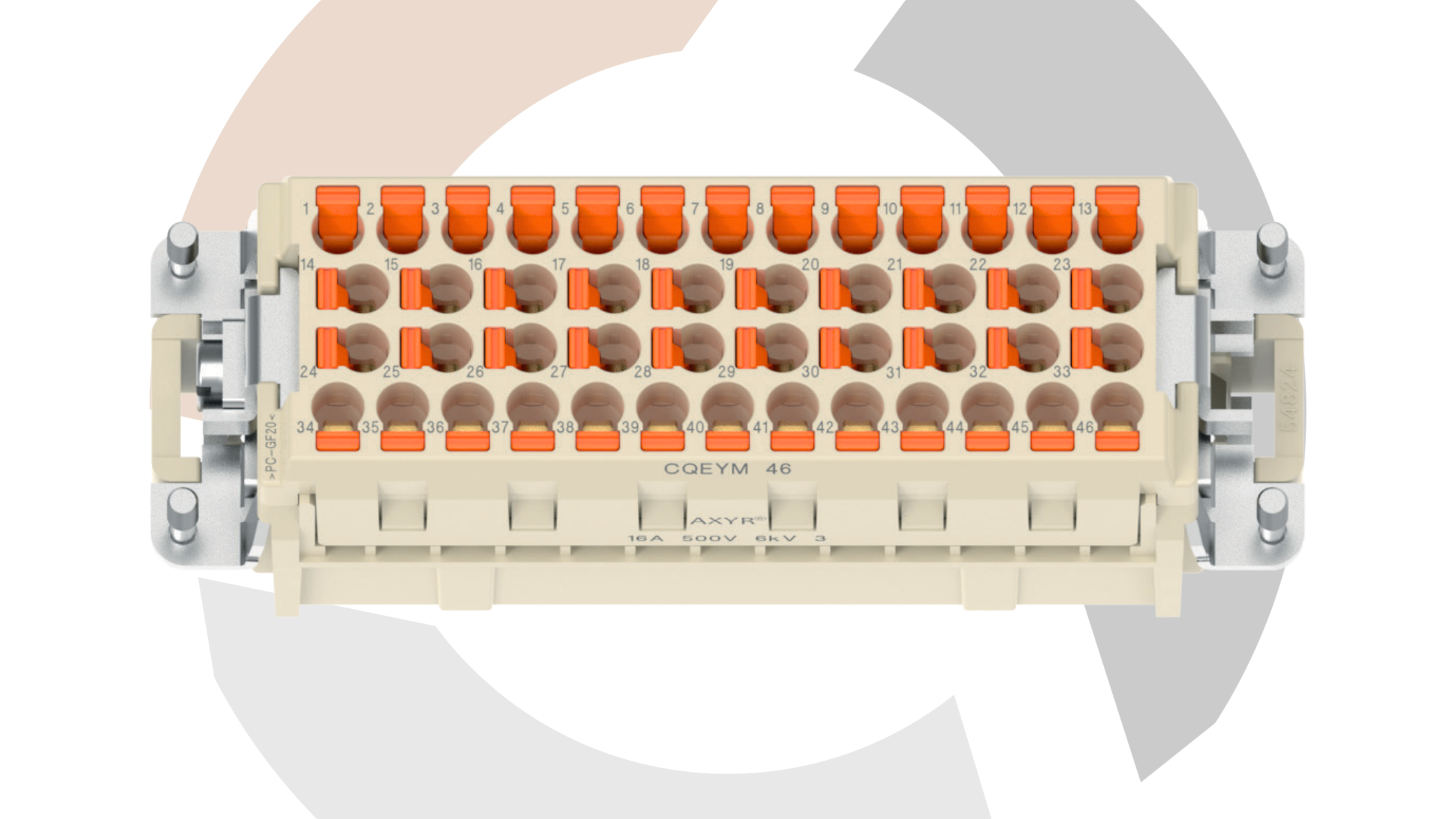

CQEY	16 A	10 + PE, 18 + PE, 32 + PE, 46 + PE, up to 64 poles	High-density inserts	High-density control panels, robotics, complex automation systems	Very high pole density, reduced panel space, gold-plated variants available, coding system support

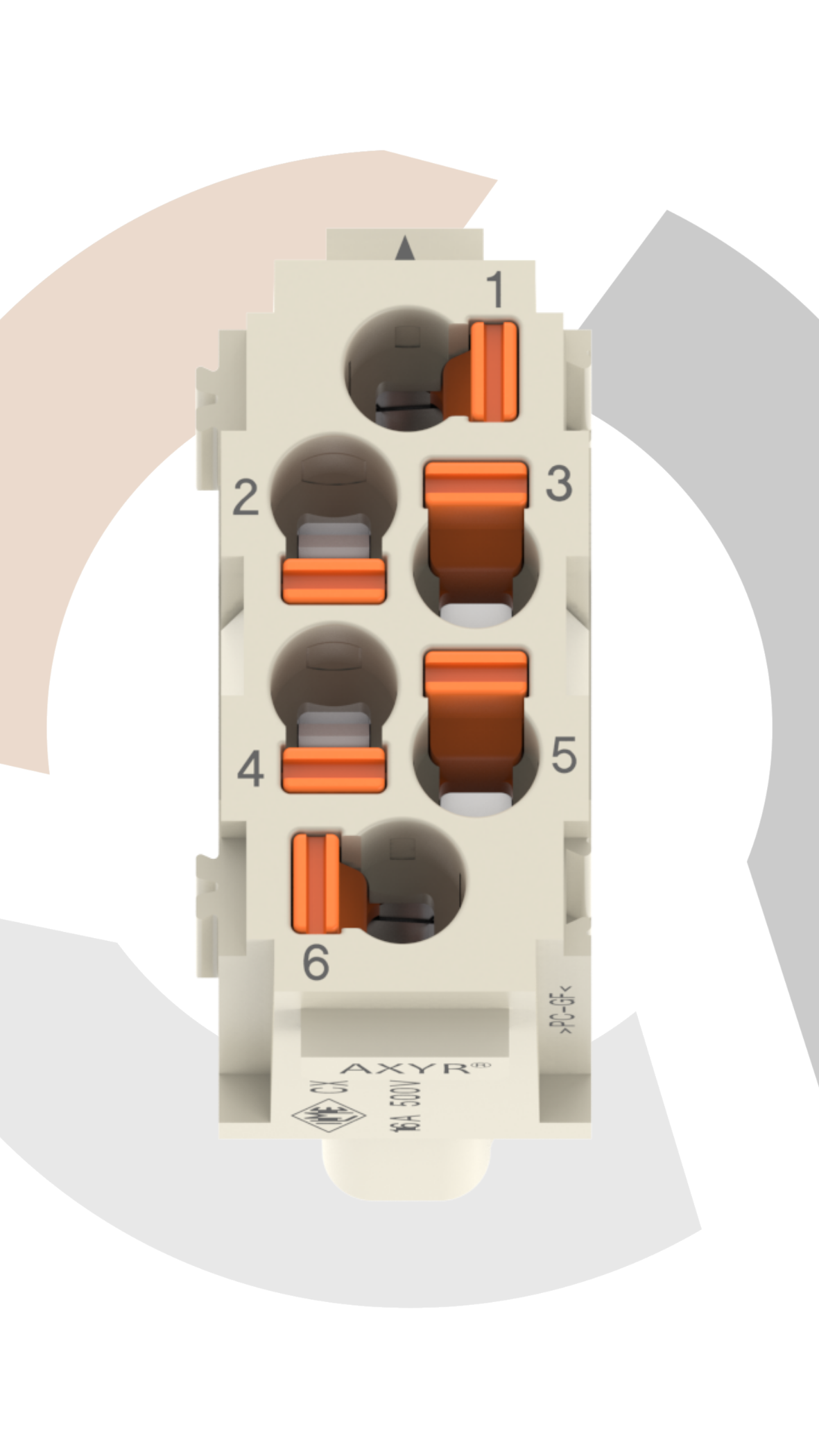

CX (MIXO Modular)	10 A, 16 A, 40 A	2, 3, 4, 6, 8, 12 poles	Modular system	Hybrid power and signal connectors, modular automation systems, power distribution	Flexible modular layouts, high-current options up to 40 A, voltages up to 1000 V, suitable for mixed applications
CDY	10 A	7 + PE, 8 poles	Compact inserts	Signal transmission, control circuits, sensor wiring	Compact format, low-voltage capability, ideal for signalling and control applications

How to choose

Choose CQY inserts when compact size and straightforward industrial wiring are the main priorities. They are well suited to smaller machinery and standard automation applications.

Choose CQEY inserts when high pole density is required. These are ideal for complex control systems where many circuits need to fit within limited panel space.

Choose MIXO CX modules when flexible, modular layouts are needed. These are suitable for mixed power and signal applications, custom connector configurations, and higher current systems.

Choose CDY inserts for low-current signal and control applications where compact connectors and efficient signal wiring are required.

Technical Performance

• Voltage ratings up to 690 V
• Temperature range from -40 °C to +125 °C
• High mechanical durability with repeated connection cycles
• Low contact resistance for efficient electrical performance

Where Can I Use Ilme AXYR?

Ilme AXYR is suitable for a wide range of industries and applications:

• Industrial automation
• Machinery and equipment manufacturing
• Control panels and switchgear
• Energy systems
• Transport and infrastructure

It is particularly useful where fast installation, limited space, and reliable connections are important.

Ilme AXYR from LED Controls

Ilme AXYR combines the performance of traditional crimp connections with the simplicity of push-in wiring. Its wide range of variants, from compact high-density inserts to modular high-current solutions, makes it an ideal fit for a broad range of industrial applications.

Ilme AXYR is a practical way to reduce your installation time while maintaining reliability and flexibility. Get yours online today, or get in touch for more information.
