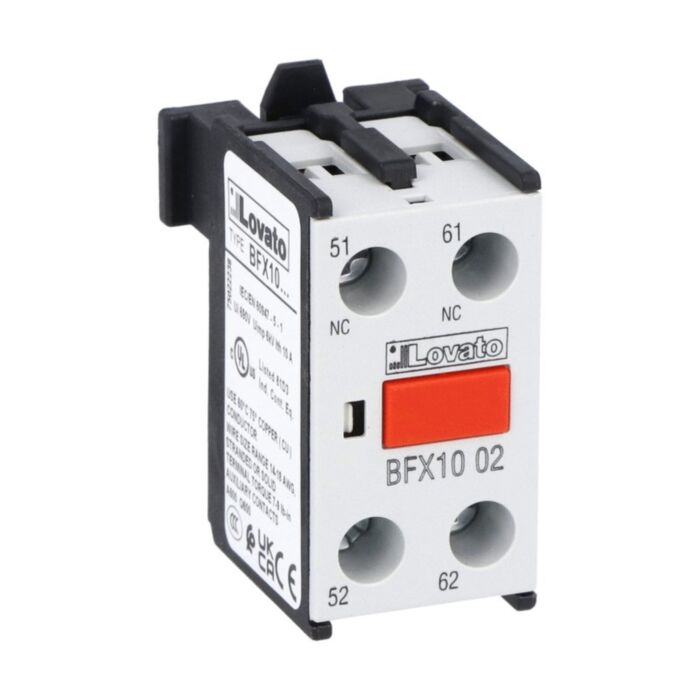

BFX1002 - 2NC AUX CONTACT BLOCK FRONT MOUNTING
MPN: BFX1002
Special Price
£7.82
£6.52
Regular Price
£13.04
Why Choose the BFX1002?
The Lovato BFX1002 auxiliary contact is a front centre mounting accessory designed for seamless integration with BF00, BF09 and BF150 series contactors. Featuring 2NC contacts with mirror contact function and robust screw terminals, it delivers dependable signalling and interlocking in demanding control panels. Built to Lovato’s standards, this compact unit helps extend functionality while maintaining clear, safe operation across industrial applications.
Rated for Ui 690 V, Uimp 6 kV and Ith 10 A (IEC), the BFX10 designation auxiliary contact operates from -50 to +70 °C and up to 3000 m altitude, pollution degree 3. Screw terminals accept 0.8–1 Nm tightening torque for secure connections, and the 30 g device meets IEC/EN 60947-1/-5-1 and UL/CSA equivalents, providing reliable performance in harsh environments.
Key Benefits
- Front centre mounting simplifies installation on BF series contactors.
- 2NC mirror contact provides reliable status indication.
- Screw terminals with 0.8–1 Nm torque ensure secure wiring.
- Rated Ui 690 V and Uimp 6 kV for robust insulation.
- Operates from -50 to +70 °C for wide environmental tolerance.
- Lightweight 30 g accessory minimises panel footprint and load.
- Conforms to IEC/EN, UL, and CSA standards for assured compliance.
Technical Specification
- Product type designation: BFX10
- Number of poles: 2
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 30 g
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BFX1002 auxiliary contact module (2NC)
- Mounting and wiring instructions
- Manufacturer datasheet
Applications
- Auxiliary signalling and interlocking on BF00… BF150… contactors
- Safety-related monitoring using mirror contact function
- Motor control panels and automation cabinets
- Process equipment and machinery control circuits
Frequently Asked Questions
Which contactors is the BFX1002 compatible with?
It is designed for Lovato BF00…, BF09…, and BF150… series contactors.
What is the contact configuration?
It has 2NC auxiliary contacts with a mirror contact function.
What are the main electrical ratings?
Ui is 690 V, Uimp is 6 kV, and Ith is 10 A (IEC).
How is it mounted and wired?
It mounts on the front centre of the contactor and uses screw terminals tightened to 0.8–1 Nm.
What environmental limits does it support?
Operating range is -50 to +70 °C; storage -60 to +80 °C; up to 3000 m altitude, pollution degree 3.
Safety note: Installation and maintenance must be performed by qualified personnel with power isolated. Tighten terminals to the specified torque and use the device within its stated ratings and environmental limits, following applicable standards.
| Manufacturer Part Number | BFX1002 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975147436 |
