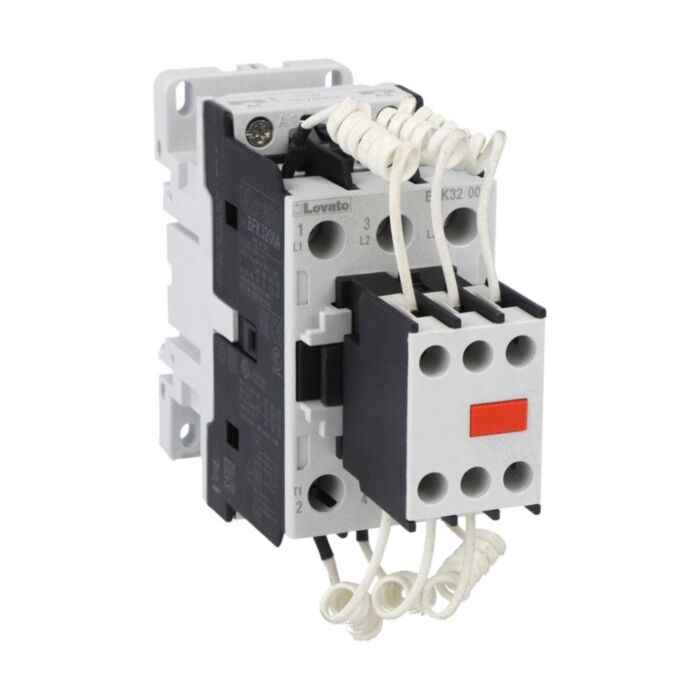

BFK3200A02460 - 3P CONTACTOR 25KVAR 24V 60HZ
MPN: BFK3200A02460
Special Price
£106.46
£88.72
Regular Price
£177.44
Why Choose the BFK3200A02460?
Built for reliable capacitor switching, the Lovato BFK3200A02460 is a contactor for power factor correction with an AC control circuit. Designated BFK32, it integrates limiting resistors to reduce inrush on capacitor banks. With 25kvar capability at 400V, a 24VAC 60Hz coil and a 3‑pole design, it suits three‑phase systems requiring consistent reactive power compensation.
Installation is straightforward via screw fixing or 35mm DIN rail, and the unit carries robust ratings: Ui 690V, Uimp 6kV and Ith 56A. Designed for endurance with a mechanical life of 20,000,000 cycles, it operates from −50 to 70°C. Conforming to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents, it delivers dependable performance in UK industrial panels.
Key Benefits
- Integrated limiting resistors protect capacitors from inrush during switching.
- 25kvar at 400V handles medium power correction stages reliably.
- 24VAC 60Hz coil suits common AC control circuits.
- Three-pole configuration optimised for three-phase power factor correction.
- Screw or 35mm DIN rail mounting speeds panel installation.
- High dielectric ratings: Ui 690V and Uimp 6kV enhance resilience.
- Wide −50 to 70°C operating range supports harsh environments.
- Long 20,000,000-cycle mechanical life reduces downtime.
Technical Specification
- Product type designation: BFK32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 400 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BFK3200A02460 contactor unit
- Integrated limiting resistors for capacitor switching
- Pre-fitted 24VAC 60Hz control coil
- Installation and safety instructions (download)
Applications
- Automatic power factor correction banks at 400 V
- Three-phase capacitor switching in industrial distribution panels
- AC control systems using 24 VAC 60 Hz coils
- OEM power factor correction controllers and stages
- Commercial and light industrial LV power compensation
Frequently Asked Questions
Does the BFK3200A02460 include limiting resistors?
Yes, limiting resistors are integrated to reduce inrush when switching capacitors.
What coil voltage and frequency are required?
The control coil is rated 24 VAC at 60 Hz.
How can this contactor be mounted?
It mounts via screw fixing or on a 35 mm DIN rail.
What is the power factor correction rating at 400 V?
It is rated 25 kvar at 400 V in accordance with IEC.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Only qualified personnel should install and service this device. Isolate the supply and ensure capacitor banks are fully discharged before work; follow IEC/EN 60947 and the manufacturer’s instructions.
| Manufacturer Part Number | BFK3200A02460 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975163542 |
| Coil Voltage | 24V |
