BFK2600A400 - 3P CONTACTOR 20KVAR 400V 50/60HZ

Why Choose the BFK2600A400?

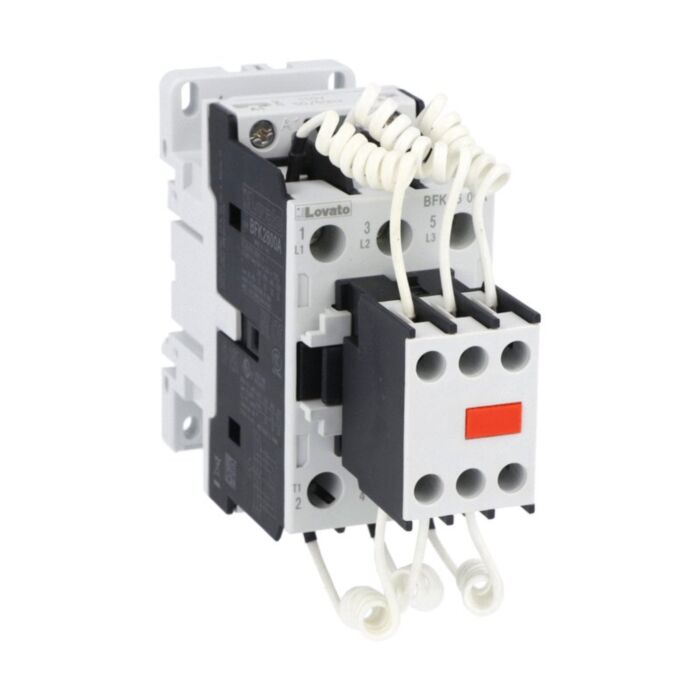

Lovato’s BFK2600A400 is a contactor for power factor correction with AC control circuit, supplied with limiting resistors for reliable capacitor switching. Delivering up to 20 kvar at 400V, this 3‑pole device employs a 400VAC 50/60Hz coil and supports screw mounting or 35mm DIN rail installation. Part of the BFK26 family, it helps stabilise reactive power in low-voltage systems while maintaining straightforward integration into control panels and capacitor bank assemblies.

Engineered for durability, it offers rated insulation voltage Ui 690 V, impulse withstand Uimp 6 kV and Ith 45 A, with mechanical life to 20,000,000 cycles. A wide -50 to 70 °C operating range and pollution degree 3 suit demanding sites up to 3000 m altitude. Installation is simple with 2.5–3 Nm terminal torque, and compliance covers IEC/EN/BS 60947-1/-4-1 plus UL and CSA standards.

Key Benefits

• 20 kvar at 400V for dependable power factor correction performance.
• AC coil 400VAC 50/60Hz for standard control circuits.
• Limiting resistors included to mitigate capacitor inrush currents.
• 3-pole configuration optimised for three-phase applications.
• Screw or 35mm DIN rail mounting for flexible installation.
• Robust ratings: Ui 690 V, Uimp 6 kV, Ith 45 A.
• Wide -50 to 70 °C operating temperature and 20,000,000-cycle life.

Technical Specification

• Product type designation: BFK26
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 400 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BFK2600A400 contactor with limiting resistors
• Installation and safety instructions
• Product identification and compliance information

Applications

• Automatic power factor correction capacitor banks
• LV switchboards and distribution panels
• Industrial and commercial control panels
• Retrofit upgrades of reactive power compensation systems

Safety note: Installation and maintenance must be performed by qualified personnel with power isolated. Observe specified terminal torque, environmental limits and applicable IEC/EN/BS, UL and CSA standards before energising.
