BFK2600A23060 - 3P CONTACTOR 20KVAR 230V 60HZ

Why Choose the BFK2600A23060?

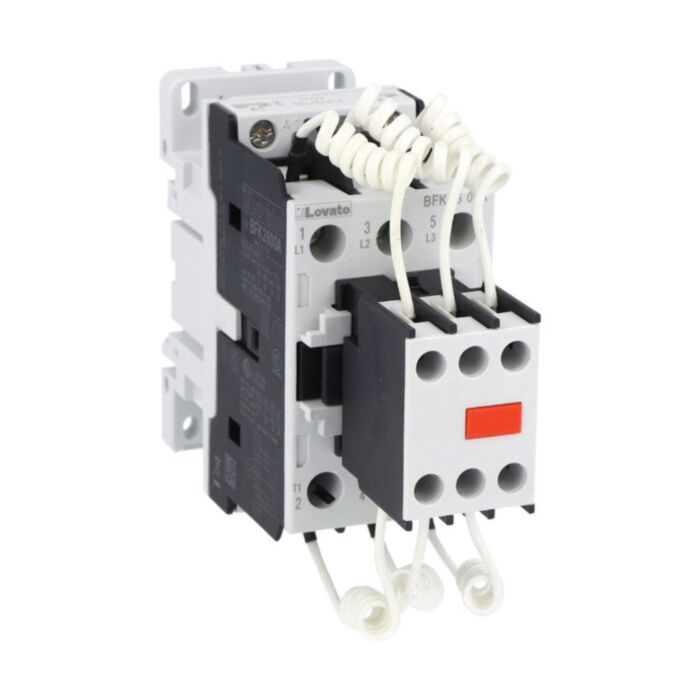

Lovato's BFK2600A23060 is a contactor for power factor correction with an AC control circuit, supplied with limiting resistors for dependable switching. Rated at 20 kvar (IEC) at 400 V, it features a 230 VAC 60 Hz coil and a 3-pole configuration. Flexible installation is supported via screw fixing or 35 mm DIN rail mounting, making integration straightforward in new builds and upgrades.

Engineered for demanding environments, the BFK26 designation combines durability and safety: Ui 690 V, Uimp 6 kV and Ith 45 A. A mechanical life of 20,000,000 cycles and a wide operating range from -50 to 70 °C support long service. Suitable up to 3000 m altitude with pollution degree 3, it complies with IEC/EN/BS 60947 and UL/CSA standards for assured performance and compatibility.

Key Benefits

• 20 kvar IEC operational power at 400 V for reliable PFC.
• 230 VAC 60 Hz coil suits AC control circuit applications.
• Three-pole configuration simplifies capacitor bank switching schemes.
• Includes limiting resistors as standard for PFC contactor operation.
• High insulation rating: Ui 690 V; Uimp 6 kV.
• Robust Ith 45 A for dependable current carrying capacity.
• Wide operating temperature from -50 to 70 °C.
• Flexible screw or 35 mm DIN rail mounting.

Technical Specification

• Product type designation: BFK26
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 400 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BFK26 contactor unit, 3-pole
• Integrated limiting resistors
• 230 VAC 60 Hz coil fitted

Applications

• Automatic power factor correction panels
• Switching of 400 V capacitor banks
• Industrial and commercial AC distribution boards
• Control panels with AC control circuits

Safety note: Install and commission only by qualified personnel. Isolate all power before work, observe the 2.5–3 Nm terminal tightening torque, and operate within the specified environmental limits and standards.
