BFK1810A04860 - 3P CONTACTOR15KVAR 48V 60HZ
MPN: BFK1810A04860
Special Price
£63.02
£52.52
Regular Price
£105.04
Why Choose the BFK1810A04860?

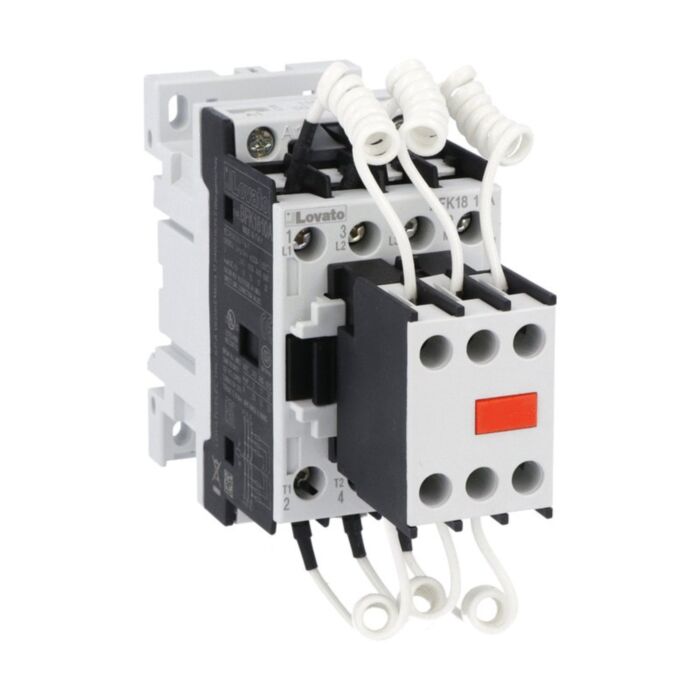

The Lovato BFK1810A04860 is a contactor for power factor correction with an AC control circuit, engineered to switch capacitor banks reliably. With 3 poles and an IEC operational power of 15 kvar at 400V, it integrates limiting resistors to temper inrush currents. The 48VAC 60Hz coil and a pre-fitted 1NO auxiliary contact simplify panel integration. Mounting options include screw fixing or 35mm DIN rail for flexible installation.
Built on the BFK18 platform, this power factor correction contactor carries Ui 690 V, Uimp 6 kV and Ith 32 A for robust endurance. It achieves a mechanical life of 20,000,000 cycles and operates from -50 to 70 °C up to 3000 m altitude. Conformity includes IEC/EN/BS 60947-1 and 60947-4-1, with UL and CSA standards, supporting reliable performance in UK panel-building applications.
Key Benefits
- Integrated limiting resistors reduce capacitor inrush for smoother switching.
- 15 kvar at 400V for dependable power factor correction duty.
- 48VAC 60Hz coil suited to standard AC control circuits.
- 3-pole design with pre-fitted 1NO auxiliary contact.
- Screw or 35mm DIN rail mounting simplifies installation.
- High endurance: Ui 690 V, Uimp 6 kV, Ith 32 A.
- Wide operating temperature from -50 to 70 °C.
Technical Specification
- Product type designation: BFK18
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 460 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BFK1810A04860 PFC contactor unit
- Integrated limiting resistors and 1NO auxiliary contact
- DIN rail or screw mounting capability
- Manufacturer documentation and datasheet (downloadable)
Applications
- Automatic power factor correction panels and capacitor banks
- Low-voltage distribution boards requiring reactive power compensation
- Industrial and commercial switchgear assemblies at 400V
- Motor control centres and panel builds with AC control circuits
- Installations up to 3000 m within rated environmental conditions
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
It features an AC coil rated 48 VAC at 60 Hz.
What is the maximum capacitor power at 400 V?
The IEC operational power is 15 kvar at 400 V.
Are limiting resistors included with this model?
Yes, it includes integrated limiting resistors to reduce inrush current.
How can the contactor be mounted?
It supports screw mounting or 35mm DIN rail installation.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA standards.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power and fully discharge capacitors before work, and follow IEC/EN/BS 60947 guidelines and the manufacturer’s instructions.
| Manufacturer Part Number | BFK1810A04860 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975163313 |
| Coil Voltage | 48V |
