BFK1210A400 - 3P CONTACTOR 12 5KVAR 400V 50/60HZ

Why Choose the BFK1210A400?

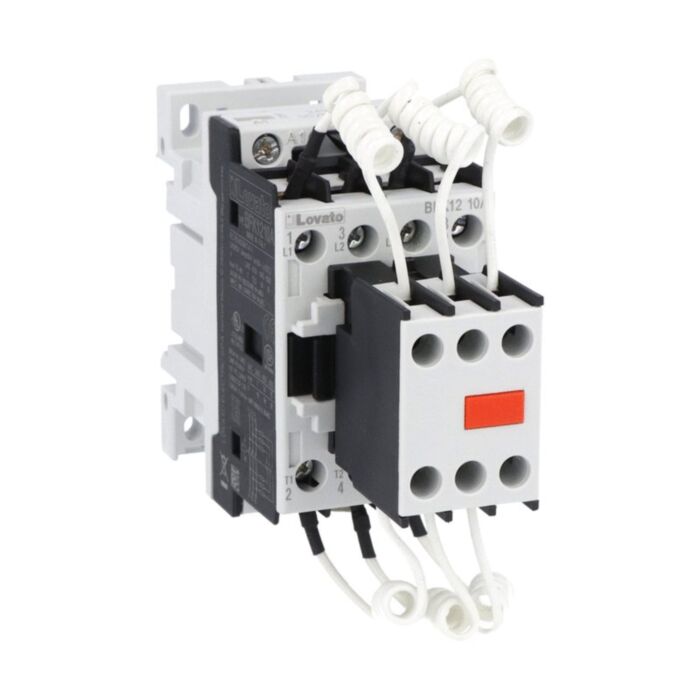

Lovato’s BFK1210A400 is a contactor for power factor correction with an AC control circuit, engineered for reliable capacitor switching. Delivering 12.5 kvar at 400 V, it features a 400 VAC 50/60 Hz coil and built-in limiting resistors to control inrush. The 3-pole design includes a 1NO auxiliary contact and offers versatile screw or 35 mm DIN rail mounting for panel builders.

Built for demanding environments, the BFK12 platform offers Ui 690 V, Uimp 6 kV and Ith 28 A, with mechanical life to 20,000,000 cycles. Wide operating temperature from -50 to 70 °C and installation up to 3000 m support diverse sites. Conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents, and carries a sustainability certification.

Key Benefits

• Engineered for power factor correction capacitor switching applications
• Built-in limiting resistors to manage inrush during capacitor energisation
• 12.5 kvar at 400 V for efficient compensation stages
• 400 VAC 50/60 Hz AC coil for common control supplies
• 3-pole configuration with 1NO auxiliary contact for signalling
• Screw or 35 mm DIN rail mounting for fast panel integration
• Wide operating temperature and 6 kV impulse withstand for resilience
• Conforms to IEC/EN/BS, UL and CSA standards; sustainability certification

Technical Specification

• Product type designation: BFK12
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 28 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 428 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• BFK1210A400 power factor correction contactor, 3-pole
• 400 VAC 50/60 Hz coil pre-installed
• Integrated limiting resistors
• 1NO auxiliary contact built in
• Installation and safety instructions

Applications

• Low-voltage capacitor banks and compensation stages
• Industrial and commercial distribution panels
• Motor control centres with integrated power factor correction
• Automation panels using AC control circuits
• Retrofit upgrades to improve site power factor

Safety note: Install and service only by qualified personnel. Isolate the supply and ensure connected capacitors are fully discharged before work. Follow applicable IEC/EN 60947 standards and the manufacturer’s instructions.
