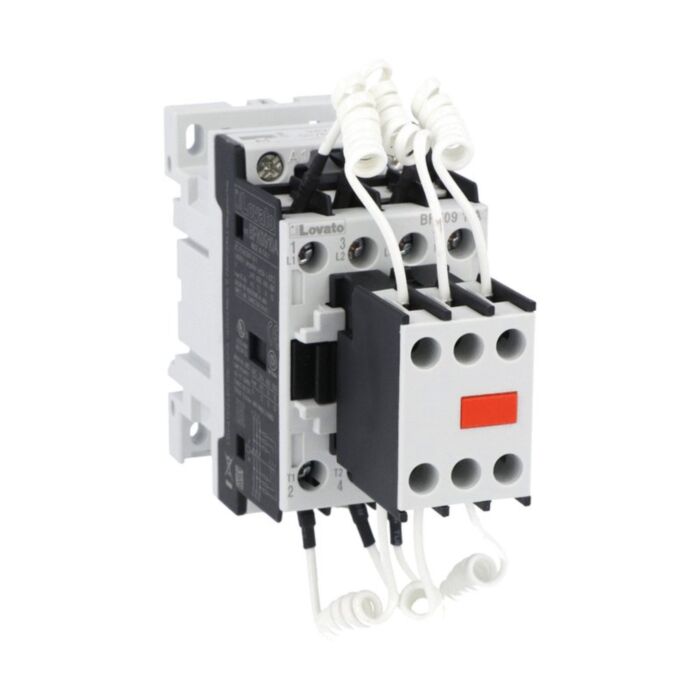

BFK0910A400 - 3P CONTACTOR 7 5KVAR 400V 50/60HZ

Why Choose the BFK0910A400?

The Lovato BFK0910A400 is a contactor for power factor correction with an AC control circuit, engineered for reliable capacitor bank switching. Its 400 VAC 50/60 Hz coil and integrated limiting resistors ensure smooth inrush management, while the 7.5 kvar (400 V) rating suits compact PFC stages. A 3-pole design with a built-in 1NO auxiliary contact and screw or 35 mm DIN rail mounting simplifies fast, tidy panel integration.

Designed for resilience, the unit offers a 690 V rated insulation (Ui), 6 kV impulse withstand (Uimp) and 25 A Ith, backed by a mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C up to 3000 m altitude, Pollution Degree 3. Conformity includes IEC/EN/BS 60947 and UL/CSA standards, with Sustainability certification—ideal for dependable, standards-aligned power factor correction assemblies.

Key Benefits

• Ready for power factor correction with integrated limiting resistors.
• Stable 400 VAC 50/60 Hz AC coil for consistent operation.
• 7.5 kvar at 400 V suits compact capacitor stages.
• Robust ratings: Ui 690 V and Uimp 6 kV.
• Long mechanical life of 20,000,000 cycles.
• Flexible screw or 35 mm DIN rail mounting.
• Standards compliant to IEC/EN/BS, UL and CSA.

Technical Specification

• Product type designation: BFK09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 25 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 428 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BFK0910A400 contactor
• Integrated limiting resistors
• Built-in 1NO auxiliary contact
• 400 VAC 50/60 Hz coil fitted
• Protective packaging

Applications

• Low-voltage power factor correction capacitor banks up to 7.5 kvar at 400 V
• Industrial and commercial PFC panels with AC control circuits
• OEM control assemblies requiring 3-pole PFC contactors
• Electrical distribution boards with DIN rail or screw mounting

Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power before work, verify compatibility with 400 VAC coil and 7.5 kvar/400 V service, and observe IEC/EN/BS 60947, specified torque, temperature and altitude limits.
