BFD80T4E024 - 4P CONTACT.60A/1000V DC1 230VAC/DC
MPN: BFD80T4E024
Special Price
£783.32
£652.77
Regular Price
£1,305.54
Why Choose the BFD80T4E024?

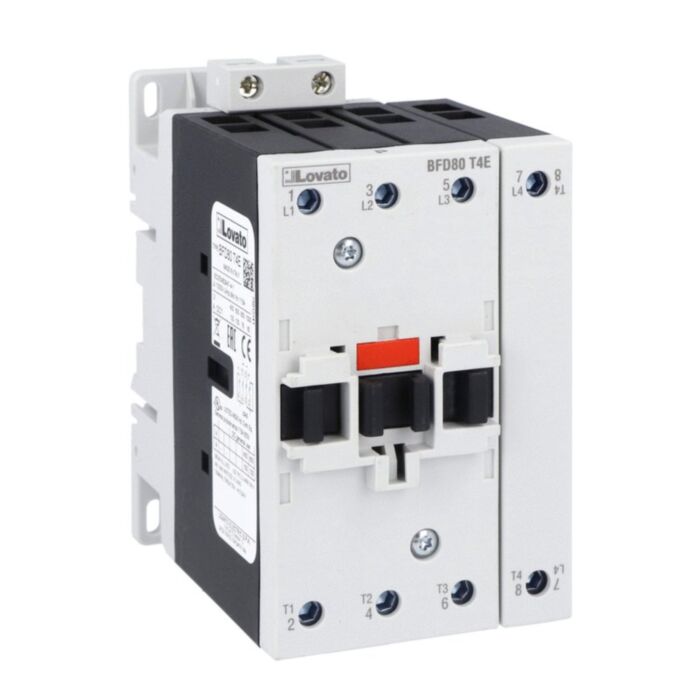

Lovato BFD80T4E024 is a robust four-pole contactor engineered for photovoltaic and DC switching. Rated 80A/1000V DC1, it combines a versatile 20-48 V AC/DC coil with reliable screw or 35 mm DIN rail mounting. With 1000 V insulation (Ui) and 8 kV impulse withstand (Uimp), this compact unit delivers dependable performance for high-voltage DC circuits in UK industrial installations.
Built for endurance, the BFD80 series delivers 15,000,000 mechanical cycles and dependable operation from -40 to 70 °C, up to 3000 m altitude, Pollution Degree 3. Thermal current (Ith) is 115 A, with terminals tightened to 4-5 Nm. Conformance to IEC/EN/BS 60947-1 and 60947-4-1 plus UL and CSA standards ensures wide acceptance across UK industrial and PV control panels.
Key Benefits
- Four-pole design supports reliable DC switching in photovoltaic applications.
- 20-48 V AC/DC coil simplifies control wiring across diverse systems.
- Rated 80A/1000V DC1 for robust high-voltage resistive load control.
- High mechanical life, 15,000,000 cycles, minimising downtime and maintenance.
- Flexible mounting on 35 mm DIN rail or by screw fixing.
- Withstands 8 kV impulse voltage; 1000 V insulation (Ui) rating.
- Operates -40 to 70 °C and up to 3000 m altitude.
- Compliant with IEC/EN/BS, UL and CSA 60947 standards.
Technical Specification
- Product type designation: BFD80
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 1000 V
- Rated impulse withstand voltage Uimp: 8 kV
- Ith (IEC): 115 A
- Terminal tightening torque: 4 to 5 Nm
- Weight: 1280 g
- Mechanical life: 15000000 cycles
- Operating temperature: -40 to 70 °C
- Storage temperature: -50 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BFD80T4E024 four-pole contactor
- Product datasheet and documentation
- Protective packaging for transit
- Manufacturer conformity and certification details
Applications
- Photovoltaic DC switching in combiner boxes and inverter input circuits
- Battery energy storage and DC distribution panels
- Resistive DC load control up to 1000 V in DC1 category
- Industrial control panels requiring four-pole isolation and interlocking
- Harsh-environment installations needing wide temperature operating range
Frequently Asked Questions
What coil voltage does the BFD80T4E024 support?
It has an AC/DC coil rated 20 to 48 V, suitable for common control supplies.
Is this contactor suitable for photovoltaic applications?
Yes. The product is designated for photovoltaic application and DC switching.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail installation for flexibility.
What are its main electrical ratings?
It is rated 80 A/1000 V in DC1, with Ui 1000 V and Uimp 8 kV.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Install and service only by qualified personnel. Isolate all power before work, tighten terminals to 4-5 Nm, and follow IEC/EN 60947 guidelines and local regulations.
| Manufacturer Part Number | BFD80T4E024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975224380 |
| Coil Voltage | 230VAC/DC |
