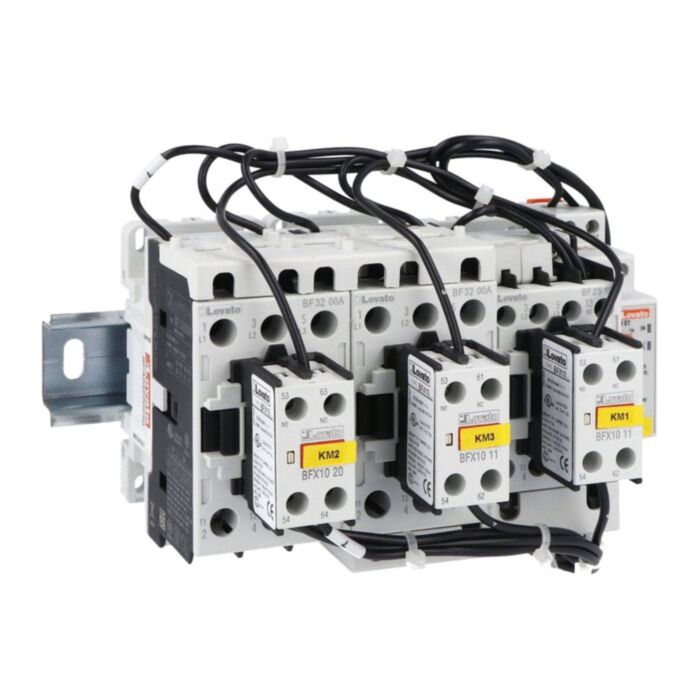

BFA03270230 - S-D STARTER 230/50-60 W/O RELAY
MPN: BFA03270230
Special Price
£698.63
£582.19
Regular Price
£1,164.37
Why Choose the BFA03270230?
Lovato’s Completa star-delta starter BFA03270230 is an open frame assembly designed for reliable reduced-voltage motor starting. With a 230VAC 50/60Hz AC coil, it supports start times up to 12 seconds and a duty of 30 operations per hour. Rated for a maximum IEC operating current of 50A, it helps minimise inrush current and mechanical stress during acceleration.
Compliant with IEC/EN 60947-1 and IEC/EN 60947-4-9, the BFA032 designation unit carries a UL/CSA 480V rating of 30 HP and weighs 1900 g. The open-frame configuration suits panel integration and maintenance access, while the sustainability certification supports responsible procurement. Choose this Lovato star-delta starter for consistent performance in industrial motor applications requiring dependable, repeatable starts.
Key Benefits
- Open frame build for straightforward panel mounting and inspection.
- 230VAC 50/60Hz AC coil simplifies control circuit compatibility.
- Supports start times up to 12 seconds for gentle acceleration.
- Rated 50A IEC operating current for robust motor starting.
- Duty up to 30 operations per hour for repetitive starts.
- UL/CSA 480V rating: 30 HP for North American compatibility.
- Conforms to IEC/EN 60947-1 and 60947-4-9 standards.
- Sustainability certification aids responsible sourcing policies.
Technical Specification
- Product type designation: BFA032
- Weight: 1900 g
What’s Included
- Lovato Completa star-delta starter, open frame (SKU BFA03270230)
- Manufacturer data sheet (download link)
- Protective packaging for transit
Applications
- Industrial motor starting requiring reduced inrush and mechanical stress
- Control panels and MCCs needing open-frame star-delta assemblies
- OEM machinery with 230VAC control circuits
- Repetitive start-duty processes up to 30 operations/hour
Frequently Asked Questions
What is the coil voltage and frequency?
It has a 230VAC 50/60Hz AC coil.
Is this an open-frame unit?
Yes. The type is Open frame.
What is the maximum IEC operating current?
The maximum IEC operating current is 50A.
What are the permitted start time and duty?
Start time is up to 12 seconds, with a maximum of 30 operations per hour.
What ratings and standards does it carry?
It is rated 30 HP at 480V (UL/CSA) and conforms to IEC/EN 60947-1 and 60947-4-9.
Safety note: Install and commission only by qualified personnel. Isolate power before work, follow IEC/EN 60947 requirements, and respect the 12-second start and 30 operations/hour duty limits.
| Manufacturer Part Number | BFA03270230 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975155745 |
| Coil Voltage | 230V |
