BFA02542230 - REVERSING CONTACTOR 25A 230/50-60

Why Choose the BFA02542230?

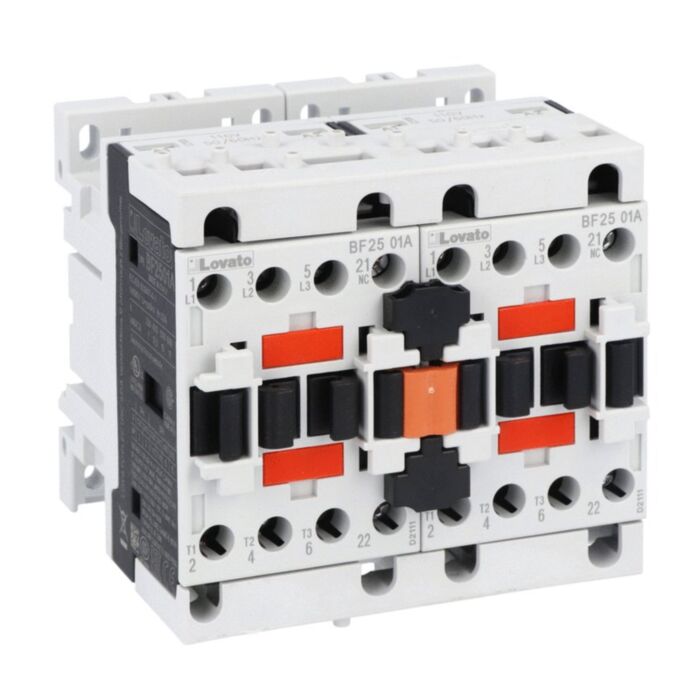

Engineered for dependable motor reversing, the Lovato BFA02542230 is a reversing contactor assembly with an AC coil for 230VAC 50/60Hz control supplies. This open frame unit features an external interlock with power and auxiliary wiring, simplifying integration and supporting safe operation. Rated 25A AC-3 with 12.5kW motor power capability, it provides robust performance in industrial panels where reliable forward/reverse switching is essential.

Conforming to IEC/EN 60947-1 and IEC/EN 60947-4-1, and recognised under UL508 and CSA C22.2 n° 14, this assembly aligns with international controlgear standards. Designation BFA025 and weighing 760 g, it also carries a 15 HP rating at 480V (UL/CSA). The open frame, externally interlocked design supports straightforward wiring layouts and consistent performance across industrial control panels and machinery.

Key Benefits

• Ready-to-use reversing contactor assembly with external interlock prewired.
• AC coil 230VAC 50/60Hz suits standard control supplies.
• Rated 25A AC-3 and 12.5kW for dependable motor control.
• Open frame construction eases panel integration and inspection.
• Conforms to IEC/EN 60947-1 and 60947-4-1 standards.
• UL/CSA 15 HP at 480V enables global compliance.
• BFA025 designation and 760 g weight simplify specification.

Technical Specification

• Product type designation: BFA025
• Weight: 760 g

What’s Included

• Reversing contactor assembly, open frame (Lovato BFA02542230)
• External interlock with power and auxiliary wiring
• AC coil rated 230VAC 50/60Hz

Applications

• Forward/reverse control of AC motors up to 12.5 kW
• Industrial control panels requiring IEC/EN 60947 conformity
• Systems using a 230VAC 50/60Hz control supply
• Machinery needing externally interlocked reversing contactors

Safety note: Install and commission only by qualified personnel. Isolate all power before wiring or maintenance and follow IEC/EN 60947 and local regulations.
