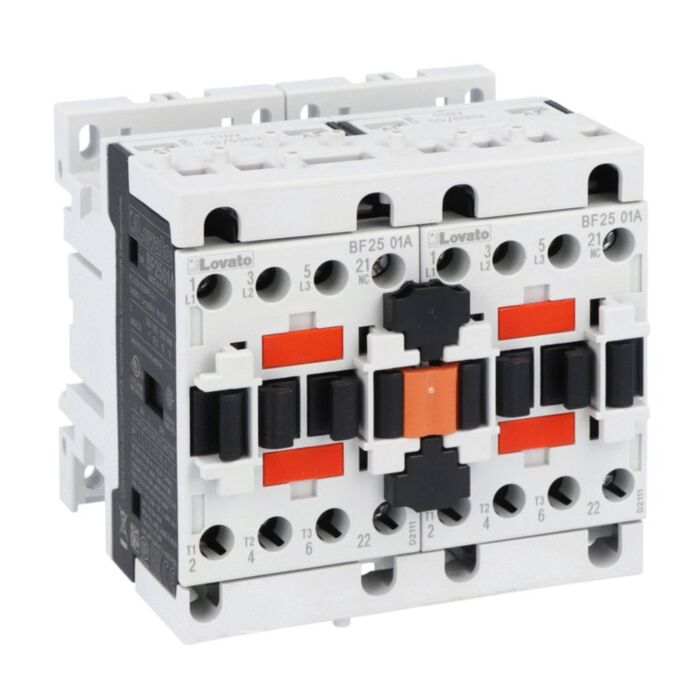

BFA02542110 - REVERSING CONTACTOR 25A 110/50-60
MPN: BFA02542110
Special Price
£241.81
£201.51
Regular Price
£403.02
Why Choose the BFA02542110?
Designed for dependable motor direction control, the Lovato BFA02542110 reversing contactor assembly combines an AC coil with an open-frame build and an external interlock complete with power and auxiliary wiring. Rated 25A AC-3 and 12.5kW, this compact assembly operates on 110VAC 50/60Hz, offering a robust, ready-to-integrate solution for industrial panels. The SKU BFA02542110 helps ensure accurate specification and replenishment.
Backed by Lovato’s BFA025 designation, this reversing contactor assembly meets IEC/EN 60947-1 and IEC/EN 60947-4-1, and is compliant with UL508 and CSA C22.2 n° 14. It carries a UL/CSA horsepower rating of 15 HP at 480V and weighs just 760 g for easier handling in build and maintenance. A Sustainability certification underlines responsible manufacture without compromising performance or reliability.
Key Benefits
- External interlock with power and auxiliary wiring simplifies safe reversing control.
- AC coil 110VAC 50/60Hz ensures compatibility with common control supplies.
- 25A AC-3, 12.5kW rating supports robust motor switching duties.
- Open frame design aids straightforward panel mounting and inspection.
- UL/CSA 15 HP at 480V rating for documented performance.
- Conforms to IEC/EN 60947 and UL508, CSA C22.2 n° 14 standards.
- 760 g weight helps ease handling during installation and service.
Technical Specification
- Product type designation: BFA025
- Weight: 760 g
What’s Included
- Lovato reversing contactor assembly (open frame)
- External interlock with power and auxiliary wiring
- AC coil, 110VAC 50/60Hz, fitted
- Basic product documentation
Applications
- Reversing control of three-phase induction motors
- Conveyor, pump, and fan direction switching in industrial panels
- Machine tools requiring reliable forward/reverse motor operation
- OEM control cabinets needing standards-compliant motor reversing
Frequently Asked Questions
What is the coil voltage and frequency?
The contactor assembly uses a 110VAC coil rated for 50/60Hz operation.
Does it include an external interlock and wiring?
Yes, it includes an external interlock with power and auxiliary wiring.
What is the AC-3 current and kW rating?
It is rated 25A AC-3 with a power rating of 12.5kW in AC.
Which standards does this assembly conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-1, UL508, and CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
It carries a 15 HP rating at 480V under UL/CSA.
Safety note: Install and commission only by qualified personnel. Isolate power before wiring or maintenance and follow applicable IEC/EN, UL, and CSA standards alongside the manufacturer’s instructions.
| Manufacturer Part Number | BFA02542110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975174654 |
| Coil Voltage | 110V |
