BFA02542048 - REVERSING CONTACTOR 25A 48/50-60
MPN: BFA02542048
Special Price
£241.81
£201.51
Regular Price
£403.02
Why Choose the BFA02542048?

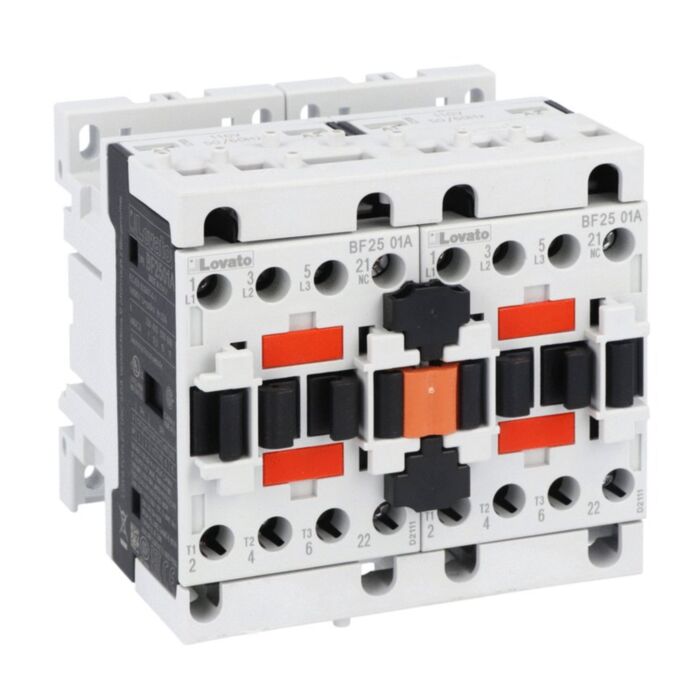

Lovato’s BFA02542048 reversing contactor assembly delivers dependable motor direction control in demanding applications. This open frame unit features an external interlock with power and auxiliary wiring, streamlining panel integration. An AC coil rated 48VAC 50/60Hz ensures consistent operation, while its AC‑3 performance of 25A and 12.5kW supports typical three‑phase loads. UL/CSA horsepower at 480V is 15 HP, aligning with common industrial standards.
Built to recognised norms, this assembly conforms to IEC/EN 60947-1 and IEC/EN 60947-4-1, as well as UL508 and CSA C22.2 n° 14 for North American acceptance. The BFA025 designation and 760 g weight aid identification and handling. A Sustainability certification underscores responsible manufacture, while the robust Lovato design helps ensure reliable performance across panel‑built motor control systems.
Key Benefits
- 48VAC 50/60Hz AC coil for consistent control performance and compatibility.
- External interlock with power and auxiliary wiring simplifies safe reversing logic.
- AC-3 rating 25A with 12.5kW supports demanding three-phase motor loads.
- UL/CSA 15 HP at 480V suits common North American motor duties.
- Conforms to IEC/EN 60947 and UL508/CSA for assured compliance.
- Open frame format enables straightforward integration within control panels.
- BFA025 series designation and 760 g weight ease selection and handling.
Technical Specification
- Product type designation: BFA025
- Weight: 760 g
What’s Included
- Lovato BFA02542048 reversing contactor assembly (open frame)
- External interlock fitted
- Power and auxiliary wiring included
- Installation and safety information
Applications
- Reversing control of three-phase industrial motors
- Conveyors and material handling systems requiring direction change
- Pumps and compressors with forward/reverse operation
- Fans, blowers and HVAC plant motor control
- Machine tools and automated machinery panels
Frequently Asked Questions
What coil voltage does the BFA02542048 use?
It has an AC coil with a contactor coil voltage of 48VAC 50/60Hz.
What are the AC-3 current and power ratings?
The assembly is rated 25A AC3 in AC with a motor power of 12.5kW.
Does it include an interlock and wiring?
Yes. It is supplied with an external interlock with power and auxiliary wiring.
What approvals and standards does it meet?
It conforms to IEC/EN 60947-1 and 60947-4-1, plus UL508 and CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
The UL/CSA horsepower rating at 480V is 15 HP.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before work, verify the 48VAC coil supply, and follow IEC/EN 60947 and local regulations to ensure safe operation.
| Manufacturer Part Number | BFA02542048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975181324 |
| Coil Voltage | 48V |
