BFA02542024 - REVERSING CONTACTOR 25A 24/50-60
MPN: BFA02542024
Special Price
£241.81
£201.51
Regular Price
£403.02
Why Choose the BFA02542024?

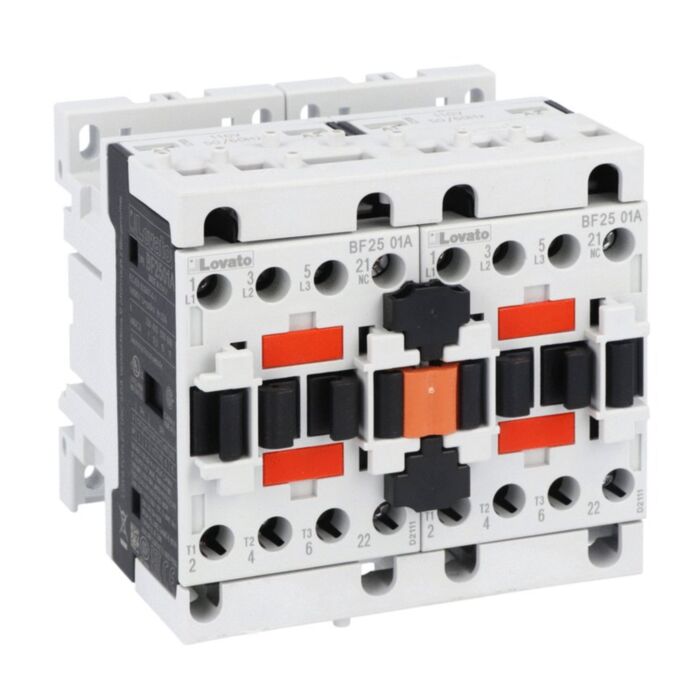

Lovato BFA02542024 reversing contactor assembly with AC coil, 24VAC 50/60Hz, is engineered for reliable forward/reverse motor control. This open frame unit features an external interlock with power and auxiliary wiring, simplifying panel build and ensuring coordinated operation. Rated 25A AC‑3 and 12.5kW in AC, the assembly provides robust performance for industrial control applications.
Compliant with IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14, this Lovato assembly (designation BFA025) carries a UL/CSA 15 HP rating at 480 V. Weighing 760 g and listed with Sustainability certification, it integrates cleanly into control panels. Choose a proven reversing contactor assembly for dependable service and straightforward specification.
Key Benefits
- 24VAC 50/60Hz AC coil suits common control supplies.
- External interlock with power and auxiliary wiring enables coordinated reversing.
- 25A AC-3, 12.5kW rating supports demanding motor reversing duty.
- UL/CSA 15 HP at 480V rating for compliant installations.
- Conforms to IEC/EN 60947-1 and 60947-4-1 for proven performance.
- Open frame construction as specified for straightforward panel integration.
Technical Specification
- Product type designation: BFA025
- Weight: 760 g
What’s Included
- Lovato BFA02542024 reversing contactor assembly
- External interlock with power and auxiliary wiring
- AC coil 24VAC 50/60Hz
Applications
- Industrial motor reversing control panels
- Machinery requiring forward/reverse contactor assemblies
- Automation systems adhering to IEC/EN 60947 standards
- Installations referencing UL/CSA ratings up to 15 HP at 480 V
Frequently Asked Questions
What coil voltage does this assembly use?
It uses a 24VAC 50/60Hz AC coil.
What is the AC-3 duty rating?
It is rated 25A AC-3 with a power rating of 12.5kW in AC.
Does it include an interlock and wiring?
Yes. It is open frame with an external interlock with power and auxiliary wiring.
Which standards does it comply with?
IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
It carries a 15 HP rating at 480V.
Safety note: Install and commission only by qualified personnel. Always isolate power before work and follow applicable IEC/EN and UL/CSA standards and manufacturer instructions.
| Manufacturer Part Number | BFA02542024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975183113 |
| Coil Voltage | 24V |
