BFA01842048 - REVERSING CONTACTOR 18A AC3 48/50-60

Why Choose the BFA01842048?

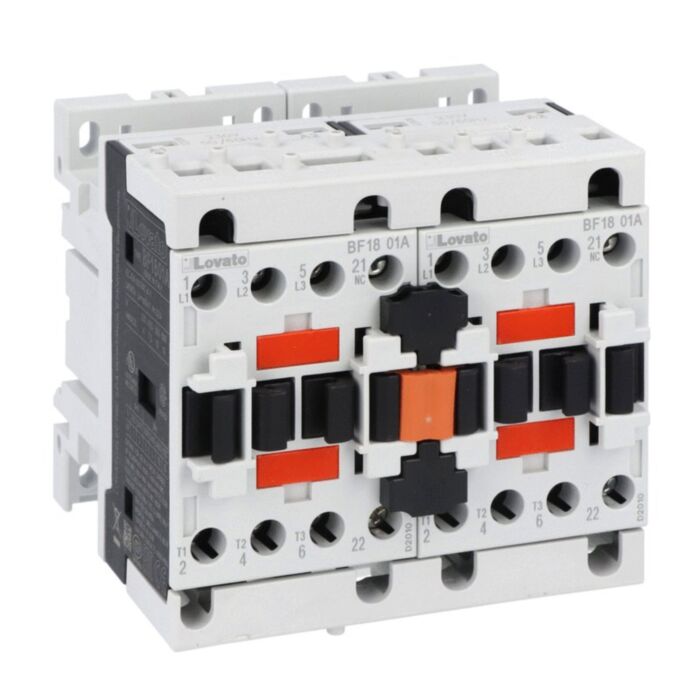

Lovato’s BFA01842048 reversing contactor assembly is designed for dependable motor direction control. This open-frame unit uses an AC coil rated 48VAC 50/60Hz, and features an external interlock with power and auxiliary wiring for coordinated operation. With an AC-3 current rating of 18A and 7.5kW motor power, it delivers robust performance in control panels where precise, repeatable reversing is essential.

Designated BFA018, this assembly carries a UL/CSA horsepower rating of 10 HP at 480V and conforms to IEC/EN 60947-1 and 60947-4-1, plus UL508 and CSA C22.2 n° 14. The open-frame design aids integration and inspection, and the 760 g weight suits varied panel layouts. Manufactured by Lovato, it aligns with sustainability certification and supports consistent specification across projects.

Key Benefits

• 48VAC 50/60Hz AC coil for straightforward control circuit compatibility.
• External interlock with power and auxiliary wiring simplifies coordinated reversing.
• Rated 18A AC-3 and 7.5 kW for dependable motor duty.
• UL/CSA 10 HP at 480V supports North American installations.
• Open-frame construction enables easy panel integration and inspection access.
• Conforms to IEC/EN 60947, plus UL508 and CSA C22.2 No.14.
• Lovato BFA018 designation allows clear identification within documentation.

Technical Specification

• Product type designation: BFA018
• Weight: 760 g

What’s Included

• Lovato BFA01842048 reversing contactor assembly (open frame)
• External interlock with power and auxiliary wiring
• Manufacturer datasheet and product documentation (downloadable)
• Product labels and conformity markings

Applications

• Motor direction control where reliable forward/reverse operation is required
• Conveyors, pumps and fans requiring dependable reversing duty
• Machinery needing IEC/EN 60947 compliant controlgear
• Control panels using 48VAC coil control with UL/CSA horsepower requirements

Safety note: Install and commission only by qualified personnel. Isolate power before work and follow all applicable IEC/EN, UL and CSA standards and the manufacturer’s instructions.
