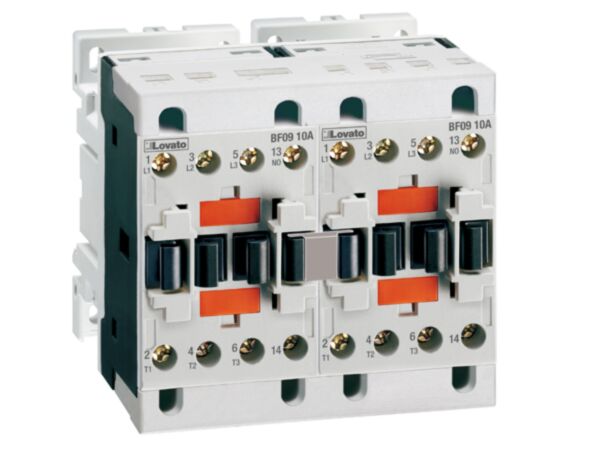

BFA01242230 - REVERSING CONTACTOR 230/50-60 12A AC3
MPN: BFA01242230
Special Price
£155.74
£129.78
Regular Price
£259.56
Why Choose the BFA01242230?
Lovato’s BFA01242230 reversing contactor assembly delivers dependable motor direction control in a ready-to-install package. This open-frame unit features an AC coil rated 230VAC 50/60Hz and an external interlock with factory power and auxiliary wiring to simplify panel building. Rated 12A AC-3 with 5.7kW motor power, it offers a robust, space-efficient solution for industrial automation and machine control applications.
Part of Lovato’s BFA012 reversing contactor assemblies range, this assembly carries 7.5HP at 480V UL/CSA ratings and conforms to IEC/EN 60947-1 and 60947-4-1, as well as UL508 CSA C22.2 n° 14. Weighing 760 g and supplied open frame, it integrates cleanly into control panels, while the Sustainability certification supports procurement goals without compromising performance or installation efficiency.
Key Benefits
- External interlock with pre-wired power and auxiliary circuits streamlines installation.
- 230VAC 50/60Hz AC coil suits standard control voltages.
- AC-3 12A, 5.7kW rating supports dependable motor reversing duty.
- UL/CSA 7.5HP at 480V provides a clearly defined performance rating.
- Open frame format integrates easily into control panels and assemblies.
- Conforms to IEC/EN 60947 and UL508 CSA C22.2 n° 14.
- 760 g weight aids straightforward handling and panel mounting.
- Sustainability certification supports responsible procurement policies.
Technical Specification
- Product type designation: BFA012
- Weight: 760 g
What’s Included
- Reversing contactor assembly (open frame)
- External interlock with pre-fitted power and auxiliary wiring
- 230VAC 50/60Hz AC coil installed
- Product datasheet (downloadable)
Applications
- Forward/reverse control of three-phase motors in industrial machinery.
- Conveyor and material handling direction control.
- Pump and fan reversing where safe direction change is required.
- OEM equipment and control panel builds using open-frame components.
- Machine tools and packaging systems requiring compact reversing assemblies.
Frequently Asked Questions
What coil voltage does this assembly use?
It has an AC coil rated at 230VAC 50/60Hz.
Is an interlock and wiring included?
Yes, it includes an external interlock with power and auxiliary wiring.
What are its AC-3 current and power ratings?
It is rated 12A AC-3 with a 5.7kW motor power rating.
What is the UL/CSA horsepower rating at 480V?
The UL/CSA rating is 7.5 HP at 480V.
Which standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-4-1, plus UL508 and CSA C22.2 n° 14.
Safety note: Installation and commissioning must be performed by qualified personnel. Isolate all power before work, follow the manufacturer’s instructions, and observe IEC/EN 60947 requirements and proper motor protection and interlocking.
| Manufacturer Part Number | BFA01242230 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975159439 |
| Coil Voltage | 230V |
