BFA01242024 - REVERSING CONTACTOR 24/50-60 12A AC3
MPN: BFA01242024
Special Price
£155.74
£129.78
Regular Price
£259.56
Why Choose the BFA01242024?

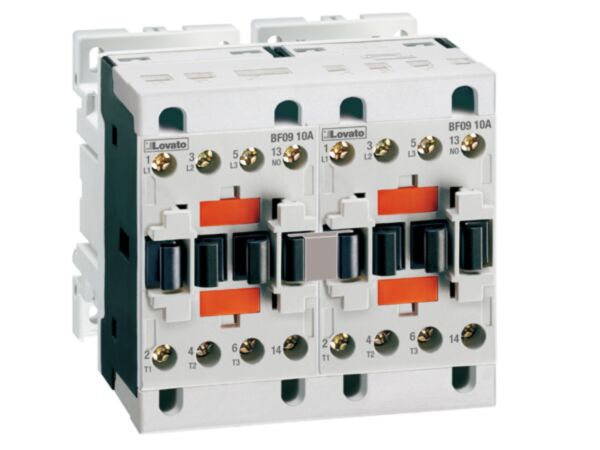

The Lovato BFA01242024 reversing contactor assembly delivers dependable forward/reverse motor control in a compact, open-frame build. It features an AC coil rated 24VAC 50/60Hz and an external interlock with power and auxiliary wiring already in place. With AC-3 performance of 12A and 5.7kW, plus a UL/CSA horsepower rating of 7.5HP at 480V, this prewired unit streamlines panel integration and commissioning.
Designed to meet IEC/EN 60947-1 and 60947-4-1, and UL508 CSA C22.2 n° 14, the Lovato BFA012 (weight 760 g) offers assured conformity for regulated builds. Its product type is reversing contactor assemblies, with an open frame, external interlock and AC coil for straightforward diagnostics and maintenance. Backed by Lovato manufacturing and a Sustainability certification listing, it provides a robust, clearly specified solution for control panels.
Key Benefits
- Open-frame reversing contactor assembly simplifies panel layout and inspection.
- External interlock with power and auxiliary wiring reduces installation time.
- 24VAC 50/60Hz AC coil suits common control transformer supplies.
- AC-3 12A, 5.7kW capacity supports dependable motor reversing.
- UL/CSA rating of 7.5HP at 480V expands application compatibility.
- Conforms to IEC/EN 60947 standards for assured compliance.
- Lovato BFA012 designation enables straightforward specification and replacement.
Technical Specification
- Product type designation: BFA012
- Weight: 760 g
What’s Included
- Reversing contactor assembly (open frame), Lovato BFA012
- External interlock with prewired power and auxiliary connections
- 24VAC 50/60Hz AC coil installed
- Basic installation and safety instructions
Applications
- Forward/reverse control of AC motors within AC-3 12A, 5.7kW limits
- Control panels using 24VAC 50/60Hz coils for motor direction switching
- Systems requiring UL/CSA 7.5HP at 480V capability
- IEC/EN 60947-compliant industrial automation and machinery projects
Frequently Asked Questions
What is the coil voltage for the BFA01242024?
It has a 24VAC 50/60Hz AC coil.
What is its AC-3 motor duty rating?
It is rated AC-3 12A in AC with 5.7kW capacity.
What horsepower is it rated for at 480V under UL/CSA?
It carries a 7.5 HP rating at 480V per UL/CSA.
Does it include an external interlock and wiring?
Yes—an external interlock with power and auxiliary wiring is included.
Which standards does this assembly conform to?
IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
Safety note: Installation must be performed by qualified personnel. Isolate power before work, confirm the coil is 24VAC 50/60Hz, and follow applicable IEC/EN and UL/CSA standards.
| Manufacturer Part Number | BFA01242024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975154397 |
| Coil Voltage | 24V |
