BFA00942024 - REVERSING CONTACTOR 9A AC3 24/50-60HZ
MPN: BFA00942024
Special Price
£136.61
£113.84
Regular Price
£227.68
Why Choose the BFA00942024?

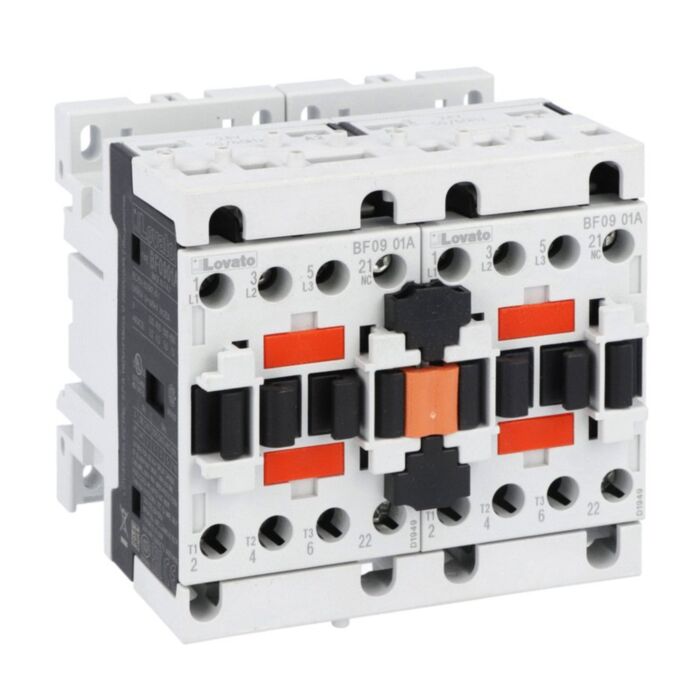

The Lovato BFA00942024 is a reversing contactor assembly engineered for dependable motor direction control. It features an AC coil rated 24VAC 50/60Hz, with an AC-3 utilisation category of 9A in AC and 4.2kW. An open frame format with an external interlock, complete with power and auxiliary wiring, streamlines integration into control panels and supports efficient forward/reverse switching in space‑constrained industrial installations.
Built to recognised standards, this assembly conforms to IEC/EN 60947-1 and IEC/EN 60947-4-1, and carries UL508 CSA C22.2 n° 14 approval. It delivers a UL/CSA horsepower rating of 5 HP at 480V, with product type designation BFA009 and a weight of 760 g. Backed by Lovato’s sustainability certification, it offers a reliable, specification‑led choice for OEMs and panel builders seeking consistent, compliant motor reversing.
Key Benefits
- 24VAC 50/60Hz AC coil suits common control transformer supplies
- 9A AC-3 rating and 4.2kW power handling for robust motor control
- External interlock with power and auxiliary wiring expedites installation
- Open frame design integrates easily into control panels and OEM builds
- UL/CSA 5 HP at 480V supports global specification requirements
- Conforms to IEC/EN 60947-1 and 60947-4-1 for assured compliance
- Manageable 760 g unit simplifies handling and panel layout
Technical Specification
- Product type designation: BFA009
- Weight: 760 g
What’s Included
- Reversing contactor assembly with external interlock, power and auxiliary wiring
- Fitted 24VAC 50/60Hz AC coil
- Manufacturer packaging for protection during transit
Applications
- Forward and reverse control of AC motors in machinery
- Conveyor and material handling direction control
- Pumps, fans and compressors requiring reversible operation
- OEM control panels needing IEC/UL compliant motor reversing
- General industrial automation requiring compact reversing assemblies
Frequently Asked Questions
What coil voltage does this assembly use?
It uses a 24VAC 50/60Hz AC coil as standard.
What is the AC-3 current and power rating?
It is rated 9A AC3 in AC with a power rating of 4.2kW.
Is the unit enclosed?
No, it is an open frame design with an external interlock and wiring.
Which standards does it conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
It is rated at 5 HP at 480V under UL/CSA.
Safety note: Install and commission only by qualified personnel. Always isolate power before working on equipment and follow applicable standards and local regulations.
| Manufacturer Part Number | BFA00942024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975156056 |
| Coil Voltage | 24V |
