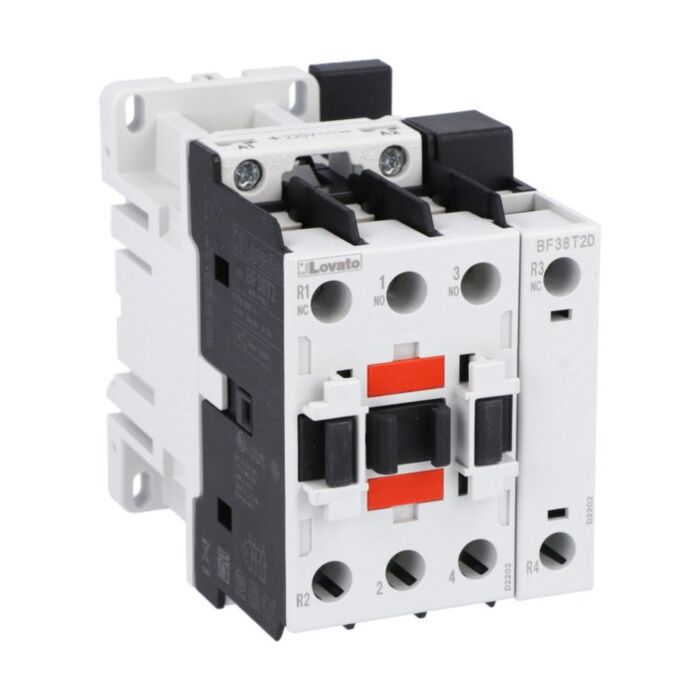

BF38T2D220 - 4P CONTACTOR 2NO+2NC 56A AC1 220VDC
MPN: BF38T2D220
Special Price
£276.24
£230.20
Regular Price
£460.39
Why Choose the BF38T2D220?
Engineered for reliable switching, the Lovato BF38T2D220 four-pole contactor combines a 220V DC coil with 2NO and 2NC contacts for versatile control. With Ith (AC1) of 56A and AC3 performance of 38A / 18.5Kw at 400V, SKU BF38T2D220 suits demanding motor and load applications. Screw mounting or 35mm DIN rail options streamline installation in UK control panels and OEM builds.
Built to international standards IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA approvals, this BF38-series device offers robust insulation (Ui 690 V) and impulse withstand (Uimp 6 kV). A long mechanical life of 20,000,000 cycles and a wide -50 to 70 °C operating range ensure durability in harsh environments up to 3000 m altitude. Ideal for panels needing dependable four-pole isolation and control.
Key Benefits
- Robust 56 A Ith (AC1) capacity for dependable general-duty switching.
- Strong AC3 rating: 38A / 18.5Kw at 400V for motor loads.
- Four-pole configuration with 2NO and 2NC for flexible control schemes.
- 220V DC coil delivers stable, consistent actuation in control systems.
- Screw or 35mm DIN rail mounting simplifies installation and maintenance.
- Wide -50 to 70 °C operating temperature range for harsh environments.
- High insulation and impulse withstand: Ui 690 V, Uimp 6 kV.
- Long mechanical life rated at 20,000,000 operations.
Technical Specification
- Product type designation: BF38
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 670 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF38T2D220 four-pole contactor
- Manufacturer datasheet (digital access)
- Basic installation leaflet (where provided)
- Protective packaging for transit
Applications
- Three-phase motor control up to 38A AC3 at 400V
- Resistive load switching up to 56A (AC1)
- Power distribution and isolation in control panels
- Heating and lighting circuits requiring four-pole switching
- OEM machinery and automation using 220V DC control
Frequently Asked Questions
What is the coil voltage and type?
It uses a 220V DC coil for actuation.
What are the current ratings for AC1 and AC3?
Ith (AC1) is 56A, and AC3 at 400V is 38A / 18.5Kw.
How is this contactor mounted?
It supports screw mounting or 35mm DIN rail installation.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA.
What is the mechanical life rating?
It is rated for 20,000,000 mechanical operations.
Safety note: Install and service only by qualified personnel. Isolate power before work, verify 220V DC coil supply, and tighten terminals to specified torque. Operate within the stated ratings and standards.
| Manufacturer Part Number | BF38T2D220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167229 |
| Coil Voltage | 220VDC |
