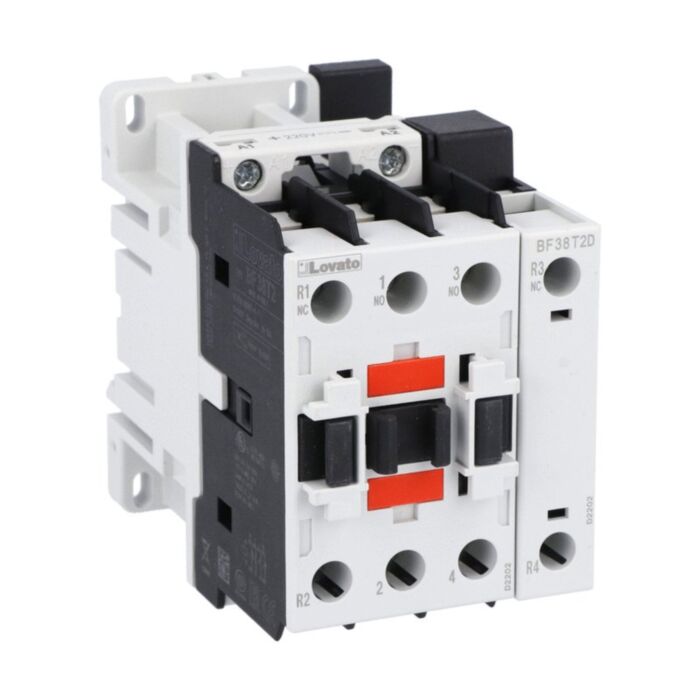

BF38T2D125 - 4P CONTACTOR 2NO+2NC 56A AC1 125VDC
MPN: BF38T2D125
Special Price
£276.24
£230.20
Regular Price
£460.39
Why Choose the BF38T2D125?
Engineered by Lovato, the BF38T2D125 is a robust four-pole contactor designed for dependable control across industrial panels. Rated Ith 56 A (AC1) and Ie 38 A (AC3) at 400 V with 18.5 kW, it features a 125 V DC coil and a 2NO/2NC contact arrangement. Flexible screw or 35 mm DIN rail mounting simplifies retrofit and new build installations.
Built for longevity and harsh environments, this BF38 series contactor offers Ui 690 V, Uimp 6 kV, and a mechanical life of 20,000,000 cycles. It operates from −50 to 70 °C, up to 3000 m altitude, pollution degree 3. Compliance with IEC/EN/BS, UL and CSA standards ensures assured performance, with 2.5–3 Nm terminal torque aiding secure terminations.
Key Benefits
- Four-pole switching with 2NO and 2NC contact configuration.
- 56 A AC1 rating for reliable resistive load control.
- 38 A AC3 at 400 V, up to 18.5 kW motors.
- 125 V DC coil suits DC control circuits.
- Rated insulation 690 V and impulse withstand 6 kV.
- Operates from −50 to 70 °C for harsh environments.
- Screw or 35 mm DIN rail mounting flexibility.
- Mechanical life of 20,000,000 cycles enhances durability.
Technical Specification
- Product type designation: BF38
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 665 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF38T2D125 four-pole contactor (2NO + 2NC)
- 125 V DC coil integrated
- Downloadable manufacturer datasheet
Applications
- Motor starters at 400 V AC3 loads, up to 18.5 kW
- Pumps, fans and compressors in industrial control panels
- Resistive heating and lighting circuits under AC1 duty
- General industrial automation and machinery switching
- Material handling and conveyor systems
Frequently Asked Questions
What is the coil voltage and type for the BF38T2D125?
It is fitted with a 125 V DC coil for reliable actuation.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What are the key current and power ratings?
Ith is 56 A (AC1); Ie is 38 A (AC3) at 400 V, 18.5 kW.
What environmental limits does it meet?
Operating temperature is −50 to 70 °C, up to 3000 m altitude, pollution degree 3.
Which standards does the contactor conform to?
IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and -4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power sources before wiring, tighten terminals to 2.5–3 Nm, and operate within the specified ratings and environmental limits.
| Manufacturer Part Number | BF38T2D125 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167212 |
| Coil Voltage | 125VDC |
