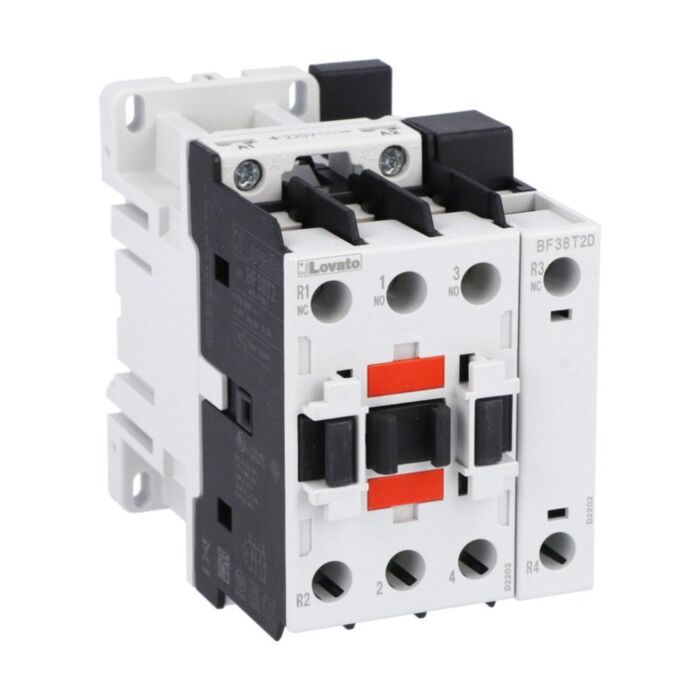

BF38T2D110 - 4P CONTACTOR 2NO+2NC 56A AC1 110VDC
MPN: BF38T2D110
Special Price
£276.24
£230.20
Regular Price
£460.39
Why Choose the BF38T2D110?
The Lovato BF38T2D110 is a robust four-pole contactor designed for dependable industrial control. This BF38 series unit features a 110V DC coil and a 2NO/2NC contact arrangement, providing flexible switching for a wide range of circuits. Rated at 56A AC1 and 38A AC3 at 400V (18.5Kw), the BF38T2D110 combines high performance with compact installation options via screw fixing or 35mm DIN rail mounting.
Engineered for demanding environments, the contactor offers a Ui of 690 V, Uimp of 6 kV, and a mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C, up to 3000 m altitude, and meets IEC/EN/BS 60947 and UL/CSA standards. With clear terminal torque guidance and Pollution Degree 3 rating, it ensures reliable integration in control panels and motor starter assemblies.
Key Benefits
- High switching capacity: 56A AC1 and 38A AC3 at 400V.
- 110V DC coil for stable, efficient control in automation panels.
- Four-pole, 2NO/2NC configuration enhances circuit flexibility.
- Compact installation via screw or 35mm DIN rail mounting.
- Durable design with 20,000,000 mechanical life cycles.
- Wide operating temperature range from -50 to 70 °C.
- Enhanced electrical ratings: Ui 690 V and Uimp 6 kV.
Technical Specification
- Product type designation: BF38
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 660 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF38T2D110 four-pole contactor
- Manufacturer technical datasheet (downloadable)
Applications
- Motor starters (AC-3 duty) up to 18.5Kw at 400V
- General-purpose switching in IEC AC-1 circuits up to 56A
- Control panels using 35mm DIN rail or screw mounting
- Systems requiring a 2NO/2NC four-pole configuration
- Installations designed to IEC/EN/BS 60947 standards
Frequently Asked Questions
What is the coil voltage for the BF38T2D110?
It has a 110V DC coil for control circuit actuation.
How many poles and contacts does this contactor have?
It is a four-pole contactor with a 2NO and 2NC arrangement.
What currents can it handle in AC1 and AC3?
It is rated 56A in AC1 and 38A in AC3 at 400V (18.5Kw).
How can it be mounted in a panel?
It supports screw mounting or standard 35mm DIN rail mounting.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947 and equivalent UL/CSA standards.
Safety note: Install and service only by qualified personnel. Always isolate power before work and tighten terminals to the specified 2.5 to 3 Nm to ensure safe, reliable operation.
| Manufacturer Part Number | BF38T2D110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167205 |
| Coil Voltage | 110VDC |
