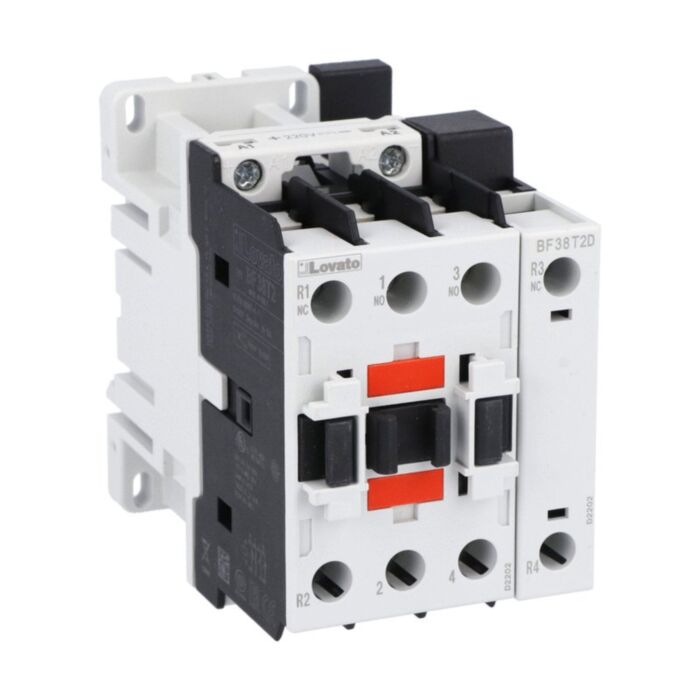

BF38T2D060 - 4P CONTACTOR 2NO+2NC 56A AC1 60VDC
MPN: BF38T2D060
Special Price
£276.24
£230.20
Regular Price
£460.39
Why Choose the BF38T2D060?
Lovato BF38T2D060 is a robust four‑pole contactor for dependable switching in industrial control panels. With a 60V DC coil, 56A AC1 rating, and 38A/18.5kW AC3 at 400V, it handles motor and resistive loads with confidence. Flexible screw mounting or 35mm DIN rail fitting ensures quick integration, while the BF38 platform delivers consistent performance for UK OEMs and maintenance teams.
Engineered for demanding environments, this contactor offers Ui 690V and 6kV impulse withstand, Pollution Degree 3, and reliable operation from –50°C to 70°C up to 3000 m. A 20,000,000‑cycle mechanical life boosts uptime, and compliance with IEC/EN/BS 60947‑1/‑4‑1, UL 60947‑1/‑4‑1 and CSA C22.2 No. 60947‑1/‑4‑1 supports specification. Secure connections are assured with 2.5 to 3 Nm terminal torque.
Key Benefits
- Four-pole design supports 56A AC1 and 38A/18.5kW AC3 at 400V.
- 60V DC coil simplifies control wiring in DC-powered systems.
- Screw or 35mm DIN rail mounting speeds panel installation.
- High insulation rating Ui 690V and 6kV impulse withstand.
- Reliable in harsh temperatures from –50°C to 70°C.
- Long 20,000,000-cycle mechanical life reduces downtime.
- Certified to IEC/EN/BS, UL and CSA standards.
Technical Specification
- Product type designation: BF38
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 660 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF38T2D060 four-pole contactor
- Manufacturer datasheet (downloadable)
- Standard packaging for transit protection
Applications
- Motor starters for AC‑3 duty up to 18.5kW at 400V
- Resistive and heating loads within AC‑1 ratings
- Industrial automation and control panels
- HVAC systems, pumps and compressors control circuits
- Power distribution and general machinery switching
Frequently Asked Questions
What is the coil voltage and type?
The BF38T2D060 uses a DC coil rated at 60 V.
What are its main current and power ratings?
It is rated 56 A in AC1, and 38 A/18.5 kW in AC3 at 400 V.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail installation.
Which standards does it conform to?
IEC/EN/BS 60947‑1/‑4‑1, UL 60947‑1/‑4‑1, and CSA C22.2 No. 60947‑1/‑4‑1.
What is the operating temperature range?
It operates from –50°C to 70°C; storage is –60°C to 80°C.
Safety note: Installation and commissioning must be performed by qualified personnel. Isolate all power before work, tighten terminals to 2.5–3 Nm, and operate only within the specified voltage, current and environmental ratings.
| Manufacturer Part Number | BF38T2D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167199 |
| Coil Voltage | 60VDC |
