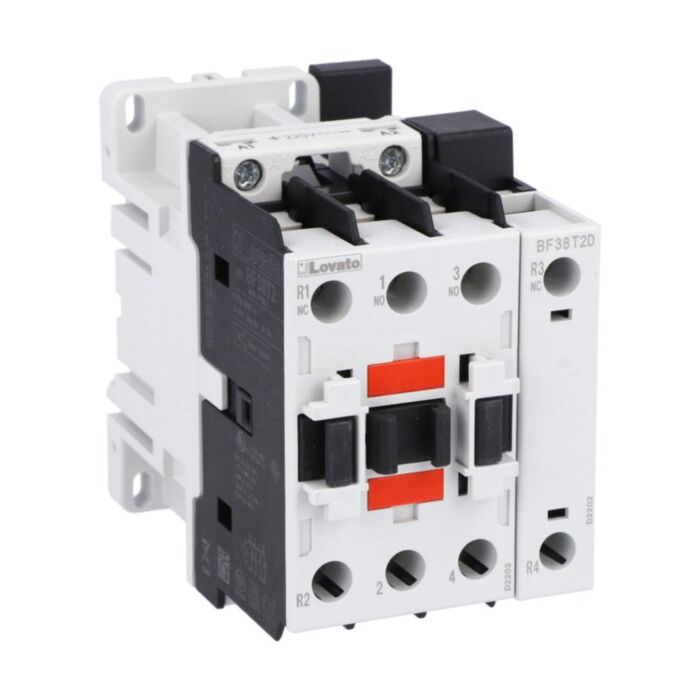

BF38T2D012 - 4P CONTACTOR 2NO+2NC 56A AC1 12VDC

Why Choose the BF38T2D012?

The Lovato BF38T2D012 is a robust four-pole contactor engineered for dependable switching in industrial control panels. With a 56 A AC1 rating and 38 A AC3 at 400 V, it handles resistive and motor loads with confidence. The 12 V DC coil enables low-voltage control, and the integrated 2NO + 2NC contacts offer flexible control configurations.

Built for longevity and harsh environments, it delivers a mechanical life of 20,000,000 cycles and operates from -50 to 70 °C. Rated Ui 690 V and Uimp 6 kV, it mounts quickly via screw terminals or 35 mm DIN rail (terminal torque 2.5 to 3 Nm). Compliant with IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA C22.2 No 60947-1/-4-1.

Key Benefits

• Four-pole design with integrated 2NO + 2NC for versatile control.
• Strong 56 A AC1 rating for high resistive loads.
• 38 A AC3 at 400 V for reliable motor switching.
• 12 V DC coil suits low-voltage control circuits.
• Quick screw or 35 mm DIN rail mounting options.
• High endurance: 20,000,000 mechanical cycles for long service life.
• Rated Ui 690 V and Uimp 6 kV for robust insulation.
• UL/CSA 30 HP at 480 V supports sizeable motor loads.

Technical Specification

• Product type designation: BF38
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 56 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 700 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF38T2D012 four-pole contactor (BF38 series)
• Pre-fitted 12 V DC coil
• Integrated 2NO + 2NC contacts
• Screw terminal and DIN rail mounting interfaces

Applications

• Motor control up to 38 A AC3 at 400 V
• Resistive load switching up to 56 A AC1
• HVAC systems, pumps and compressors in control panels
• OEM machinery, conveyors and process equipment
• Distribution boards requiring 12 V DC coil control

Safety note: Install and commission only by qualified personnel. Isolate power before work, observe specified terminal torque, and ensure environmental conditions match the stated ratings and standards.
