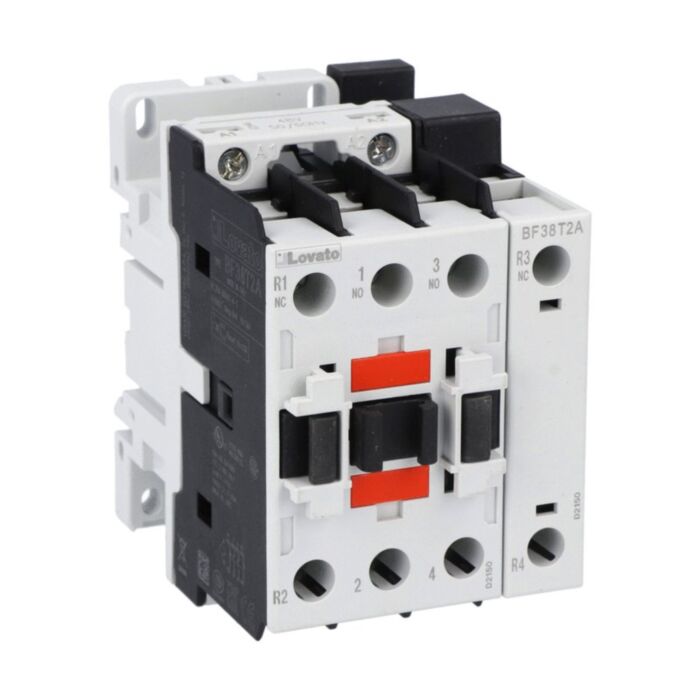

BF38T2A22060 - 4P CONTACTOR 2NO+2NC 56A 220V 60HZ
MPN: BF38T2A22060
Special Price
£243.79
£203.16
Regular Price
£406.32
Why Choose the BF38T2A22060?
Designed for reliable motor and load switching, the Lovato BF38 four‑pole contactor SKU BF38T2A22060 combines a 220 VAC 60 Hz AC coil with a versatile 2NO + 2NC configuration. Rated 56 A AC1 and 38 A/18.5 kW AC3 at 400 V, it offers robust performance with 690 V insulation, 6 kV impulse withstand, and quick screw or 35 mm DIN rail mounting.
Built for demanding environments, the BF38 delivers up to 20,000,000 mechanical cycles and dependable operation from −50 to 70 °C, at altitudes up to 3000 m (pollution degree 3). With UL/CSA 30 HP at 480 V ratings and conformity to IEC/EN/BS 60947 and UL/CSA standards, this contactor suits control panels where longevity, safety and international compliance are essential.
Key Benefits
- Versatile four‑pole, 2NO + 2NC configuration for flexible control schemes.
- Strong 56 A AC1 rating for reliable resistive load switching.
- AC3 38 A/18.5 kW at 400 V for motor duties.
- Wide −50 to 70 °C operating temperature for harsh conditions.
- High insulation 690 V and 6 kV impulse withstand for safety.
- Quick screw or 35 mm DIN rail mounting reduces installation time.
- Long mechanical life of 20,000,000 cycles for durability.
- UL/CSA 30 HP at 480 V supports North American compliance.
Technical Specification
- Product type designation: BF38
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 496 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF38T2A22060 four‑pole contactor (2NO + 2NC)
- Factory‑fitted AC coil, 220 VAC 60 Hz
- Installation and safety information
- Datasheet link for product specifications
Applications
- Motor starters up to 38 A/18.5 kW at 400 V (AC‑3)
- Resistive load switching up to 56 A (AC‑1)
- UL/CSA 30 HP at 480 V equipment
- HVAC, pumps and compressors control panels
- General industrial automation, distribution and lighting control
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
It has an AC coil rated 220 V at 60 Hz.
How many poles and what is the contact arrangement?
It provides four poles with 2 normally open and 2 normally closed contacts.
How is the contactor mounted in a panel?
It supports screw mounting or 35 mm DIN rail installation.
What are the main current and power ratings?
56 A AC1, and 38 A/18.5 kW AC3 at 400 V; UL/CSA 30 HP at 480 V.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA 60947 series.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power, apply specified torque, and operate within the stated ratings, temperatures and altitude while following all applicable standards and manufacturer instructions.
| Manufacturer Part Number | BF38T2A22060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975162378 |
| Coil Voltage | 220V |
