BF38T2A02460 - 4P CONTACTOR 2NO+2NC 56A 24V 60HZ
MPN: BF38T2A02460
Special Price
£243.79
£203.16
Regular Price
£406.32
Why Choose the BF38T2A02460?

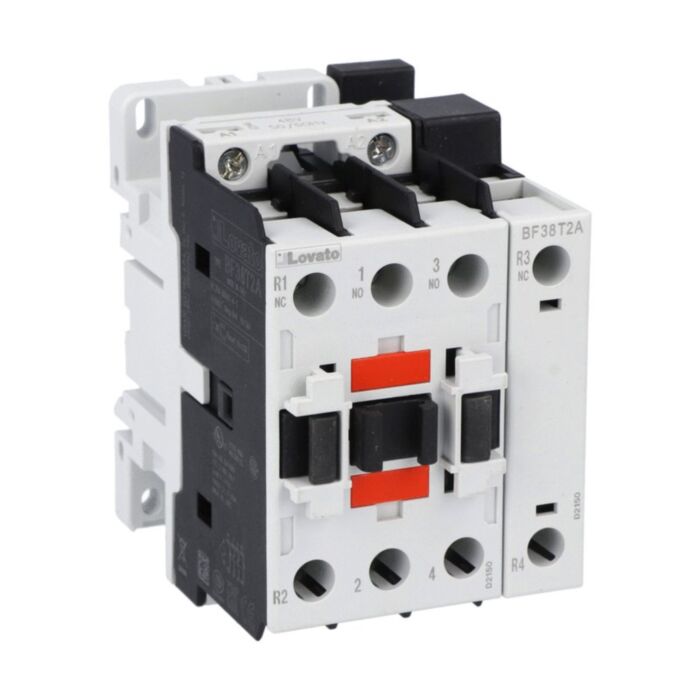

Engineered for dependable control, the Lovato BF38T2A02460 four‑pole contactor delivers robust switching for industrial panels. With a 24VAC 60Hz coil and AC1 Ith of 56A, SKU BF38T2A02460 handles demanding resistive loads with ease. AC3 performance at 400V is rated 38A/18.5kW, supporting motor applications. Flexible installation via screw fixing or 35mm DIN rail simplifies upgrades and maintenance in space‑constrained control cabinets.
Built to international standards, this BF38 series contactor offers 690V rated insulation and 6kV impulse withstand for reliable endurance. It features a mechanical life of 20,000,000 cycles, operates from −50 to 70 °C, and is tested to Pollution Degree 3 up to 3000 m altitude. Precision terminals with 2.5–3 Nm torque ensure secure connections and stable performance across diverse UK industrial environments.
Key Benefits
- Four‑pole design with 2NO/2NC for versatile control schemes
- 24VAC 60Hz coil simplifies integration with common control voltages
- High AC1 Ith 56A for reliable resistive load switching
- Strong AC3 rating 38A/18.5kW at 400V for motor duty
- Wide operating temperature −50 to 70 °C suits harsh environments
- Quick screw or 35mm DIN rail mounting for fast installation
- Long mechanical life 20,000,000 cycles reduces maintenance downtime
- Rated insulation 690V and 6kV impulse withstand enhances safety margins
Technical Specification
- Product type designation: BF38
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF38T2A02460 four‑pole contactor (2NO/2NC)
- 24VAC 60Hz coil pre‑fitted
- Installation and safety instructions
- Manufacturer datasheet
Applications
- Motor control circuits up to 38A/18.5kW AC3 at 400V
- Resistive load switching up to 56A AC1
- HVAC fans, pumps and compressors control panels
- Lighting, heating and distribution boards
Frequently Asked Questions
What is the coil voltage and frequency?
It has a 24VAC coil rated for 60Hz operation.
How many poles and contacts does this contactor have?
It is a four‑pole contactor with 2NO and 2NC contacts.
What are the AC3 ratings at 400V?
It is rated 38A and 18.5kW for AC3 duty at 400V.
Can it be mounted on a DIN rail?
Yes, it supports screw mounting or 35mm DIN rail installation.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA equivalents.
Safety note: Installation and commissioning must be carried out by qualified personnel. Always isolate the supply, follow the manufacturer’s instructions, and comply with applicable IEC/EN and local regulations.
| Manufacturer Part Number | BF38T2A02460 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975162347 |
| Coil Voltage | 24V |
