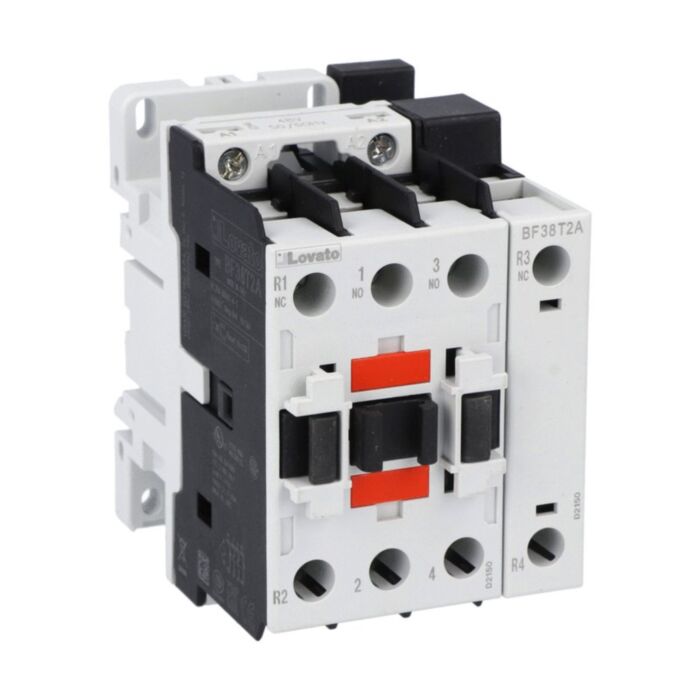

BF38T2A024 - 4P CONTACTOR 2NO+2NC 56A 24V 50/60HZ
MPN: BF38T2A024
Special Price
£243.79
£203.16
Regular Price
£406.32
Why Choose the BF38T2A024?
The Lovato BF38T2A024 is a robust four-pole contactor engineered for dependable switching in industrial control panels. Featuring a 24VAC 50/60Hz coil and 2NO/2NC contacts, it delivers 56A AC1 performance and 38A/18.5 kW AC3 at 400V for reliable motor and load control. The BF38 family offers strong endurance, making SKU BF38T2A024 a practical choice for OEMs, panel builders and maintenance teams seeking consistent, long-life operation.
Installation is straightforward with screw fixing or 35mm DIN rail mounting, supporting fast panel integration. Rated Ui 690 V and Uimp 6 kV, it withstands demanding environments, with a mechanical life of 20,000,000 cycles and a -50 to 70°C operating range. Compliant with IEC/EN/BS and UL/CSA standards and 30 HP at 480 V, BF38T2A024 offers proven performance up to 3000 m altitude.
Key Benefits
- Four-pole, 2NO/2NC configuration for versatile control schemes.
- 24VAC 50/60Hz coil simplifies integration with common control voltages.
- 56A AC1 rating suits high resistive load switching.
- 38A/18.5kW AC3 at 400V for reliable motor control.
- Screw or 35mm DIN rail mounting speeds panel assembly.
- High endurance: 20,000,000 mechanical cycles for long service life.
- Robust insulation: Ui 690V and impulse withstand Uimp 6kV.
- Wide operating temperature from -50 to 70°C for harsh environments.
Technical Specification
- Product type designation: BF38
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 516 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF38T2A024 four-pole contactor
- Manufacturer datasheet (PDF)
- Original packaging
Applications
- Motor starters up to 18.5 kW at 400 V AC3
- Resistive load switching up to 56 A AC1
- HVAC fans, pumps and compressors control circuits
- Power distribution and lighting control panels
- Industrial automation and machinery control cabinets
Frequently Asked Questions
What coil voltage and frequency does the BF38T2A024 use?
It has a 24VAC coil rated for 50/60Hz operation.
How many poles and what contact configuration are provided?
It is a four-pole contactor with 2NO and 2NC contacts.
What are the key current and power ratings?
It is rated 56A AC1 and 38A/18.5kW AC3 at 400V.
How can this contactor be mounted in a panel?
It supports screw mounting or 35mm DIN rail mounting.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA 60947-1/-4-1.
Safety note: Install and service only by qualified personnel with power isolated. Tighten terminals to 2.5 to 3 Nm and operate within the specified voltage, current and temperature limits.
| Manufacturer Part Number | BF38T2A024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975162293 |
| Coil Voltage | 24V |
