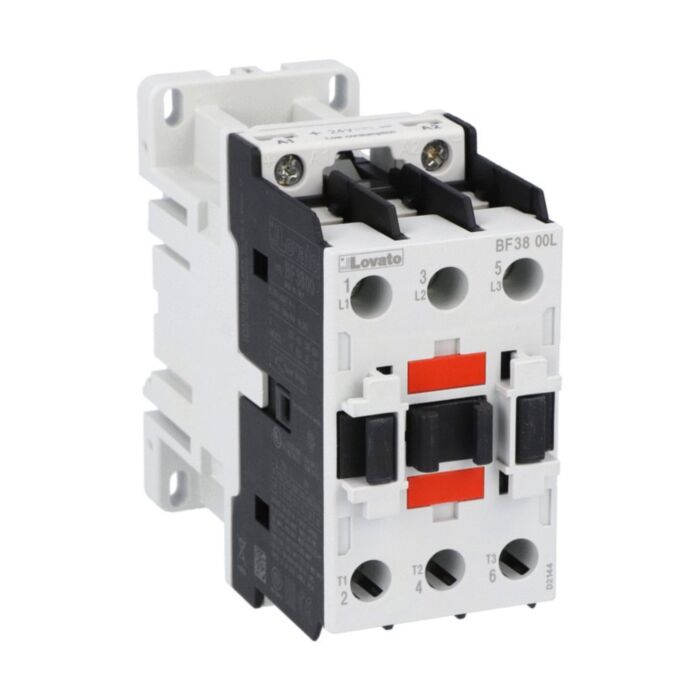

BF3800L048 - 3P CONTACTOR 38A AC3 48VDC LOW C.
MPN: BF3800L048
Special Price
£152.32
£126.93
Regular Price
£253.86
Why Choose the BF3800L048?
Engineered for dependable motor switching, the Lovato BF3800L048 three-pole contactor (SKU: BF3800L048) delivers 38A AC3 performance at 400V with an efficient 48V DC low-consumption coil. Flexible screw or 35mm DIN rail mounting simplifies panel build and retrofit. Designed to the BF38 platform, it integrates cleanly into industrial control panels where reliable AC-3 duty and compact installation are essential.
Built for endurance and safety, it features Ui 690V insulation, 6kV impulse withstand and a 20,000,000-cycle mechanical life. Rated Ith (IEC) 56A and 30 HP at 480V (UL/CSA), it performs from -50 to 70 °C up to 3000 m altitude. Conforms to IEC/EN/BS 60947-1/-4-1, UL and CSA standards, with 2.5 to 3 Nm terminal torque for secure, repeatable connections.
Key Benefits
- 38A AC3 at 400V for robust motor switching performance.
- Low-consumption 48V DC coil minimises control power demand.
- Screw or 35mm DIN rail mounting for fast, flexible installation.
- Wide -50 to 70 °C operating range suits harsh environments.
- 20,000,000 mechanical cycles deliver long service life.
- Ui 690V and Uimp 6 kV enhance insulation strength.
- Certified to IEC/EN/BS, UL and CSA standards.
Technical Specification
- Product type designation: BF38
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 564 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3800L048 three-pole contactor
- Manufacturer datasheet (digital download)
- Installation and safety instructions
- Factory packaging
Applications
- AC-3 motor switching up to 38A at 400V
- Circuits requiring Ith (IEC) 56 A capability
- Industrial control panels requiring IEC/EN, UL and CSA compliance
- Installations with ambient temperatures from -50 to 70 °C
- Panels using screw or 35mm DIN rail mounting
Frequently Asked Questions
What is the coil voltage and type?
The coil is a low-consumption DC type rated at 48 V.
How many poles does this contactor have?
It is a three-pole device.
What is the AC-3 rating at 400 V?
It is rated 38A AC3 with 18.5Kw power at 400 V.
What standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA equivalents.
What operating temperatures are supported?
The operating range is -50 to 70 °C.
Safety note: Always isolate power before installation, tighten terminals to 2.5 to 3 Nm, and commission the contactor within the specified temperature and altitude limits following applicable IEC/EN 60947 and local regulations.
| Manufacturer Part Number | BF3800L048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168813 |
| Coil Voltage | 48VDC |
