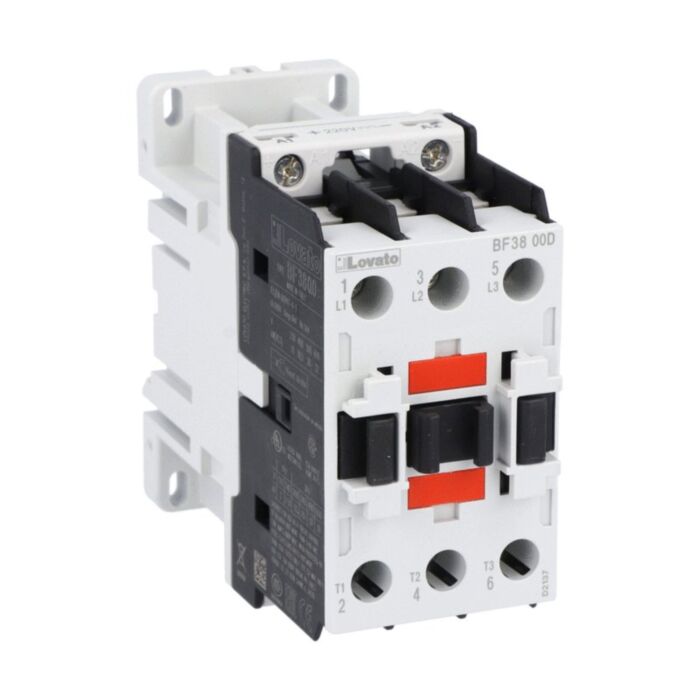

BF3800D220 - 3P CONTACTOR 38A AC3 220VDC
MPN: BF3800D220
Special Price
£180.07
£150.06
Regular Price
£300.11
Why Choose the BF3800D220?
Designed for dependable motor control, the Lovato BF3800D220 three-pole contactor delivers 38A AC3 at 400V with a 220V DC coil for precise actuation. With a rated insulation voltage of 690 V and 6 kV impulse withstand, it suits demanding industrial panels. Screw or 35mm DIN rail mounting provides flexible installation. The BF38 product designation aligns with Lovato's range for straightforward specification and replacement.
Built for longevity and harsh environments, it offers 20,000,000 mechanical cycles and an operating temperature range from -50 to 70 °C, with storage from -60 to 80 °C. Rated AC1 current is 56 A, with UL/CSA 30 HP at 480V. It meets IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA standards, and is suitable up to 3000 m altitude, pollution degree 3.
Key Benefits
- 38A AC3 at 400V for reliable motor switching performance.
- 220V DC coil enables precise control from DC supply circuits.
- Dual mounting: screw fix or 35mm DIN rail compatibility.
- High insulation rating Ui 690 V; 6 kV impulse withstand.
- Long mechanical life rated at 20,000,000 operating cycles.
- Wide operating temperature range from -50 to 70 °C.
- UL/CSA 30 HP at 480V rating for motor applications.
- Compliant with IEC/EN/BS 60947-1 and 60947-4-1 standards.
Technical Specification
- Product type designation: BF38
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 564 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3800D220 three-pole contactor
- Installation and safety information
- Manufacturer packaging
Applications
- Motor starters up to 18.5 kW (AC3, 400V)
- General AC power switching up to 56 A (AC1)
- Pumps, fans, compressors and conveyors in control panels
- OEM machine building and automation panels
- DC control systems requiring a 220V DC coil
Frequently Asked Questions
What is the coil voltage and type?
This contactor uses a DC coil rated at 220 V.
How can the contactor be mounted?
It supports screw mounting or 35mm DIN rail installation.
What are the main current and power ratings?
It is rated 38A AC3 at 400V (18.5 kW) and 56 A AC1, with UL/CSA 30 HP at 480V.
What environmental limits should I observe?
Operating temperature is -50 to 70 °C, storage -60 to 80 °C, max altitude 3000 m, pollution degree 3.
Which standards does this product comply with?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/4-1, and CSA C22.2 60947-1/4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power sources before work, observe the specified terminal tightening torque, and adhere to the applicable standards and ratings.
| Manufacturer Part Number | BF3800D220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166734 |
| Coil Voltage | 220VDC |
