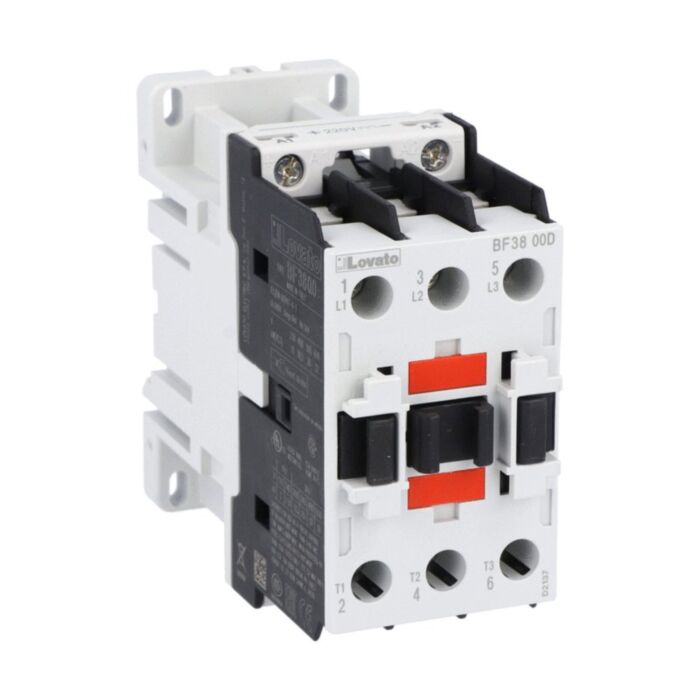

BF3800D060 - 3P CONTACTOR 38A AC3 60VDC
MPN: BF3800D060
Special Price
£180.07
£150.06
Regular Price
£300.11
Why Choose the BF3800D060?
The Lovato BF3800D060 three-pole contactor delivers dependable motor control with a 60 V DC coil and robust AC-3 performance. Rated 38 A at 400 V (18.5 kW) with an Ith of 56 A, this compact unit suits panel builders and OEMs alike. Flexible screw or 35 mm DIN rail mounting speeds installation while maintaining a secure fit. SKU BF3800D060 ensures easy specification and reordering.
Engineered for resilience, the BF38 platform carries Ui 690 V and Uimp 6 kV with Pollution Degree 3, operating from −50 to 70 °C up to 3000 m altitude. A 20,000,000-cycle mechanical life maximises uptime, while terminals tighten to 2.5–3 Nm. At 480 V it carries a 30 HP UL/CSA rating. Conformity spans IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA C22.2 No. 60947-1/-4-1.
Key Benefits
- Three-pole design for reliable three-phase load switching.
- AC-3 38A at 400V, motor rating up to 18.5 kW.
- 60 V DC coil integrates with common DC control circuits.
- Screw or 35 mm DIN rail mounting for quick installation.
- High mechanical endurance with 20,000,000 cycles.
- Wide ambient range −50 to 70 °C for demanding sites.
- Strong dielectric performance, Ui 690 V and Uimp 6 kV.
- UL/CSA 30 HP at 480 V for North American panels.
Technical Specification
- Product type designation: BF38
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 560 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3800D060 three-pole contactor
- Manufacturer datasheet (downloadable)
Applications
- Motor starters for pumps, fans and compressors up to 18.5 kW at 400 V
- Industrial control panels requiring 60 V DC coil contactors
- HVAC and building services equipment with AC-3 duty loads
- Conveyors, machine tools and process automation circuits
Frequently Asked Questions
What is the coil type and voltage?
It has a DC coil rated at 60 V.
Can this contactor be mounted on DIN rail?
Yes, it supports 35 mm DIN rail or screw mounting.
What is the AC-3 rating at 400 V?
It is rated 38 A (18.5 kW) per IEC AC-3.
Which standards does it conform to?
IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA C22.2 No. 60947-1/-4-1.
What temperature range can it operate in?
Operating temperature is −50 to 70 °C; storage is −60 to 80 °C.
Safety note: Install and commission only by qualified personnel. Isolate all power before work, tighten terminals to the specified torque, and operate within the stated ratings and environmental limits.
| Manufacturer Part Number | BF3800D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166703 |
| Coil Voltage | 60VDC |
