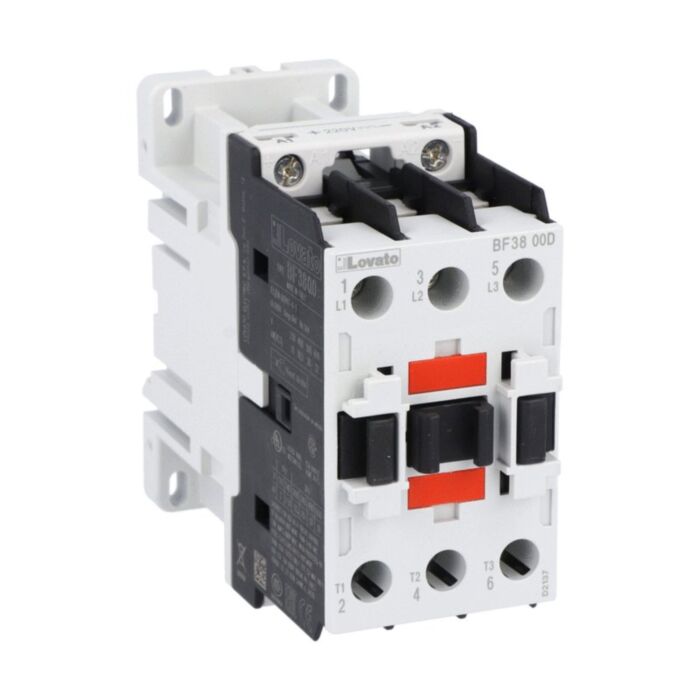

BF3800D048 - 3P CONTACTOR 38A AC3 48VDC

Why Choose the BF3800D048?

Lovato’s BF3800D048 is a robust three-pole contactor designed for reliable AC-3 duty. Handling 38 A (18.5 kW) at 400 V with a 48 V DC coil, it suits control panels needing precise, low-voltage control and dependable power switching. AC-1 current is rated at 56 A, and installation is flexible with screw or 35 mm DIN rail mounting for straightforward integration.

Engineered for endurance, the BF38 platform offers Ui 690 V and Uimp 6 kV, a mechanical life of 20,000,000 cycles, and dependable performance from -50 to 70°C. Rated Pollution Degree 3 and usable up to 3000 m altitude, it supports UL/CSA applications at 480 V (30 HP). Compliance with IEC/EN/BS 60947-1 and 60947-4-1 ensures straightforward integration and documentation.

Key Benefits

• Three-pole switching for AC-3 loads up to 38 A at 400 V.
• 48 V DC coil for precise control from low-voltage supplies.
• Dual mounting options: screw fixings or 35 mm DIN rail.
• Wide operating range from -50 to 70°C for challenging sites.
• Long mechanical life rated to 20,000,000 cycles.
• High dielectric strength with Ui 690 V and Uimp 6 kV.
• UL/CSA 30 HP at 480 V for North American compliance.

Technical Specification

• Product type designation: BF38
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 56 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 560 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• 1 x Lovato BF3800D048 3-pole contactor
• Manufacturer’s installation and safety instructions
• Product documentation

Applications

• AC-3 loads up to 38 A at 400 V
• Control panels using 48 V DC coil control
• Installations requiring screw or 35 mm DIN rail mounting
• Systems conforming to IEC/EN/BS 60947-1 and 60947-4-1
• UL/CSA assemblies at 480 V up to 30 HP

Safety note: Install and service only by qualified personnel. Isolate all power before work, follow IEC/EN/BS 60947 requirements and manufacturer instructions, and tighten terminals to 2.5–3 Nm.
