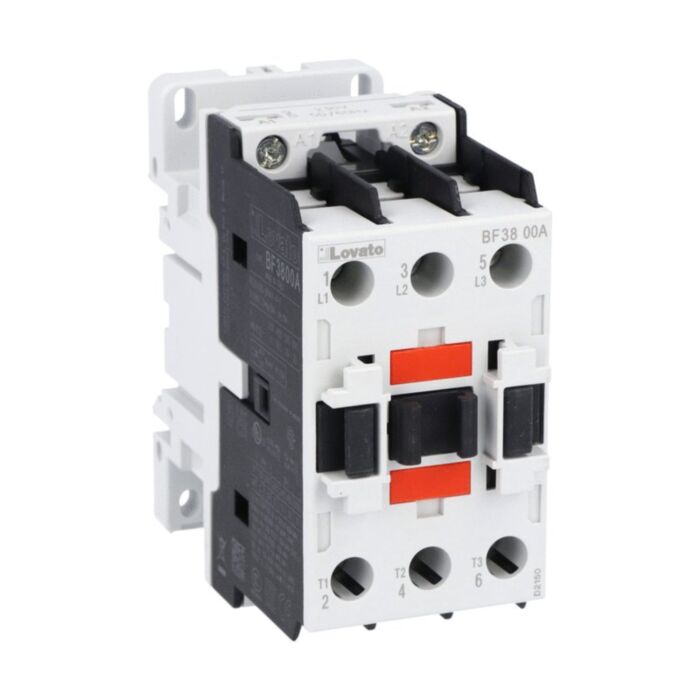

BF3800A46060 - 3P CONTACTOR 38A AC3 460/60

Why Choose the BF3800A46060?

The Lovato BF3800A46060 three-pole contactor delivers dependable motor and power switching for industrial panels. Rated 38A AC-3 at 400V (18.5 kW) with a 460VAC 60Hz coil, it offers robust performance and straightforward integration. With screw or 35mm DIN rail mounting and the compact BF38 designation, this SKU suits new builds and upgrades where reliability, compatibility and clear, standards-based specifications matter.

Built for demanding environments, the BF38 series meets IEC/EN/BS 60947 and UL/CSA standards, with 690 V Ui and 6 kV Uimp. It endures -50 to 70 °C operation and up to 3000 m altitude, Pollution Degree 3. A 20,000,000-cycle mechanical life, 2.5 to 3 Nm terminal torque and 30 HP at 480 V ensure long service in OEM machinery and panel assemblies.

Key Benefits

• 38A AC-3 at 400V supports motors up to 18.5 kW.
• 460VAC 60Hz coil for straightforward control circuit interfacing.
• Screw or 35mm DIN rail mounting for flexible panel layout.
• Wide operating temperature -50 to 70 °C for harsh environments.
• 690 V insulation and 6 kV impulse withstand for safety margin.
• 20,000,000 mechanical cycles for long service life.
• Certified to IEC/EN/BS, UL and CSA standards for compliance.

Technical Specification

• Product type designation: BF38
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 56 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 422 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF38 three-pole contactor (SKU BF3800A46060)
• Integrated 460VAC 60Hz AC coil
• Quick-start installation and safety leaflet
• Compliance and certification information

Applications

• Three-phase motor starters up to 18.5 kW at 400 V AC-3
• Resistive load switching up to 56 A AC-1
• Industrial control panels and MCCs with 35mm DIN rail
• OEM machinery, conveyors, pumps, fans and compressors
• Upgrades requiring a 460 VAC 60 Hz coil contactor

Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate power before work, observe specified torque, and follow applicable standards and environmental limits.
