BF3800A22060 - 3P CONTACTOR 38A AC3 220/60
MPN: BF3800A22060
Special Price
£100.82
£84.02
Regular Price
£168.05
Why Choose the BF3800A22060?

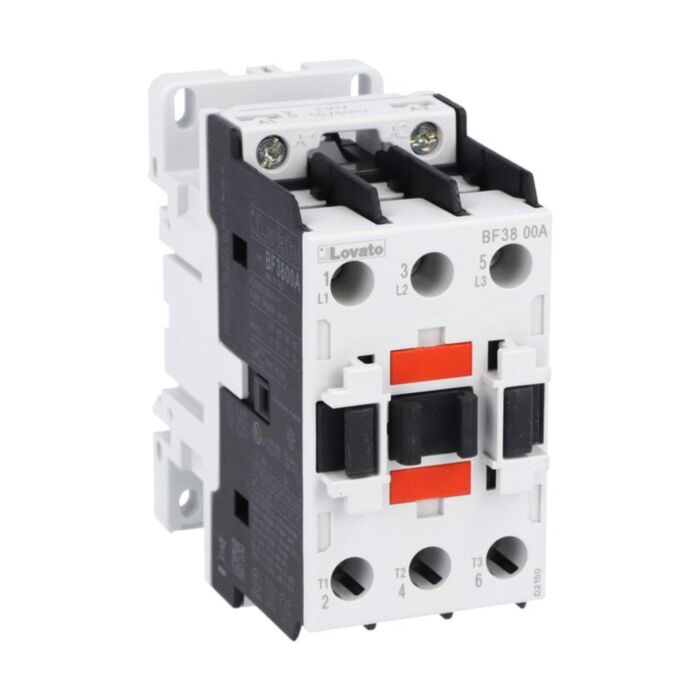

Lovato BF3800A22060 is a robust three-pole contactor for reliable motor control in demanding industrial panels. Rated AC3 38A at 400V (18.5 kW), it uses a 220VAC 60Hz coil for dependable operation. Compact and easy to install with screw fixings or 35mm DIN rail mounting, this BF38 series device streamlines build time while maintaining performance. Ideal for UK OEMs and MRO teams seeking consistent switching and strong standards compliance.
Designed for resilience, it carries Ui 690 V and Uimp 6 kV, with mechanical life of 20,000,000 cycles. The operating temperature range is -50 to 70 °C, storage -60 to 80 °C, with operation up to 3000 m altitude and pollution degree 3. Terminal tightening torque is 2.5–3 Nm. Conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents, supporting global panel compliance.
Key Benefits
- Robust AC3 38 A performance for three-phase motor loads at 400 V.
- 220 VAC 60 Hz coil ensures reliable control in AC systems.
- Versatile screw or 35 mm DIN rail mounting saves panel space.
- High insulation ratings Ui 690 V and Uimp 6 kV.
- Long mechanical life of 20,000,000 cycles reduces maintenance.
- Wide operating temperature range from -50 to 70 °C.
- Meets IEC/EN/BS, UL and CSA standards for assured compliance.
- Compact 415 g build supports efficient control panel layouts.
Technical Specification
- Product type designation: BF38
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 415 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3800A22060 contactor unit
- Manufacturer documentation (where provided)
- Packaging suitable for transit
Applications
- Three-phase motor control up to 18.5 kW at 400 V (AC3)
- Pumps, fans and compressors requiring AC3-rated switching
- Conveyor systems and material handling equipment
- HVAC and building services control panels
- General industrial machinery contactor duty
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
It has an AC coil rated 220 VAC at 60 Hz, according to the specifications.
What motor rating can it handle at 400 V in AC3?
In AC3 duty at 400 V it is rated 38 A, equivalent to 18.5 kW.
How can the BF3800A22060 be mounted?
It supports screw mounting or installation on a 35 mm DIN rail.
What environmental limits should I observe?
Operating temperature is -50 to 70 °C, storage -60 to 80 °C, up to 3000 m altitude.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Installation and servicing should be performed by qualified personnel. Isolate power before work, follow manufacturer documentation, and tighten terminals to 2.5–3 Nm.
| Manufacturer Part Number | BF3800A22060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975161296 |
| Coil Voltage | 220V |
