BF3200L048 - 3P CONTACTOR 32A AC3 48VDC LOW C.
MPN: BF3200L048
Special Price
£136.38
£113.65
Regular Price
£227.30
Why Choose the BF3200L048?

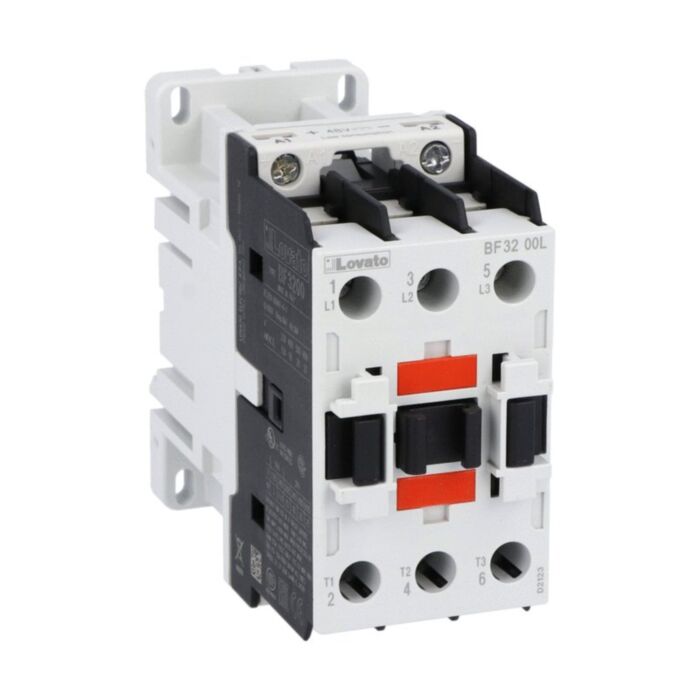

Built for demanding motor and load control, the Lovato BF3200L048 three-pole contactor (SKU: BF3200L048) delivers 32 A AC-3 at 400 V (16 kW) with a 48 V DC low-consumption coil. Rated Ui 690 V and Uimp 6 kV, it mounts by screw or 35 mm DIN rail and conforms to IEC/EN/BS, UL and CSA standards for dependable integration in UK industrial panels.
Engineered for longevity and harsh environments, this BF32 series device offers a mechanical life of 20,000,000 cycles and operates from -50 to 70 °C, with storage to -60 to 80 °C and use up to 3000 m, Pollution degree 3. It supports 56 A AC1 loads and 20 HP at 480 V (UL/CSA), making it ideal for control panels and general industrial automation.
Key Benefits
- 32 A AC-3 at 400 V handles motors up to 16 kW.
- Low-consumption 48 VDC coil reduces control power requirements.
- Screw or 35 mm DIN rail mounting speeds panel installation.
- Ui 690 V and 6 kV impulse withstand enhance electrical robustness.
- Operates from -50 to 70 °C for harsh environmental conditions.
- Long mechanical life of 20,000,000 cycles minimises maintenance.
- Certified to IEC/EN/BS, UL and CSA for assured compliance.
- Rated for 3000 m altitude, Pollution degree 3 durability.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 558 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200L048 three-pole contactor
- Basic installation and safety information
- Manufacturer datasheet (downloadable)
Applications
- Motor control up to 16 kW at 400 V AC-3
- General AC loads up to 56 A AC-1
- Control panels using 48 VDC low-consumption coils
- UL/CSA applications up to 20 HP at 480 V
- Industrial automation at altitudes up to 3000 m
Frequently Asked Questions
What coil voltage and type does the BF3200L048 use?
It has a 48 V DC low-consumption coil for efficient control circuits.
How can this contactor be mounted?
It supports screw fixing or mounting on a 35 mm DIN rail.
What are the key current ratings?
It is rated 32 A AC-3 at 400 V (16 kW) and 56 A Ith (AC1).
What environmental limits does it support?
Operating temperature is -50 to 70 °C, with altitude capability up to 3000 m.
Which standards and approvals does it meet?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA 60947-1/-4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate power, verify the 48 VDC coil supply, and tighten terminals to 2.5–3 Nm in accordance with the stated standards.
| Manufacturer Part Number | BF3200L048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168745 |
| Coil Voltage | 48VDC |
