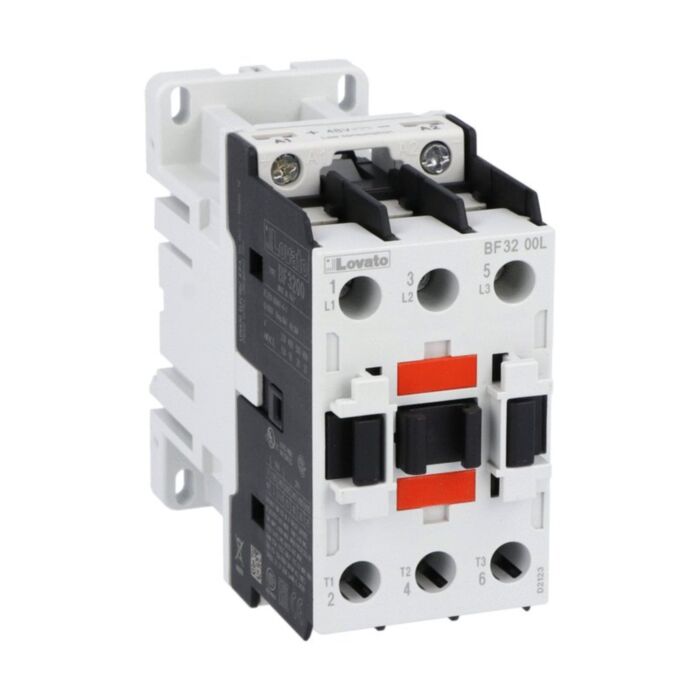

BF3200L024 - 3P CONTACTOR 32A AC3 24VDC LOW C.
MPN: BF3200L024
Special Price
£136.38
£113.65
Regular Price
£227.30
Why Choose the BF3200L024?
Lovato BF3200L024 is a robust three-pole contactor engineered for reliable motor control. With AC3 performance of 32A (16 kW) at 400 V and a low-consumption 24 V DC coil, the BF3200L024 delivers efficient operation and reduced control power. It mounts via screws or 35 mm DIN rail, integrates seamlessly in panels, and meets IEC/EN/BS, UL and CSA standards for broad compliance.
Built for demanding environments, it offers 690 V rated insulation and 6 kV impulse withstand, operates from -50 to 70 °C, and achieves a mechanical life of 20,000,000 cycles. Rated 56 A AC1 and 20 HP at 480 V (UL/CSA), it suits global projects. Secure terminals tighten to 2.5 to 3 Nm, while pollution degree 3 and use up to 3000 m altitude enhance application flexibility.
Key Benefits
- 32A AC3 at 400 V for motors up to 16 kW
- Low-consumption 24 V DC coil reduces control power demand
- Dual screw or 35 mm DIN rail mounting for easy installation
- High mechanical life of 20,000,000 cycles for long service
- Wide operating range from -50 to 70 °C for harsh environments
- High insulation 690 V and 6 kV impulse withstand
- Complies with IEC/EN/BS, UL and CSA standards
- UL/CSA 20 HP at 480 V supports North American applications
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 568 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200L024 three-pole contactor
- Installation instructions leaflet
- Protective packaging for transit
- Product datasheet (available online)
Applications
- Motor control up to 16 kW at 400 V (AC3)
- HVAC fans, blowers and compressors
- Pumps, conveyors and material handling equipment
- Control panels and OEM machinery builds
- General-purpose switching up to 56 A (AC1)
Frequently Asked Questions
What coil voltage and type does the BF3200L024 use?
It uses a low-consumption 24 V DC coil.
What is the AC3 rating at 400 V?
It is rated 32A (16 kW) at 400 V in AC3 duty.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
What is the operating temperature range?
The operating range is -50 to 70 °C.
Which standards does it conform to?
IEC/EN/BS 60947-1 and -4-1, UL 60947-1 and -4-1, and CSA C22.2 No. 60947-1 and -4-1.
Safety note: Install and commission only by qualified personnel. Isolate power before wiring or maintenance, and observe the specified ratings, torque values, pollution degree and altitude limits for safe operation.
| Manufacturer Part Number | BF3200L024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168738 |
| Coil Voltage | 24VDC |
