BF3200D125 - 3P CONTACTOR 32A AC3 125VDC
MPN: BF3200D125
Special Price
£158.89
£132.41
Regular Price
£264.82
Why Choose the BF3200D125?

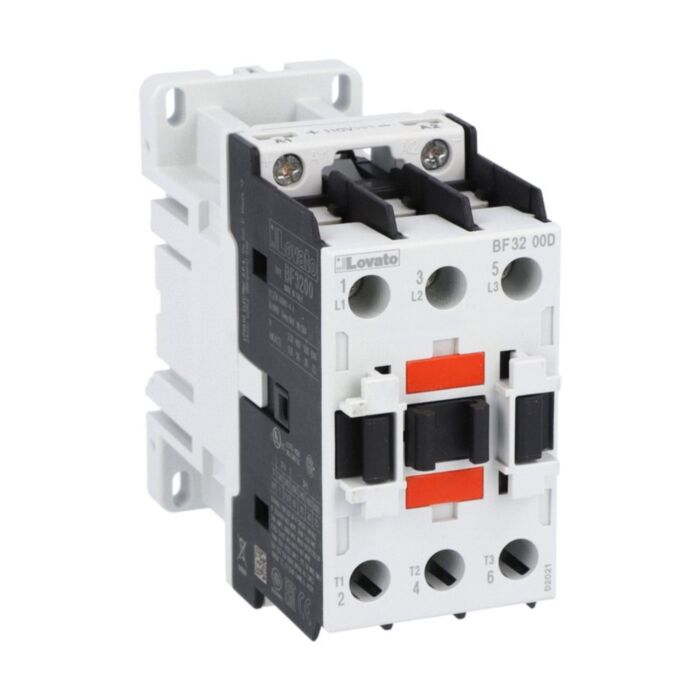

Designed for dependable motor and power switching, the Lovato BF3200D125 three‑pole contactor (SKU: BF3200D125) features a 125V DC coil for stable control. It delivers AC3 32A/16 kW performance at 400 V and an AC1 Ith of 56 A, with Ui 690 V and Uimp 6 kV insulation levels. Compact and robust, it mounts via screws or on 35 mm DIN rail for fast panel integration.
Built on the BF32 platform, this contactor is engineered for longevity with a mechanical life of 20,000,000 cycles and operation from −50 to 70 °C up to 3000 m altitude. It carries UL/CSA 20 HP at 480 V ratings and conforms to IEC/EN/BS 60947 standards. Pollution degree 3 and 2.5–3 Nm terminal torque support reliable connections in demanding industrial environments.
Key Benefits
- AC3 32A/16 kW at 400 V for robust motor duty switching.
- 125 V DC coil provides stable, reliable control signal performance.
- Wide −50 to 70 °C operating range suits harsh environments.
- High mechanical life rated at 20,000,000 cycles reduces downtime.
- Screw or 35 mm DIN rail mounting simplifies panel installation.
- High insulation ratings Ui 690 V and Uimp 6 kV enhance safety.
- UL/CSA 20 HP at 480 V broadens global panel compatibility.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 840 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200D125 three-pole contactor
- Manufacturer product documentation
- Secure packaging for transit
Applications
- Motor control up to AC3 32A/16 kW at 400 V
- Pump, fan and compressor starters
- Conveyors and material handling systems
- General power switching in industrial panels
- HVAC and building services control
Frequently Asked Questions
What is the coil voltage and type?
It uses a 125 V DC coil (DC coil) for control.
Can this contactor be mounted on DIN rail?
Yes. It supports screw mounting or 35 mm DIN rail mounting.
What is its AC3 switching capacity?
It is rated AC3 32A/16 kW at 400 V.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
What is the operating temperature range?
−50 to 70 °C, with storage from −60 to 80 °C.
Safety note: Installation must be performed by qualified personnel. Isolate all power before work and tighten terminals to 2.5–3 Nm. Use only within the specified ratings and standards.
| Manufacturer Part Number | BF3200D125 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166659 |
| Coil Voltage | 125VDC |
