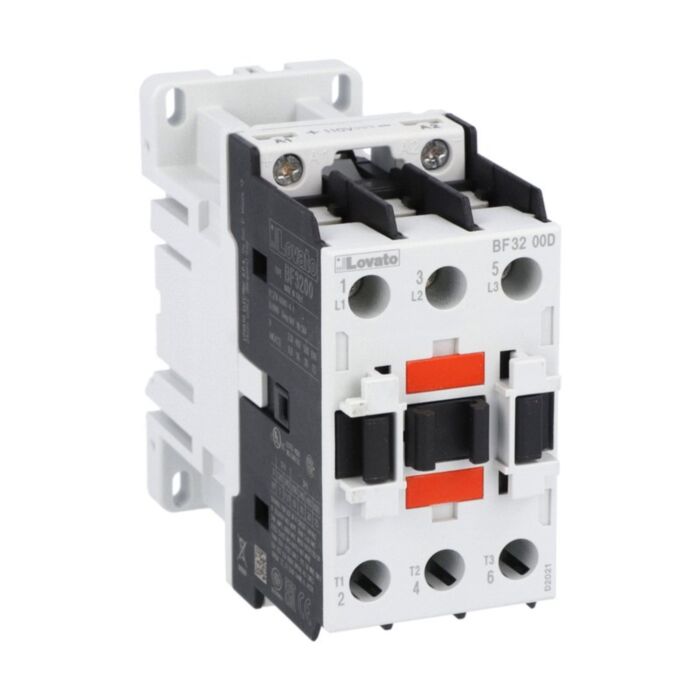

BF3200D012 - 3P CONTACTOR 32A AC3 12VDC
MPN: BF3200D012
Special Price
£158.89
£132.41
Regular Price
£264.82
Why Choose the BF3200D012?
Lovato’s BF3200D012 three-pole contactor delivers dependable motor switching with 32A AC-3 performance at 400V. A 12V DC coil supports straightforward integration with low-voltage control circuits. Rated AC-1 to 56A with Ui 690V and Uimp 6 kV, this BF32-series device fits robust industrial panels with screw fixing or 35mm DIN rail mounting for fast, tidy installation.
Engineered for durability, the contactor offers 20,000,000 mechanical cycles and operates from -50 to 70 °C (storage -60 to 80 °C). Terminal torque is 2.5 to 3 Nm, with pollution degree 3 and use up to 3000 m altitude. Conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents, for assured compliance.
Key Benefits
- 32A AC-3 at 400V for reliable three-phase motor control duty.
- 12V DC coil simplifies interfacing with low-voltage control circuits.
- AC-1 56A rating offers capacity for resistive and lightly inductive loads.
- Screw or 35mm DIN rail mounting enables fast, flexible installation.
- High insulation: Ui 690V with 6 kV impulse withstand rating.
- Long mechanical life rated to 20,000,000 switching cycles.
- Wide operating temperature range from -50 to 70 °C.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 562 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200D012 three-pole contactor
- Installation and safety information
- Protective packaging for transit
Applications
- Three-phase motor control and switching up to 32A AC-3 at 400V
- Resistive and lightly inductive loads up to 56A AC-1
- Industrial control panels using screw or 35mm DIN rail mounting
- General automation, machinery and process equipment requiring reliable contactors
Frequently Asked Questions
What coil voltage does the BF3200D012 use?
It has a DC coil rated at 12 V for control circuits.
What are the AC-3 and AC-1 ratings?
It is rated 32A AC-3 at 400V (16Kw) and 56A AC-1.
How can this contactor be mounted?
It supports screw fixing or 35mm DIN rail mounting.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
What environmental limits should I consider?
Operating range is -50 to 70 °C, storage -60 to 80 °C, up to 3000 m altitude with pollution degree 3.
Safety note: Installation must be performed by qualified personnel. Isolate power before work, observe the specified terminal tightening torque, and follow applicable IEC/EN/BS, UL and CSA standards and local regulations.
| Manufacturer Part Number | BF3200D012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166604 |
| Coil Voltage | 12VDC |
