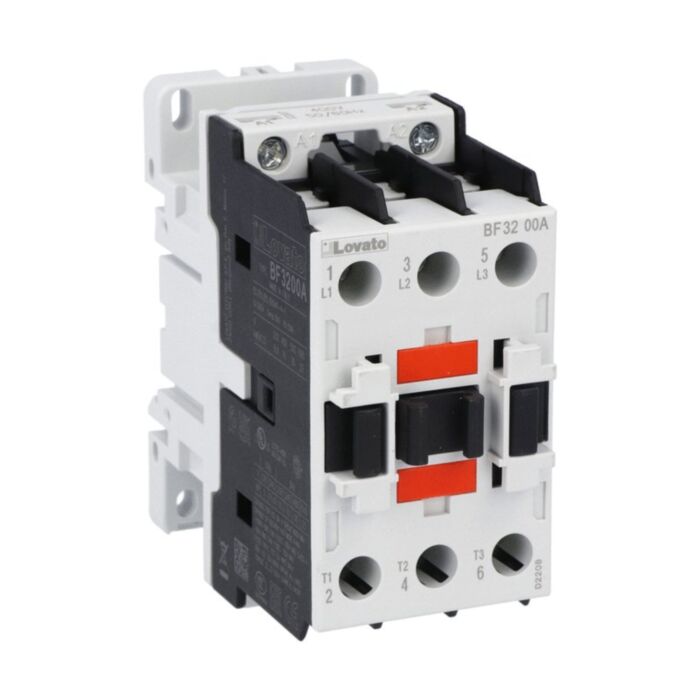

BF3200A23060 - 3P CONTACTOR 32A AC3 230/60
MPN: BF3200A23060
Special Price
£90.49
£75.41
Regular Price
£150.83
Why Choose the BF3200A23060?
Lovato’s BF3200A23060 three-pole contactor delivers dependable switching for motors and loads. With AC-3 performance of 32A at 400V (16 kW) and an IEC AC-1 Ith of 56A, the BF3200A23060 suits demanding control panels. A 230VAC 60Hz coil and flexible screw or 35 mm DIN rail mounting simplify integration, while Ui 690 V and Uimp 6 kV ratings support robust insulation and impulse withstand.
Built for longevity, this BF32 designation contactor offers 20,000,000 mechanical cycles and operates from -50 to 70 °C, with storage to -60 to 80 °C and use up to 3000 m altitude. It meets IEC/EN/BS 60947 and UL/CSA standards, with 20 HP at 480V. Practical touches include 2.5–3 Nm terminal torque, 422 g weight, and Pollution Degree 3 construction.
Key Benefits
- High AC-3 capacity: 32A at 400V, 16 kW motor loads.
- Strong AC-1 rating of 56A for resistive circuits.
- 230VAC 60Hz coil for straightforward control integration.
- Flexible screw or 35 mm DIN rail mounting options.
- Robust insulation: Ui 690 V and Uimp 6 kV ratings.
- Wide operating range from -50 to 70 °C.
- Long mechanical life of 20,000,000 cycles for reliability.
- Certified to IEC/EN/BS, UL and CSA standards.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 422 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200A23060 three-pole contactor
- Mounting-ready housing for screw or 35 mm DIN rail
- Manufacturer datasheet (available online)
- Protective packaging
Applications
- AC-3 motor control up to 32A at 400V (16 kW)
- Resistive load switching within 56A AC-1 rating
- Industrial control panels using 35 mm DIN rail mounting
- Systems requiring a 230VAC 60Hz control coil
Frequently Asked Questions
Does this model have a 230VAC 60Hz coil?
Yes, it uses an AC coil rated 230 V at 60 Hz.
What is its AC-3 rating at 400V?
It is rated 32A AC-3 at 400V, equivalent to 16 kW.
How can it be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and -4-1, UL 60947-1 and -4-1, and CSA C22.2 n° 60947-1 and -4-1.
What is the operating temperature range?
It operates from -50 to 70 °C, with storage from -60 to 80 °C.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before wiring, observe the specified terminal torque, and operate only within the stated ratings, temperatures and altitudes.
| Manufacturer Part Number | BF3200A23060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975161180 |
| Coil Voltage | 230V |
