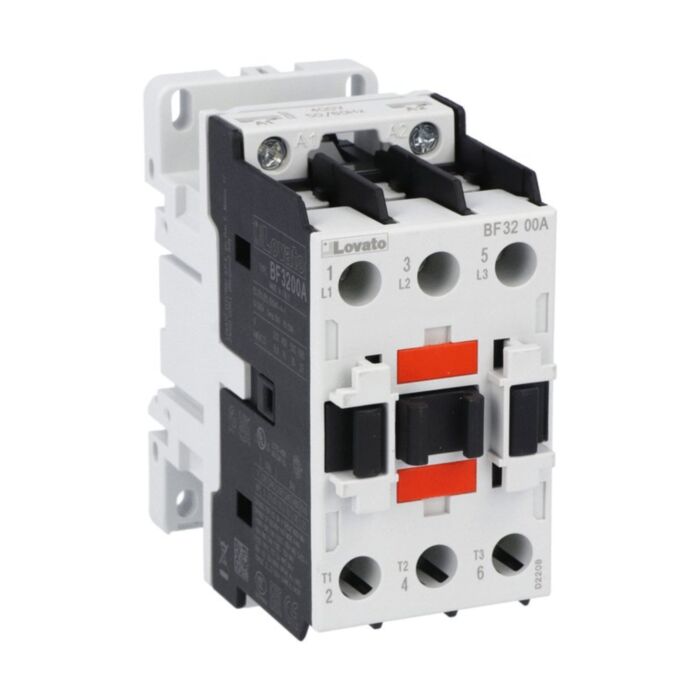

BF3200A22060 - 3P CONTACTOR 32A AC3 220/60
MPN: BF3200A22060
Special Price
£90.49
£75.41
Regular Price
£150.83
Why Choose the BF3200A22060?
The Lovato BF3200A22060 is a three‑pole contactor designed for dependable motor control. Rated 32 A AC‑3 (16 kW) at 400 V with an AC coil for 60 Hz at 220 VAC, it integrates easily using screw fixings or 35 mm DIN rail. With Ui 690 V and 6 kV impulse withstand, it suits robust control circuits and complies with IEC/EN/BS 60947 standards.
Built on the BF32 platform, it delivers 20,000,000 mechanical operations and dependable performance from -50 to 70 °C, up to 3000 m altitude (pollution degree 3). Terminals tighten to 2.5–3 Nm for secure connections, and weight is 422 g. UL/CSA 20 HP at 480 V extends applicability, while Sustainability certification supports responsible specification.
Key Benefits
- 32 A AC‑3 at 400 V for motors up to 16 kW.
- 220 VAC 60 Hz coil suits common control supplies.
- Screw or 35 mm DIN rail mounting simplifies installation.
- Ui 690 V and 6 kV impulse withstand enhance insulation.
- Operates reliably from -50 to 70 °C environments.
- 20,000,000 mechanical cycles deliver extended service life.
- UL/CSA 20 HP at 480 V broadens panel compatibility.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 422 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200A22060 3‑pole contactor
- Manufacturer documentation (as supplied)
Applications
- AC motor starters up to 32A AC3 at 400V
- Pumps, fans and compressors in HVAC and process systems
- Machine control panels and OEM equipment
- General-purpose switching of resistive loads within AC1 ratings
- Panel upgrades requiring 220VAC 60Hz control coils
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
The coil is rated 220 VAC at 60 Hz.
How many poles and what mounting options are available?
It is a three‑pole device and mounts by screws or on a 35 mm DIN rail.
What is the AC‑3 rating at 400 V?
32 A (16 kW) at 400 V under IEC AC‑3 duty.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA equivalents.
What environmental ratings should I note?
Operating range is -50 to 70 °C, up to 3000 m, pollution degree 3.
Safety note: Installation must be performed by qualified personnel. Isolate power before work, tighten terminals to 2.5–3 Nm, and observe the stated temperature, altitude and pollution degree limits per manufacturer guidance.
| Manufacturer Part Number | BF3200A22060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975161173 |
| Coil Voltage | 220V |
