BF3200A04860 - 3P CONTACTOR 32A AC3 48/60
MPN: BF3200A04860
Special Price
£90.49
£75.41
Regular Price
£150.83
Why Choose the BF3200A04860?

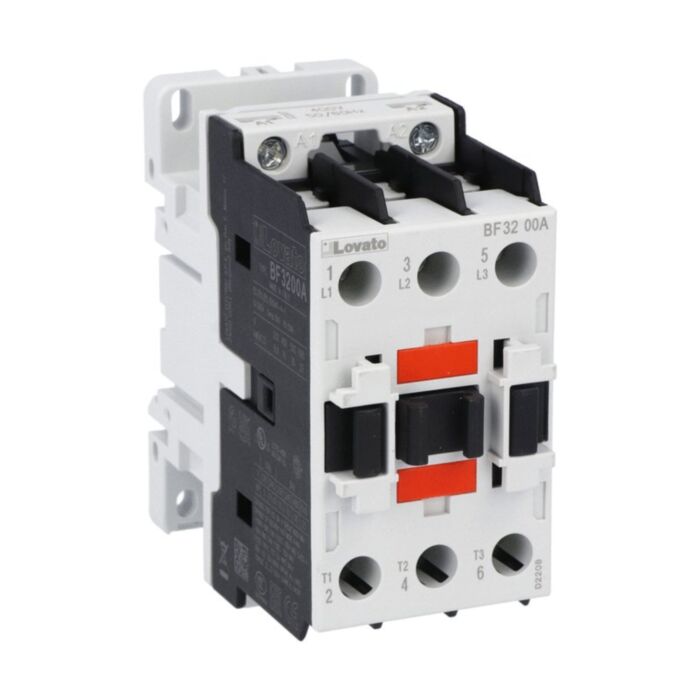

Engineered by Lovato, the BF3200A04860 three‑pole contactor delivers dependable motor and load control. With an AC coil rated 48VAC at 60Hz, it provides 32A AC3 (16kW) performance at 400V alongside 56A AC1 capability. The SKU BF3200A04860 mounts via 35mm DIN rail or screw fixings, and carries a 20 HP UL/CSA rating at 480V, making it a robust choice for panels and machinery.
Built on the BF32 platform, this contactor combines a 690 V rated insulation voltage with 6 kV impulse withstand for enhanced safety. It offers 20,000,000 mechanical operations, terminal tightening torque of 2.5–3 Nm, and reliable service from −50 to 70 °C up to 3000 m altitude (pollution degree 3). Conformity to IEC/EN/BS 60947 and UL/CSA standards supports global panel compliance.
Key Benefits
- Three-pole switching with 32A AC3 (16kW) at 400V for motors.
- 48VAC 60Hz coil matches common control transformer outputs.
- 56A AC1 rating handles higher resistive loads reliably.
- 690V Ui and 6kV Uimp for strong electrical insulation margins.
- 35mm DIN rail or screw mounting simplifies panel integration.
- 20,000,000 mechanical operations for long, low-maintenance service life.
- Operates from −50 to 70 °C; suitable for demanding environments.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 420 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200A04860 three-pole contactor
- Product datasheet (PDF via manufacturer)
Applications
- Across-the-line motor starting up to 32A AC3 at 400V
- Control of pumps, fans, and conveyors
- Switching of resistive loads within AC1 limits
- OEM machinery and industrial control panels
- Building services and HVAC control circuits
Frequently Asked Questions
What coil voltage does the BF3200A04860 use?
It has an AC coil rated 48 VAC at 60 Hz.
What are its main current ratings?
It is rated 32 A AC3 (16 kW) at 400 V and 56 A AC1.
How can it be mounted in a panel?
It supports screw mounting or 35 mm DIN rail installation.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
What environmental limits should I consider?
Operating temperature is −50 to 70 °C with a maximum altitude of 3000 m.
Safety note: Installation must be carried out by qualified personnel. Isolate power before work, follow the manufacturer’s instructions and applicable IEC/EN/BS 60947 requirements, and tighten terminals to 2.5–3 Nm.
| Manufacturer Part Number | BF3200A04860 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975161159 |
| Coil Voltage | 48V |
