BF3200A02460 - 3P CONTACTOR 32A AC3 24/60
MPN: BF3200A02460
Special Price
£90.49
£75.41
Regular Price
£150.83
Why Choose the BF3200A02460?

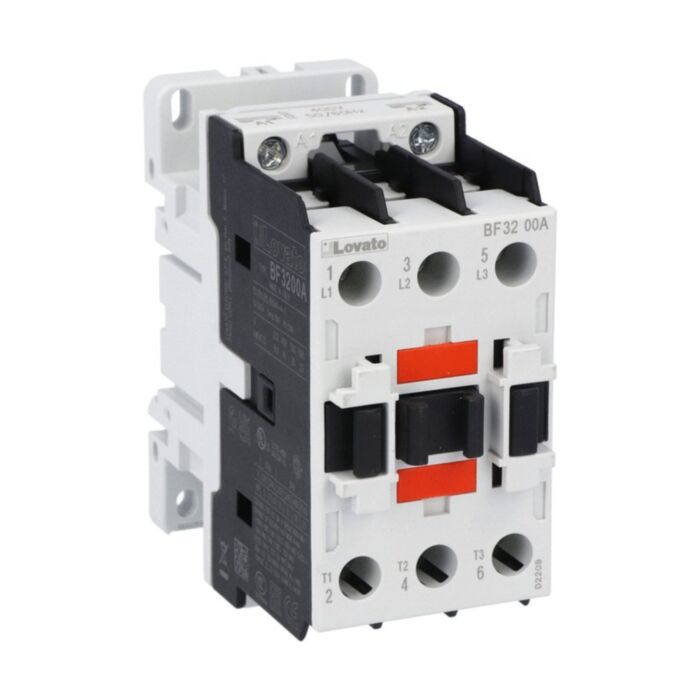

The Lovato BF3200A02460 is a robust three-pole contactor engineered for dependable motor and load switching. Rated AC3 32A at 400V (16kW), it uses a 24VAC 60Hz coil for straightforward control integration. With versatile screw or 35mm DIN rail mounting, this BF32-series unit streamlines panel assembly while maintaining a compact footprint. Ideal for OEMs and maintenance teams seeking reliable, standards-compliant contact control.
Designed for longevity and resilience, the contactor offers a mechanical life of 20,000,000 cycles and operates from -50 to 70 °C, up to 3000 m altitude. Electrical robustness includes Ui 690 V and Uimp 6 kV, with Pollution Degree 3 endurance. It meets IEC/EN/BS 60947-1 and 60947-4-1, plus UL/CSA equivalents, and specifies 2.5–3 Nm terminal torque for secure connections.
Key Benefits
- AC3 performance: 32A at 400V, 16 kW motor switching capability.
- 24VAC 60Hz coil suits common control transformer outputs.
- Dual mounting options: screw fixing or 35 mm DIN rail.
- Wide operating range from -50 to 70 °C for reliability.
- Mechanical life of 20,000,000 cycles reduces maintenance downtime.
- Rated Ui 690 V and Uimp 6 kV for insulation strength.
- Complies with IEC/EN/BS and UL/CSA standards for assurance.
- Specified 2.5 to 3 Nm terminal torque aids secure wiring.
Technical Specification
- Product type designation: BF32
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 56 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 422 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF3200A02460 three-pole contactor
- 24VAC 60Hz coil pre-fitted
- Installation and safety instructions
Applications
- AC-3 motor starters up to 16 kW at 400 V.
- Pumps, fans, compressors and conveyor drives.
- HVAC air handling units, chillers and circulation pumps.
- General-purpose switching of resistive loads (AC1) up to 56 A.
- OEM machinery and control panels requiring IEC/UL compliance.
Frequently Asked Questions
What is the coil voltage and frequency?
The coil is 24 VAC, 60 Hz as standard.
What is its AC-3 rating at 400 V?
It is rated 32A, equivalent to 16 kW motor duty at 400 V.
How can the BF3200A02460 be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What operating temperature range does it support?
It operates from -50 to 70 °C; storage is -60 to 80 °C.
What is the UL/CSA horsepower rating at 480 V?
The UL/CSA rating is 20 HP at 480 V.
Safety note: Installation must be performed by qualified personnel. Isolate power before wiring, observe the specified 2.5–3 Nm terminal torque, and ensure operation within the stated voltage, current and temperature limits.
| Manufacturer Part Number | BF3200A02460 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975161142 |
| Coil Voltage | 24V |
