BF26T4L048 - 4P CONTACTOR NO 45A AC1 48VDC LOW C.
MPN: BF26T4L048
Special Price
£133.21
£111.01
Regular Price
£222.02
Why Choose the BF26T4L048?

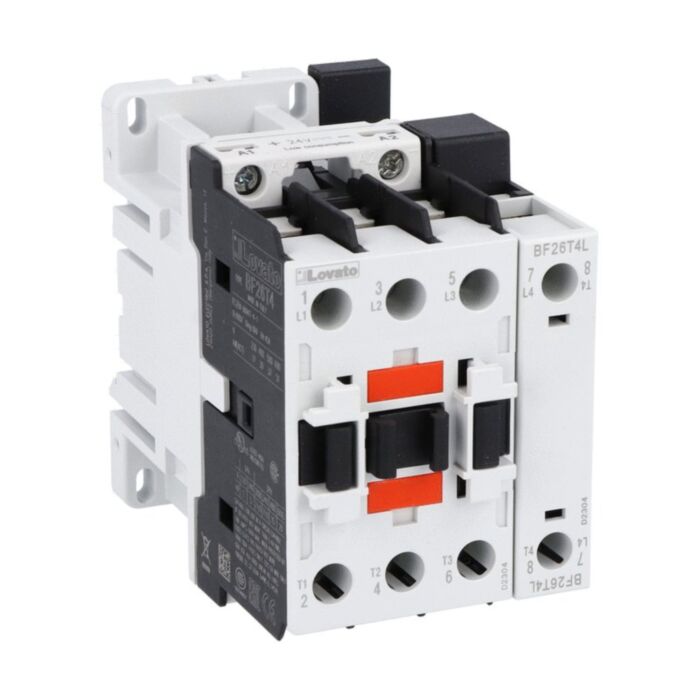

Lovato BF26T4L048 is a four-pole contactor designed for reliable switching in industrial control panels. It features a 48V DC low-consumption coil and delivers 45A Ith (AC1) performance, with 26A/13kW AC3 at 400V. Mounting is flexible via screws or 35mm DIN rail, and the BF26 designation ensures compatibility across applications requiring robust control hardware.
Built for demanding environments, this contactor offers 690V rated insulation (Ui) and 6kV impulse withstand (Uimp), with a mechanical life of 20,000,000 cycles. Operating temperatures range from -50 to 70°C and installation is aided by 2.5 to 3 Nm terminal tightening torque. Suitable up to 3000 m altitude, pollution degree 3, and compliant with IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA standards.
Key Benefits
- 48V DC low-consumption coil reduces control power demand.
- 45A Ith (AC1) rating for robust general-purpose switching.
- 26A/13kW AC3 at 400V supports motor load control.
- Four-pole configuration provides flexibility in multi-circuit applications.
- Screw or 35mm DIN rail mounting speeds panel installation.
- Mechanical life of 20,000,000 cycles enhances reliability.
- Ui 690V and Uimp 6kV deliver strong insulation performance.
- Operates from -50 to 70°C to suit harsh environments.
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 665 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T4L048 four-pole contactor unit
- Integrated 48V DC low-consumption coil
- Downloadable manufacturer datasheet
Applications
- Motor control circuits at 400V AC3 duty
- Industrial automation and machinery control panels
- HVAC, pumping and conveyor starters
- General AC1 load switching and power distribution
Frequently Asked Questions
What is the coil voltage and type?
It has a 48V DC low-consumption coil for efficient control power use.
What are the main current and power ratings?
Ith (AC1) is 45A, and at 400V AC3 it is 26A/13kW. UL/CSA rating at 480V is 15 HP.
How can this contactor be mounted?
It can be mounted with screws or on a 35mm DIN rail.
What environmental limits does it support?
Operating temperature is -50 to 70°C, storage -60 to 80°C, altitude up to 3000 m, pollution degree 3.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
Safety note: Installation and commissioning should be performed by qualified personnel. Verify the 48V DC coil supply, observe the stated environmental limits, and tighten terminals to 2.5 to 3 Nm in accordance with applicable standards.
| Manufacturer Part Number | BF26T4L048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975171844 |
| Coil Voltage | 48VDC |
