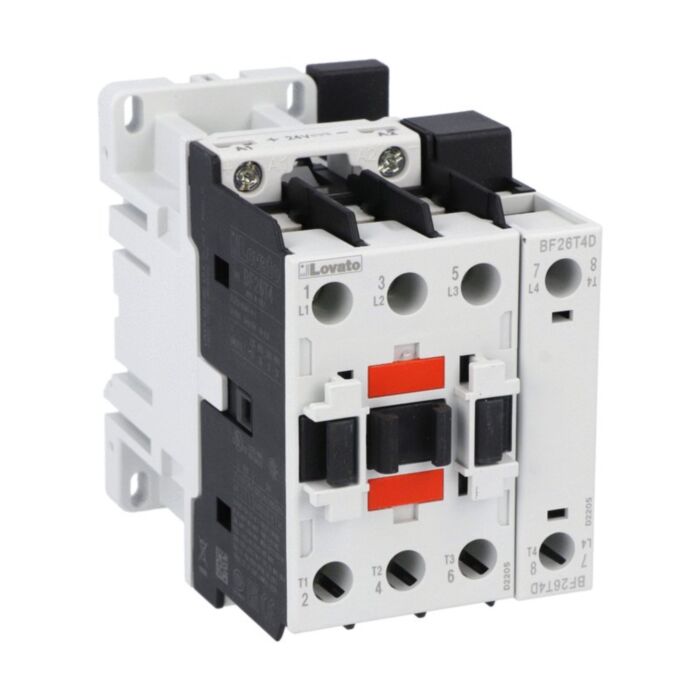

BF26T4D220 - 4P CONTACTOR NO 45A AC1 220VDC

Why Choose the BF26T4D220?

Designed for reliable power switching, the Lovato BF26T4D220 is a four‑pole contactor with a 220VDC coil for DC control circuits. Delivering 45A AC‑1 and 26A/13kW AC‑3 at 400V, this compact unit suits demanding industrial loads. The BF26T4D220 offers screw or 35mm DIN rail mounting and conforms to IEC/EN/BS and UL/CSA standards for assured performance.

Built on the BF26 platform, this contactor provides Ui 690V insulation and 6kV impulse withstand for robust isolation. A 20,000,000-cycle mechanical life supports long service, while terminals tighten to 2.5–3 Nm. Rated for -50 to 70°C operation and installation up to 3000 m, it suits harsh environments under pollution degree 3.

Key Benefits

• High AC-1 capacity: 45A for reliable resistive load switching.
• AC-3 performance at 400V: 26A / 13kW for motor applications.
• 220VDC coil simplifies integration with DC control circuits.
• Flexible installation via screw fixings or 35mm DIN rail.
• Robust insulation: Ui 690V and 6kV impulse withstand.
• Long mechanical life rated at 20,000,000 cycles.
• Wide operating temperature range from -50 to 70°C.

Technical Specification

• Product type designation: BF26
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 670 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• 1 x Lovato BF26T4D220 four-pole contactor
• Manufacturer packaging for transit protection

Applications

• Motor control up to 26A/13kW AC-3 at 400V
• Resistive load switching up to 45A AC-1
• Industrial control panels and motor control centres
• HVAC fans, pumps and compressors
• Distribution boards and automation systems

Safety note: Install and service only by qualified personnel. Isolate power before work, tighten terminals to 2.5–3 Nm, and adhere to applicable IEC/EN/BS 60947 and local regulations.
