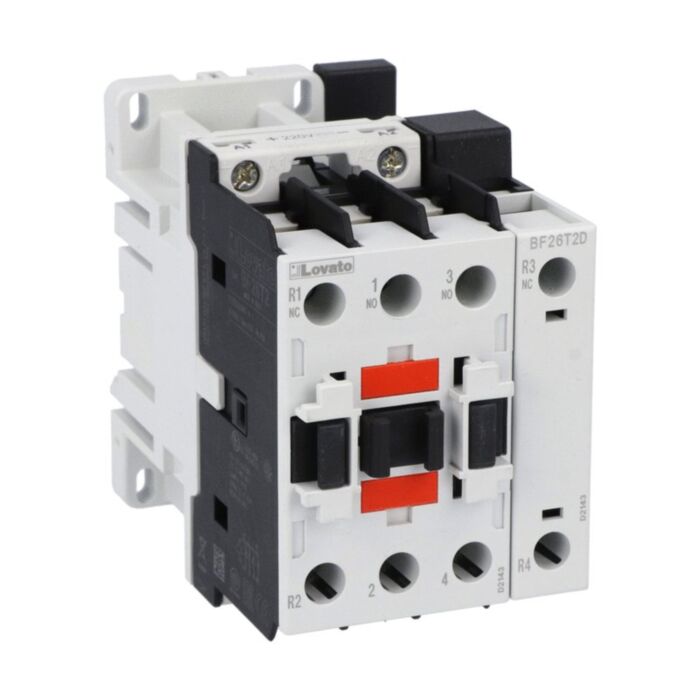

BF26T2D220 - 4P CONTACTOR 2NO+2NC 45A AC1 220VDC
MPN: BF26T2D220
Special Price
£162.66
£135.55
Regular Price
£271.09
Why Choose the BF26T2D220?
Engineered for reliable switching, the Lovato BF26T2D220 four-pole contactor brings a 45 A AC-1 rating together with a 220 V DC coil and 2NO and 2NC contacts. Built on the proven BF26 platform, it suits control and power circuits and installs quickly using screw fixings or a 35 mm DIN rail. This BF26T2D220 is a dependable choice for busy industrial panels and OEM builds.
With a rated insulation voltage of 690 V and 6 kV impulse withstand, the BF26 delivers robust electrical performance and longevity, with mechanical life rated to 20,000,000 cycles. Operating from -50 to 70 °C and up to 3000 m altitude, it meets IEC/EN/BS, UL and CSA standards. Terminal tightening torque of 2.5–3 Nm ensures secure connections and consistent operation.
Key Benefits
- 45 A AC-1 rating for robust general-purpose switching
- 220 V DC coil for dependable actuation in DC control circuits
- Four-pole design with 2NO and 2NC contact configuration
- Screw or 35 mm DIN rail mounting for flexible installation
- High insulation: Ui 690 V and Uimp 6 kV
- Wide operating temperature range from -50 to 70 °C
- Mechanical life rated 20,000,000 cycles for durability
- UL/CSA 15 HP at 480 V supports motor duty applications
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 670 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T2D220 four-pole contactor
- Product datasheet (PDF)
- Factory packaging
Applications
- AC-1 load switching in power distribution panels
- Motor control to 15 HP at 480 V (UL/CSA)
- Industrial control and automation panels
- HVAC and building services control circuits
- OEM machinery and equipment assemblies
Frequently Asked Questions
What is the coil voltage and type?
It has a DC coil rated at 220 V for DC control applications.
What current can this contactor carry?
It is rated Ith (AC1) at 45 A under IEC conditions.
How many poles and what contact configuration?
It is a four-pole contactor with 2NO and 2NC contacts.
How is the BF26T2D220 mounted?
It mounts via screw fixings or on a 35 mm DIN rail.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA equivalents.
Safety note: Install and service by qualified personnel. Isolate power before work, follow IEC/EN/BS 60947 guidance, tighten terminals to 2.5–3 Nm, and operate within specified environmental limits.
| Manufacturer Part Number | BF26T2D220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167151 |
| Coil Voltage | 220VDC |
