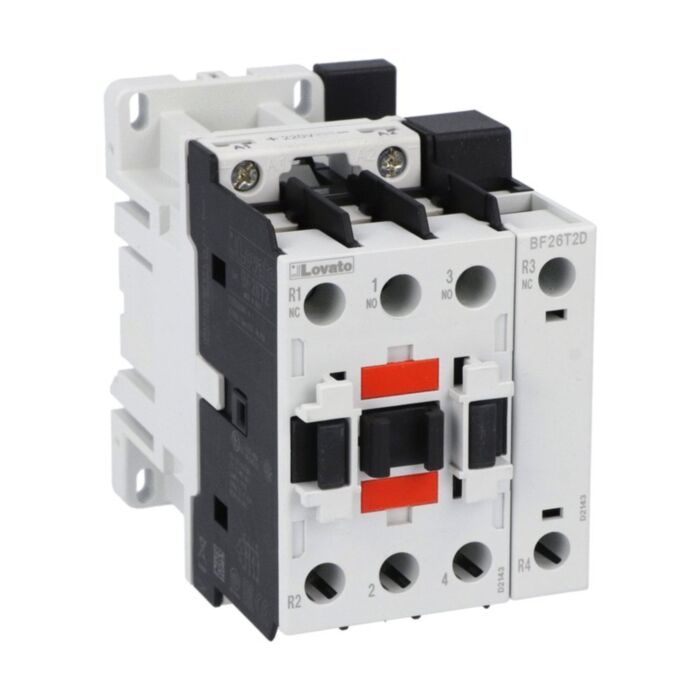

BF26T2D125 - 4P CONTACTOR 2NO+2NC 45A AC1 125VDC

Why Choose the BF26T2D125?

Engineered for dependable switching in demanding panels, the Lovato BF26T2D125 four-pole contactor combines a 125 V DC coil with 2NO/2NC main contacts to handle AC-1 loads up to 45 A. The BF26T2D125 delivers robust insulation with Ui 690 V and Uimp 6 kV, and installs easily using screw fixings or 35 mm DIN rail. Its compact BF26 platform helps streamline builds while maintaining high performance across diverse control applications.

Built for longevity, this BF26 series contactor offers a mechanical life of 20,000,000 cycles and reliable operation from -50 to 70 °C, up to 3000 m altitude. It carries UL/CSA recognition including a 15 HP rating at 480 V, and complies with IEC/EN/BS 60947-1 and 60947-4-1. With 2.5–3 Nm terminal torque and a practical 670 g build, it suits robust industrial panel and OEM use.

Key Benefits

• Reliable 45 A AC-1 switching for resistive load control.
• 125 V DC coil suits control panels with DC supplies.
• Four-pole, 2NO/2NC flexibility for versatile circuit configurations.
• Rated Ui 690 V and 6 kV impulse withstand for robust insulation.
• Long mechanical life of 20,000,000 cycles reduces maintenance.
• Screw or 35 mm DIN rail mounting simplifies installation.
• Operates from -50 to 70 °C for harsh environments.
• UL/CSA 15 HP at 480 V capability supports motor applications.

Technical Specification

• Product type designation: BF26
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 670 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF26T2D125 four-pole contactor
• Installation and safety instructions
• Manufacturer datasheet (PDF download)

Applications

• Resistive load switching in AC-1 duty up to 45 A
• Motor control up to 15 HP at 480 V (UL/CSA)
• Industrial panels using 125 V DC control coils
• Power distribution and lighting circuits requiring four-pole switching
• Systems needing mixed 2NO/2NC contact arrangements

Safety note: Installation must be performed by qualified personnel. Isolate all power, follow IEC/EN/BS 60947 requirements and the manufacturer’s instructions, and tighten terminals to the specified torque.
