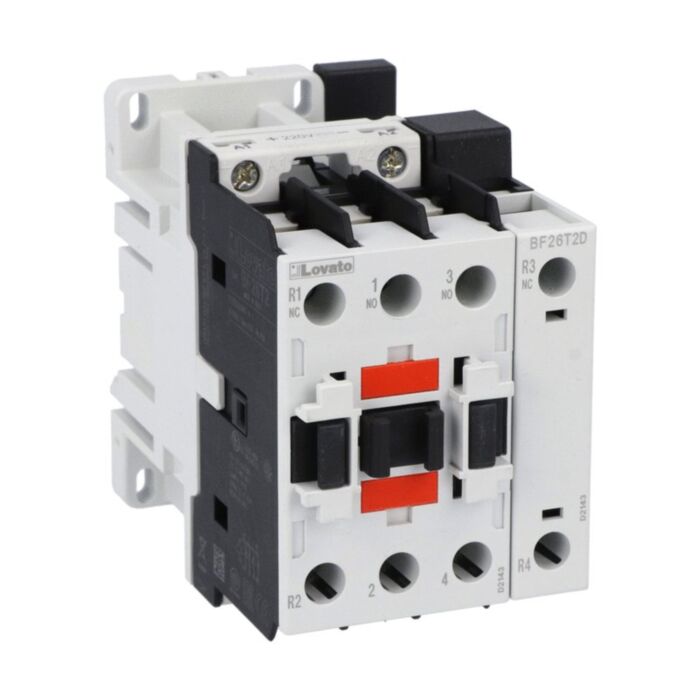

BF26T2D048 - 4P CONTACTOR 2NO+2NC 45A AC1 48VDC
MPN: BF26T2D048
Special Price
£162.66
£135.55
Regular Price
£271.09
Why Choose the BF26T2D048?
The Lovato BF26T2D048 is a robust four-pole contactor for reliable switching of AC-1 loads. Featuring a 48 VDC coil and a 2NO/2NC configuration, this unit delivers an IEC AC-1 Ith of 45 A. Rated insulation voltage is 690 V with 6 kV impulse withstand, and installation is simple via screw fixing or 35 mm DIN rail. SKU BF26T2D048 suits control panels requiring dependable, standards-compliant performance.
Built for longevity with 20,000,000 mechanical operations, the BF26 series contactor operates from -50 to 70 °C and up to 3000 m altitude, Pollution Degree 3. It carries 15 HP at 480 V under UL/CSA ratings and meets IEC/EN/BS 60947-1 and 60947-4-1. Secure wiring with 2.5–3 Nm terminal torque, and benefit from a manageable 670 g construction.
Key Benefits
- Four-pole, 2NO/2NC versatility for diverse control circuits.
- 45 A AC-1 rating ensures dependable resistive load switching.
- 48 VDC coil suits common DC control systems.
- Simple screw or 35 mm DIN rail mounting.
- High insulation: Ui 690 V and Uimp 6 kV.
- Long mechanical life rated at 20,000,000 cycles.
- Wide operating range from -50 to 70 °C.
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 670 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T2D048 four-pole contactor (2NO/2NC)
- Integrated 48 VDC coil
- Manufacturer product datasheet (PDF download)
Applications
- Switching AC-1 resistive loads up to 45 A.
- Control panels using 48 VDC coil signalling.
- Industrial automation and power distribution assemblies.
- HVAC, pumps and fans within listed horsepower ratings.
- Lighting and heating circuits requiring four-pole isolation.
Frequently Asked Questions
What is the coil voltage of the Lovato BF26T2D048 contactor?
The coil is DC and rated at 48 VDC.
How many poles and what contact arrangement does it provide?
It is a four-pole device with a 2NO and 2NC configuration.
What mounting options are available?
It can be mounted with screws or on a 35 mm DIN rail.
What is the IEC AC-1 current rating?
The IEC AC-1 Ith is 45 A.
Which standards does the BF26T2D048 comply with?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA C22.2 No. 60947-1/-4-1.
Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 2.5–3 Nm, and operate within the specified environmental limits.
| Manufacturer Part Number | BF26T2D048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167113 |
| Coil Voltage | 48VDC |
