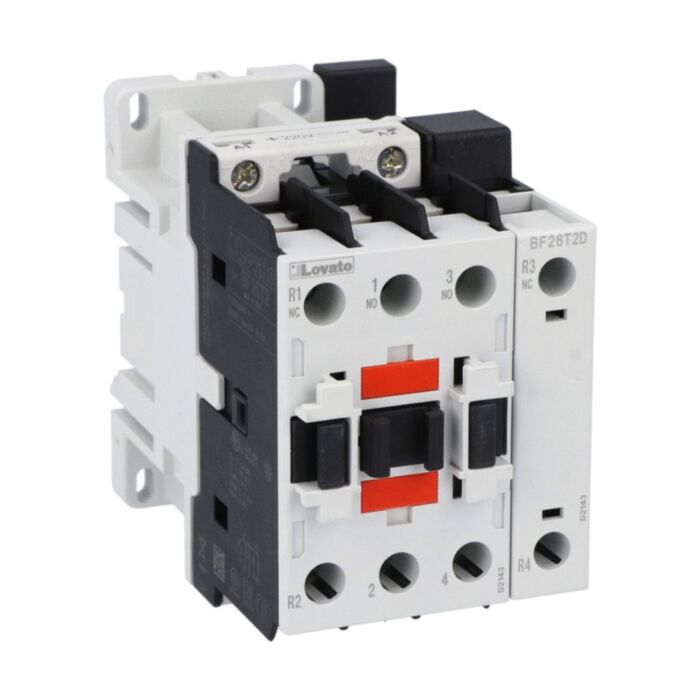

BF26T2D024 - 4P CONTACTOR 2NO+2NC 45A AC1 24VDC
MPN: BF26T2D024
Special Price
£162.66
£135.55
Regular Price
£271.09
Why Choose the BF26T2D024?
Lovato BF26T2D024 is a four-pole contactor engineered for dependable control of AC1 loads. A 24 V DC coil drives 2NO and 2NC contacts, offering flexible wiring in panels and machinery. With an IEC Ith of 45 A, Ui of 690 V and 6 kV impulse withstand, it handles demanding duties. Convenient screw or 35 mm DIN rail mounting speeds installation and maintenance.
Built for longevity, the BF26 platform delivers a mechanical life of 20,000,000 cycles and operates from -50 to 70 °C, up to 3000 m altitude, Pollution Degree 3. It conforms to IEC/EN/BS 60947 and UL/CSA requirements and is rated 15 HP at 480 V. Terminal screws tighten to 2.5–3 Nm, and the 660 g assembly supports robust, repeatable performance in industrial environments.
Key Benefits
- 45 A AC1 Ith rating for dependable power switching
- Four-pole, 2NO + 2NC contacts for flexible control schemes
- 24 V DC coil for reliable, low-voltage control circuits
- High insulation: Ui 690 V and 6 kV impulse withstand
- Wide operating range: -50 to 70 °C, up to 3000 m
- Long mechanical life: 20,000,000 cycles reduces maintenance
- Versatile screw or 35 mm DIN rail mounting
- Complies with IEC/EN/BS, UL and CSA standards
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 660 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T2D024 four-pole contactor
- Manufacturer installation and safety instructions
- Product datasheet and conformity information
Applications
- Motor control and starters up to 15 HP at 480 V
- Switching AC1 resistive loads in industrial panels
- HVAC fans, pumps and compressors control circuits
- Power distribution and lighting control assemblies
- OEM machinery and process control cabinets
Frequently Asked Questions
What is the coil voltage and type?
It has a 24 V DC coil (DC coil).
How many poles and what contact arrangement does it have?
It is a four-pole device with 2NO and 2NC contacts.
How can the contactor be mounted?
It can be screw mounted or clipped onto a 35 mm DIN rail.
What are the key electrical ratings?
IEC Ith (AC1) is 45 A, Ui is 690 V, and Uimp is 6 kV.
What standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA equivalents.
Safety note: Installation and maintenance must be performed by qualified personnel with the supply isolated. Observe the specified terminal tightening torque of 2.5–3 Nm and comply with all applicable wiring standards and environmental ratings.
| Manufacturer Part Number | BF26T2D024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167106 |
| Coil Voltage | 24VDC |
