BF26T2A46060 - 4P CONTACTOR 2NO+2NC 45A 230V 60HZ

Why Choose the BF26T2A46060?

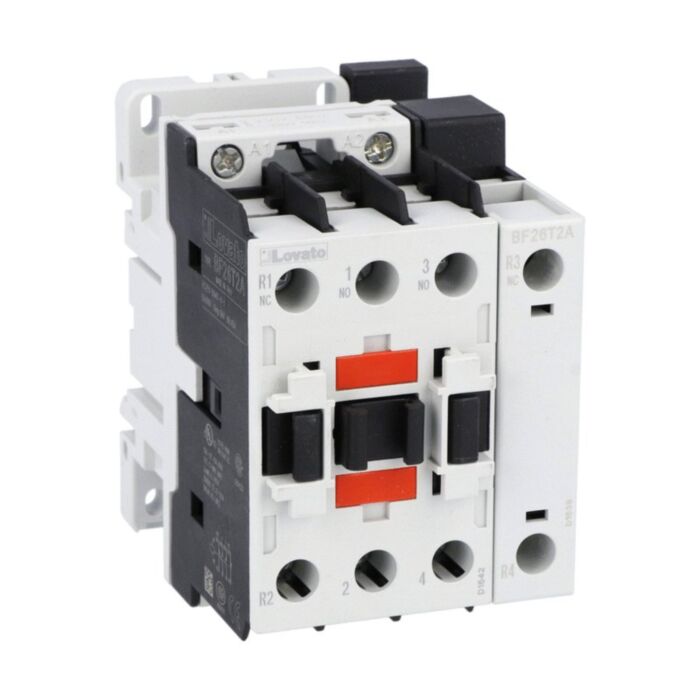

The Lovato BF26T2A46060 four-pole contactor delivers dependable switching for industrial control and power distribution. With an IEC AC-1 thermal current Ith of 45 A, a 460 VAC 60 Hz AC coil, and a versatile 2NO/2NC contact arrangement, it suits a wide range of resistive and motor loads. Mounting is flexible via screws or 35 mm DIN rail, and a UL/CSA 15 HP rating at 480 V supports common motor starter duties.

Engineered for endurance, the BF26 series offers 690 V rated insulation and 6 kV impulse withstand for reliable isolation. A mechanical life of 20,000,000 cycles, -50 to 70 °C operating range, and use up to 3000 m altitude ensure performance in harsh environments. Conformance to IEC/EN/BS 60947-1/-4-1 and UL/CSA standards underpins safety, while screw terminals accept 2.5–3 Nm tightening torque.

Key Benefits

• Four-pole design with 2NO and 2NC for flexible circuit control.
• 45 A AC-1 Ith handles robust resistive load switching reliably.
• 460 VAC 60 Hz AC coil suits common industrial control voltages.
• Screw or 35 mm DIN rail mounting enables quick, tidy installation.
• 690 V insulation and 6 kV impulse withstand enhance safety margins.
• Mechanical life of 20,000,000 cycles minimises maintenance downtime.
• Operates from −50 to 70 °C for harsh environmental conditions.
• UL/CSA 15 HP at 480 V supports motor starter applications.

Technical Specification

• Product type designation: BF26
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 518 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF26T2A46060 four-pole contactor
• Manufacturer datasheet (PDF link)
• Protective packaging
• Basic installation and safety information

Applications

• Motor starters up to 15 HP at 480 V (UL/CSA)
• Resistive load switching (AC-1) up to 45 A
• HVAC, pumping and fan control panels
• Power distribution and lighting control circuits
• Industrial automation and machinery control

Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 2.5–3 Nm, and operate within the stated electrical and environmental ratings.
