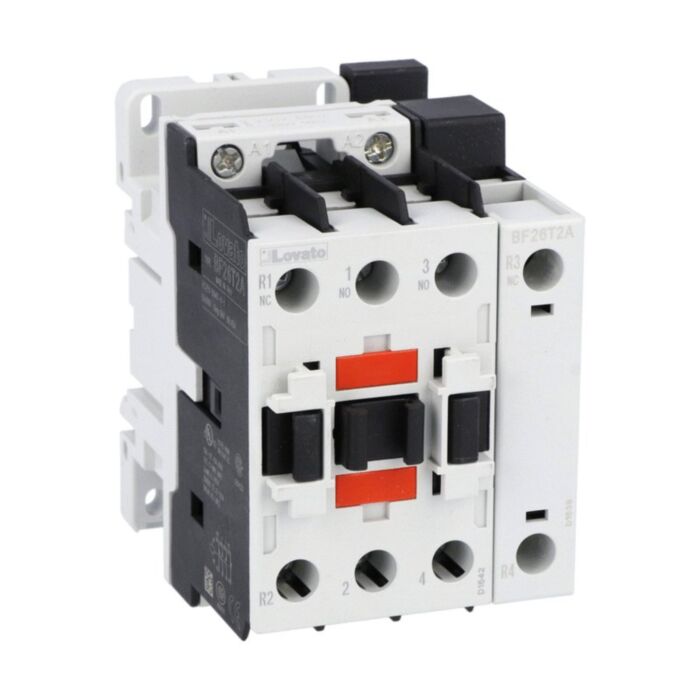

BF26T2A23060 - 4P CONTACTOR 2NO+2NC 45A 230V 60HZ

Why Choose the BF26T2A23060?

Engineered for reliable control, the Lovato BF26T2A23060 is a four-pole contactor for AC1 duties. It provides 45 A IEC operating current with a 230 VAC 60 Hz coil and a flexible 2NO + 2NC configuration. Fast screw or 35 mm DIN rail mounting simplifies panel work, while the BF26 series design ensures consistent operation in control cabinets, HVAC panels and automation equipment.

Built for compliance and endurance, it meets IEC/EN/BS 60947-1 and 60947-4-1 plus UL and CSA approvals. Rated Ui 690 V with 6 kV impulse withstand, it offers a mechanical life of 20,000,000 cycles. Operates from -50 to 70 °C up to 3000 m altitude, pollution degree 3, and carries a 15 HP rating at 480 V under UL/CSA.

Key Benefits

• 45 A AC1 rating under IEC for robust resistive load switching.
• 230 VAC 60 Hz coil simplifies control circuit compatibility and sourcing.
• 2NO + 2NC contacts enable flexible interlocking and control schemes.
• Screw or 35 mm DIN rail mounting speeds safe panel installation.
• High insulation rating Ui 690 V and 6 kV impulse withstand.
• Wide -50 to 70 °C operating range for harsh environments.
• Long 20,000,000-cycle mechanical life reduces maintenance interventions.
• Conforms to IEC/EN/BS, UL, and CSA standards for compliance.

Technical Specification

• Product type designation: BF26
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 504 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF26T2A23060 four-pole contactor
• Pre-fitted 230 VAC 60 Hz AC coil
• Manufacturer documentation (downloadable datasheet)

Applications

• AC1 resistive load switching up to 45 A per IEC.
• Motor control circuits with 15 HP rating at 480 V (UL/CSA).
• Control panels, distribution boards, and automation cabinets.
• HVAC and building services equipment control.
• Pumping, fans, and general industrial machinery switching.

Safety note: Install and commission only by qualified personnel. Isolate power before work and observe the stated torque, environmental ratings, and applicable standards.
