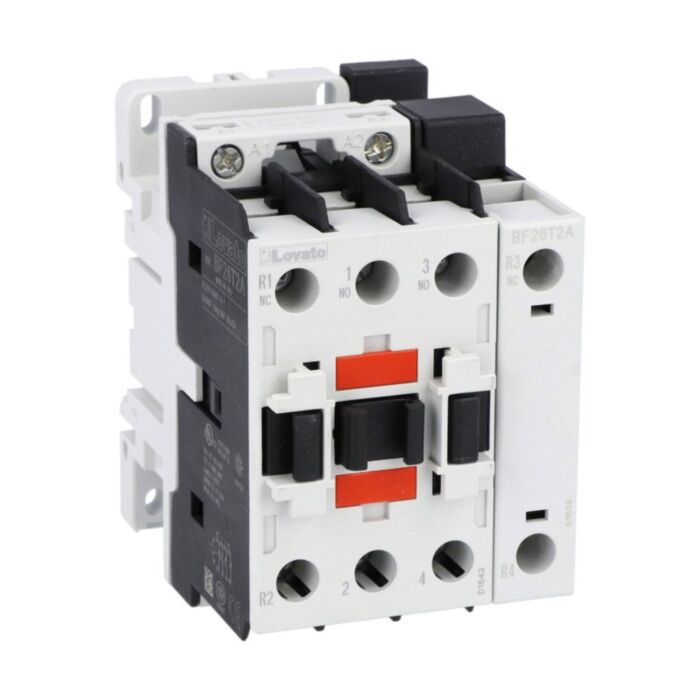

BF26T2A22060 - 4P CONTACTOR 2NO+2NC 45A 220V 60HZ

Why Choose the BF26T2A22060?

Engineered for dependable control, the Lovato BF26T2A22060 four‑pole contactor delivers robust switching for industrial and commercial panels. With a 45 A AC‑1 rating, 2NO/2NC configuration and a 220 V AC 60 Hz coil, it handles resistive loads and UL/CSA motor duties up to 15 HP at 480 V. Versatile screw or 35 mm DIN rail mounting speeds installation and service.

Built to last, the BF26 platform offers high electrical endurance with 20,000,000 mechanical life cycles, Ui 690 V and 6 kV impulse withstand for insulation robustness. Rated for -50 to 70 °C operation and installation up to 3000 m, Pollution Degree 3, it meets IEC/EN/BS 60947 and UL/CSA standards. Lovato sustainability certification supports responsible specification.

Key Benefits

• Four‑pole, 2NO/2NC flexibility for varied control and power circuits.
• 45 A AC‑1 rating for dependable resistive load switching.
• 220 V AC 60 Hz coil simplifies integration with common control supplies.
• Screw or 35 mm DIN rail mounting enables quick, tidy installation.
• Ui 690 V and Uimp 6 kV enhance insulation and surge robustness.
• 20,000,000 mechanical life cycles support long service and uptime.
• UL/CSA motor duty up to 15 HP at 480 V.

Technical Specification

• Product type designation: BF26
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 502 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF26T2A22060 four‑pole contactor
• Installation instructions
• Manufacturer datasheet (downloadable)
• Protective packaging

Applications

• AC‑1 resistive load switching up to 45 A
• Motor loads up to 15 HP at 480 V (UL/CSA)
• Industrial control panels and automation systems
• Power distribution, isolation and changeover circuits
• Equipment operating in harsh temperatures and up to 3000 m altitude

Safety note: Installation and servicing must be performed by qualified personnel. Isolate power before work, observe 2.5–3 Nm terminal torque, and operate within the stated environmental ratings and relevant standards.
